12085.3 One-Touch Flex Locator Bushings

Name: 12085.W0506
Brand: WC
SKU: 12085.W0506
Price: 57.25 EUR
Availability: OutOfStock

material: Steel

Article properties

Order No.

12085.W0506

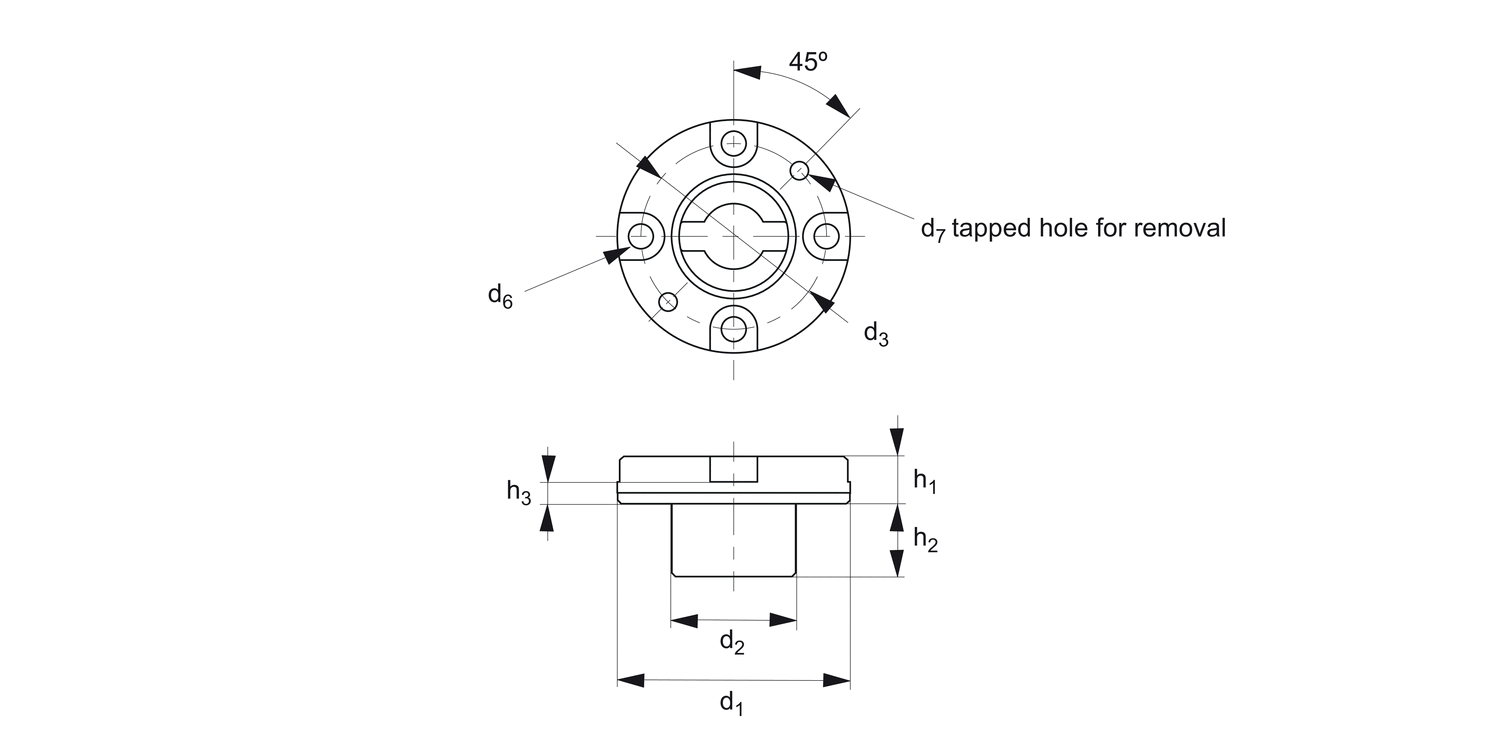

Size

d₁

d₂

12.5

d₃

21.5

d₄

13.5

d₅

d₆

3.4

d₇

M 3x0,5

h₁

5.5

h₂

h₃

h₄

h₅

Weight g

See full product selection

£ 57.25 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 57.25	0%
10-19	£ 51.53	10%
20-49	£ 48.66	15%
50-99	£ 45.80	20%
100+	£ 40.08	30%

Download product datasheet

Technical & Application

Material

Stainless steel (AISI 304, 1.4301).

Technical Notes

Clamping plates for spiral cam clamp, part no. 12108. Use plates to avoid any deformation to workpiece during clamping.
