XYZ Xpansion Pins
press-fit

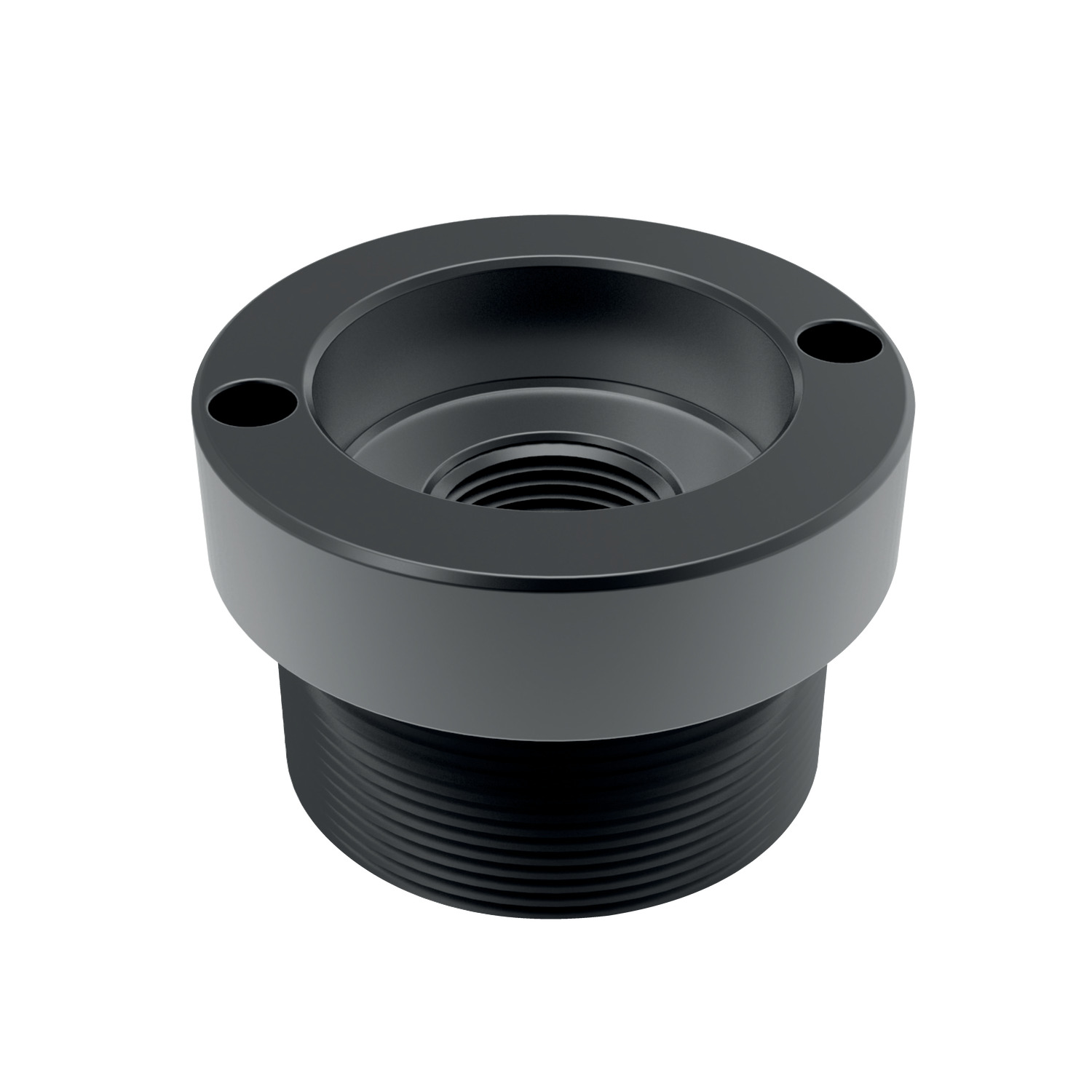

12097.2 Face Mount Receivers - Compact
material: Steel
Order No.
12097.W2351
d1
+0.010|-0.000
mm
35
d2
inch
3/4-10
d3
inch
2.1250
d4
UNF-2B
1-1/2-12
d5
+0.0004|-0.0000
inch
2.1254
h1
min.
inch
1-5/16
h2
+0.010|-0.005
inch
,630
£ 200.88 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 200.88 | 0% |
| 5-9 | £ 190.84 | 5% |
| 10-19 | £ 180.79 | 10% |
| 20-49 | £ 170.75 | 15% |
| 50+ | £ 150.66 | 25% |
Technical & Application
Material
Heat-treated steel alloy with black oxide finish. High tensile strength (180 000 PSI or 1241 MPa) and hardness (50-52 HRc).
Technical Notes
Precision machined to ±,0002" tol. Repeatability of ,0004" or better.
Compact face mount design optimises subplate space, is easier to install, stronger and less expensive than standard face mount receivers.
