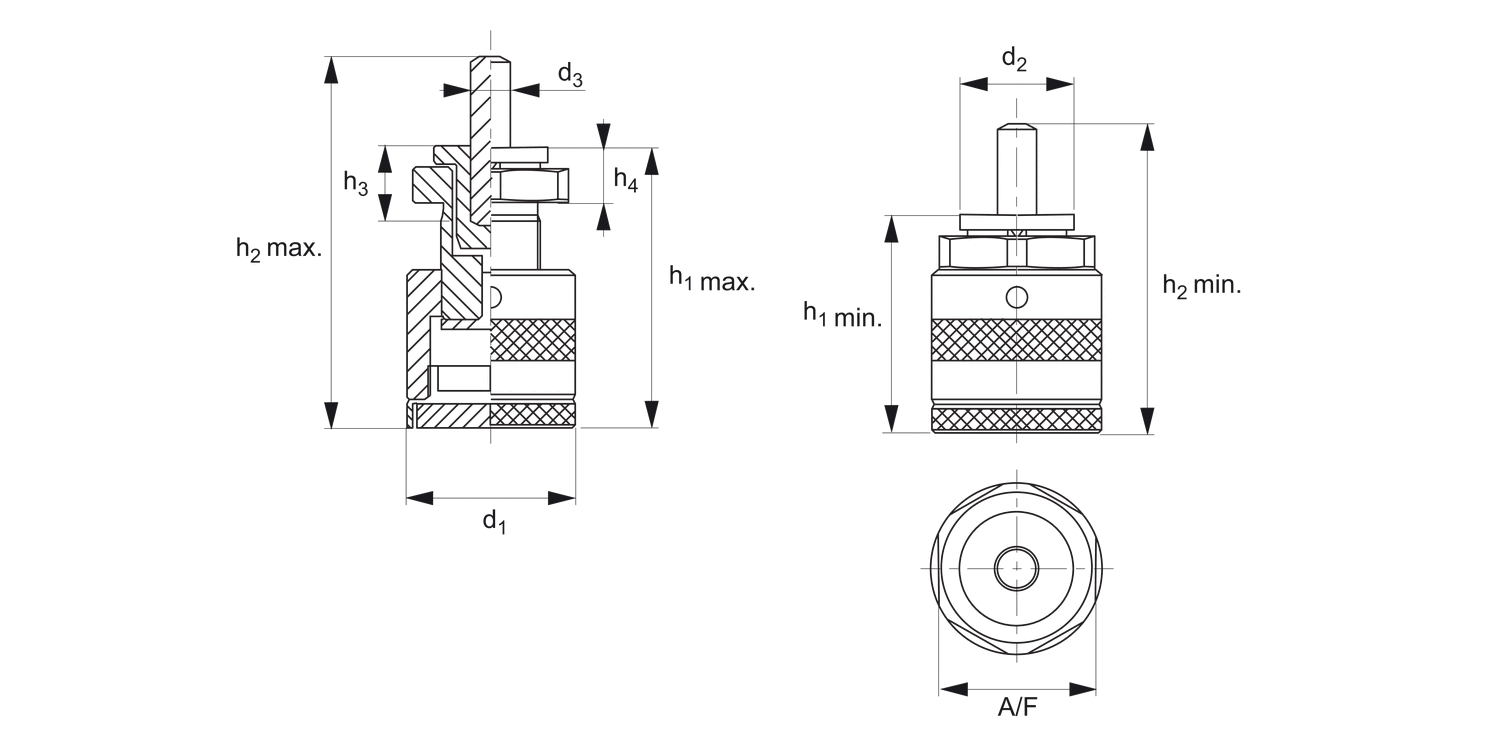

15220 Height Setting Screw Jacks
magnetic base and locating pins, material: Carbon steel
Order No.
15220.W0011
h1
min.
85
h1
max.
125
h3
22
h4
16.5
d1
50
d2
34
d3
12
A/F
46
Static load
max.
kN
30
With locating pins 12x80 h2 min. - h2
max.
142 - 182
With locating pins 12x50 h2 min. - h2
max.
112 - 152
Weight
g
1000
£ 351.47 per unit (click for quantity discounts)
Ready to despatch 1
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 351.47 | 0% |
| 3-4 | £ 316.32 | 10% |
| 5-9 | £ 298.75 | 15% |
| 10-19 | £ 281.18 | 20% |
| 20+ | £ 263.60 | 25% |
Technical & Application
Material
Body: steel, tempered.
Base: magnetic.
Spindle: M30x1,5 fine thread with end stop.
Technical Notes
With 2 locating pins (Ø12x50 and Ø12x80). Centering hole Ø12mm. The M30x1.5 fine thread makes precise adjustment possible whilst also preventing the workpiece from turning.
See technical pages for the table of locating pad and support locating element compatibility.
Tips
A bearing insert prevents the workpiece from turning whilst the jack is adjusted. These screw jacks can be placed on other screw jacks (using a centering pad) to build up heights of up to 1370mm.
