Screw Jack
aluminium
15002 Screw Jacks
threaded M12 centering hole, material: Steel
Alternative products you may wish to consider
Type
Medium Duty
Size
52
h1
min.
42
h1
max.
52
d1
50
d2
50
d3
M12
d4
30x4
d5
M38x2
Static load
max.
kN
100
Weight
g
550
£ 75.77 per unit (click for quantity discounts)
Type
Medium Duty
Size
70
h1
min.
50
h1
max.
70
d1
50
d2
50
d3
M12
d4
30x4
d5
M38x2
Static load
max.
kN
100
Weight
g
620
£ 89.56 per unit (click for quantity discounts)
Type
Medium Duty
Size
100
h1
min.
70
h1
max.
100
d1
50
d2
50
d3
M12
d4
30x4
d5
M38x2
Static load
max.
kN
100
Weight
g
948
£ 92.62 per unit (click for quantity discounts)
Type
Size
h1
min.
h1
max.
d1
d2
d3
d4
d5
Static load
max.
kN
Weight
g

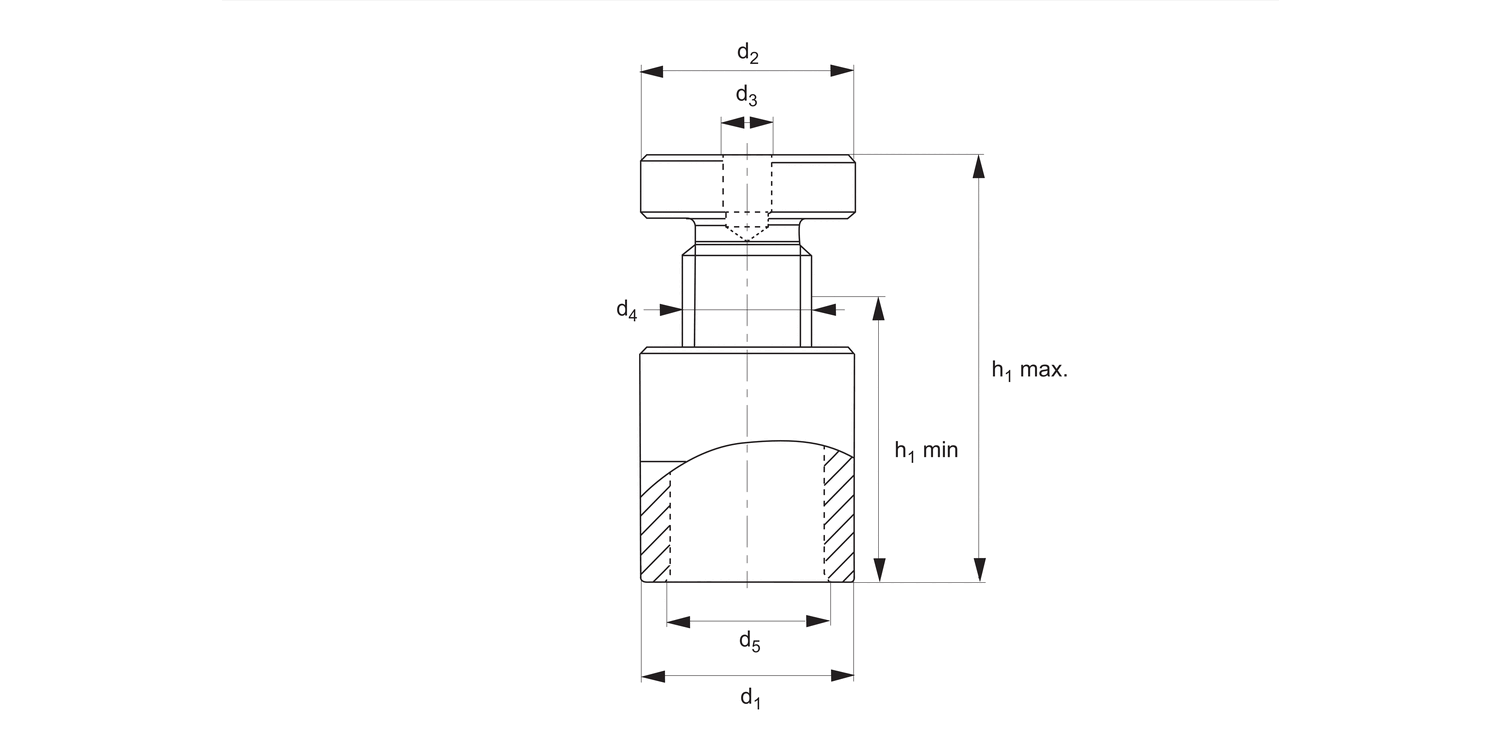

| Price & Availability | Article | Type | Size | h1 min. | h1 max. | d1 | d2 | d3 | d4 | d5 | Static load max. kN | Weight g | ||||||||||||||||||
| 15002.W0052 | Medium Duty | 52 | 42 | 52 | 50 | 50 | M12 | 30x4 | M38x2 | 100 | 550 | |||||||||||||||||||
£ 75.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Medium Duty Size 52 h1
min. 42 h1
max. 52 d1 50 d2 50 d3 M12 d4 30x4 d5 M38x2 Static load
max.
kN 100 Weight
g 550 | ||||||||||||||||||||||||||||||
| 15002.W0070 | Medium Duty | 70 | 50 | 70 | 50 | 50 | M12 | 30x4 | M38x2 | 100 | 620 | |||||||||||||||||||
£ 89.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Medium Duty Size 70 h1
min. 50 h1
max. 70 d1 50 d2 50 d3 M12 d4 30x4 d5 M38x2 Static load
max.
kN 100 Weight
g 620 | ||||||||||||||||||||||||||||||
| 15002.W0100 | Medium Duty | 100 | 70 | 100 | 50 | 50 | M12 | 30x4 | M38x2 | 100 | 948 | |||||||||||||||||||
£ 92.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Medium Duty Size 100 h1
min. 70 h1
max. 100 d1 50 d2 50 d3 M12 d4 30x4 d5 M38x2 Static load
max.
kN 100 Weight
g 948 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Body: carbon steel, enamelled.
Spindle: trapezoidal thread, self-locking with end stop.
Technical Notes
The threaded centering hole (M12) on the top surface of the screw jack enables secure fixing of support accessories 15042 and 15062, whilst the M38x2 base thread allows expansion of the screw jack height.
Tips
For table of support and locating element compatibility see technical pages.
Important Notes
Do not adjust screw jack when under load.
