Screw Jack
aluminium

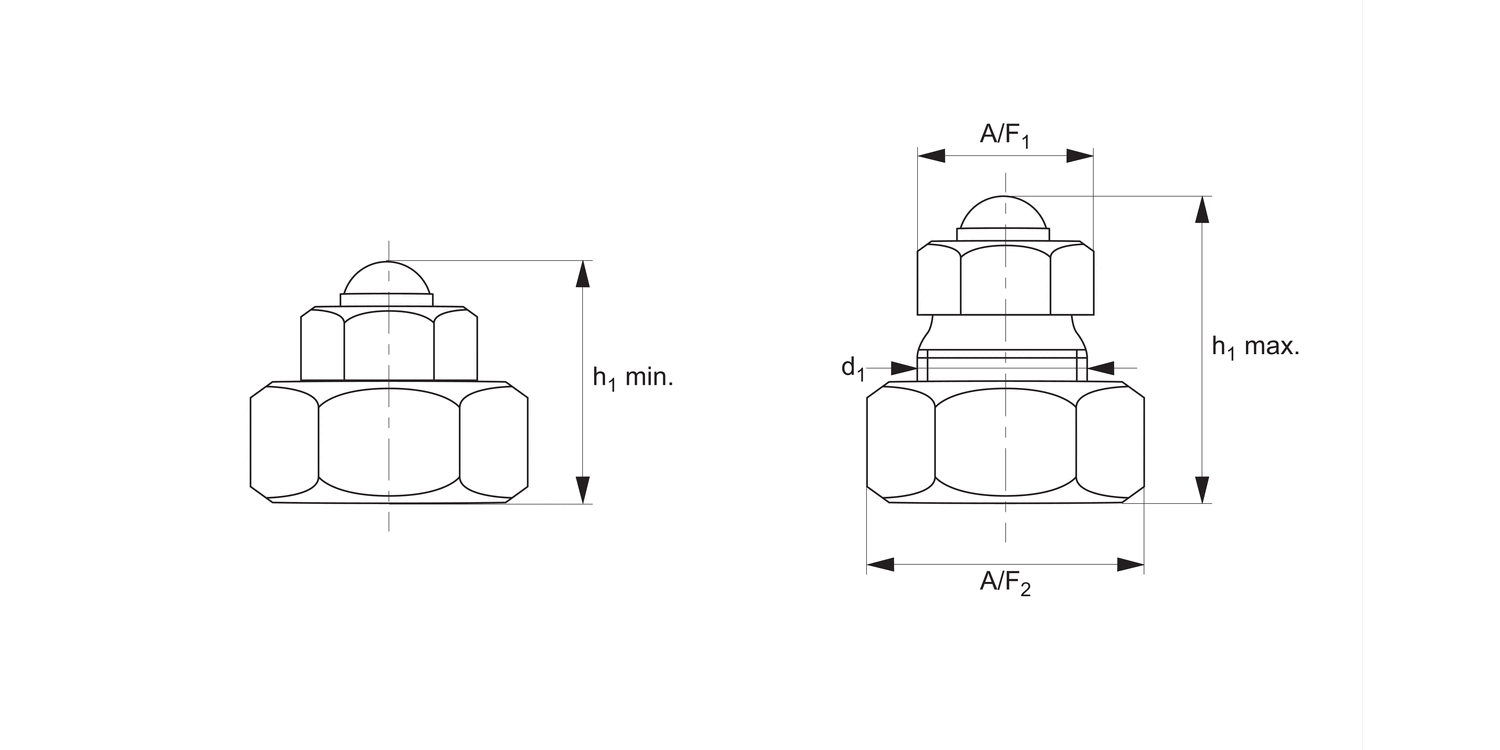

15520 Height Setting Screw Jack
with pivoting ball, material: Hardened steel
Alternative products you may wish to consider
Size
70
h1
min.
56
h1
max.
70
d1
39x3
A/F1
41
A/F2
60
Static load
max.
kN
30
Weight
g
950
£ 88.79 per unit (click for quantity discounts)
Size
h1
min.
h1
max.
d1
A/F1
A/F2
Static load
max.
kN
Weight
g
| Price & Availability | Article | Size | h1 min. | h1 max. | d1 | A/F1 | A/F2 | Static load max. kN | Weight g | |||||||||||||||
| 15520.W0070 | 70 | 56 | 70 | 39x3 | 41 | 60 | 30 | 950 | ||||||||||||||||
£ 88.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 70 h1
min. 56 h1
max. 70 d1 39x3 A/F1 41 A/F2 60 Static load
max.
kN 30 Weight
g 950 | ||||||||||||||||||||||||
Technical & Application
Material
Body: steel, tempered, burnished.
Ball: steel, hardened.
Technical Notes

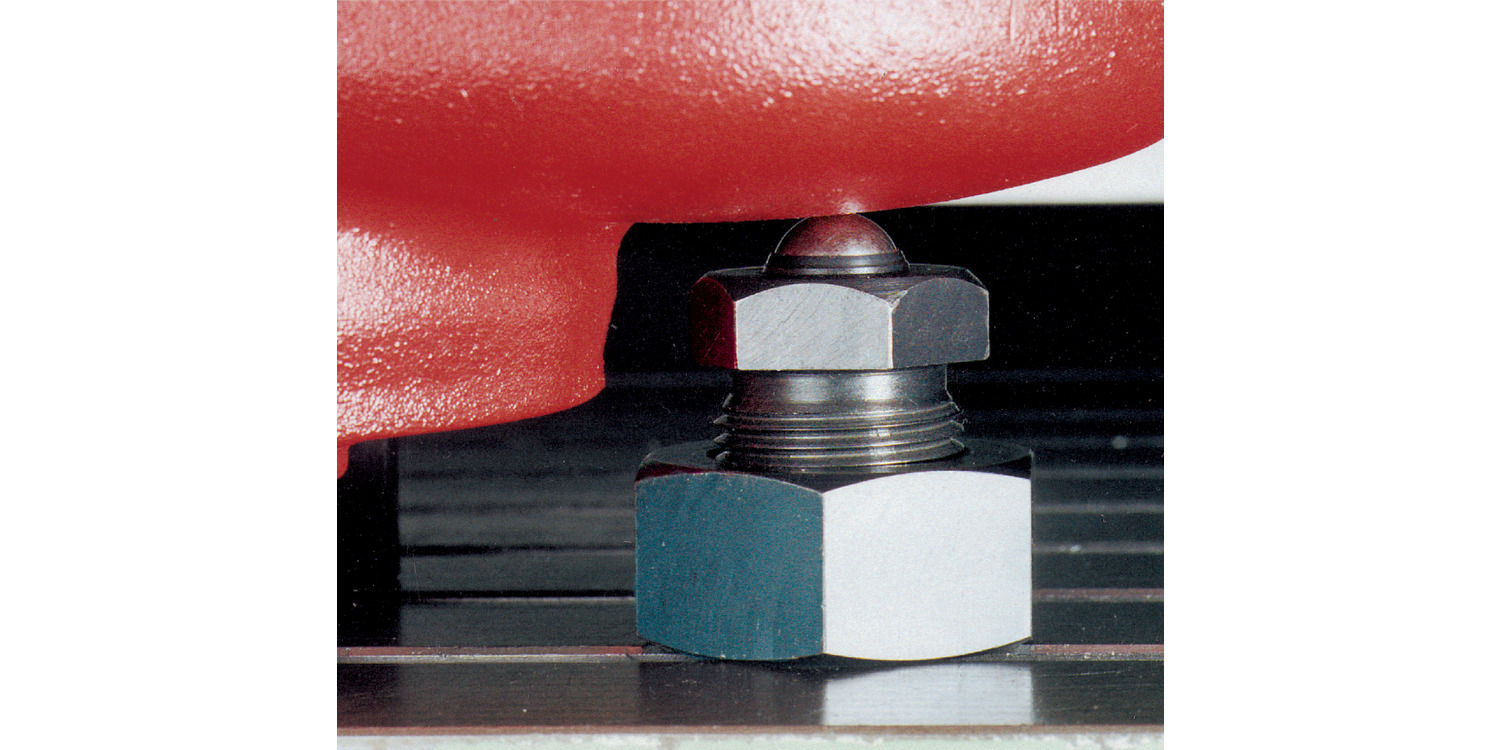

Used as a point support, this heavy-duty screw jack is designed to support and align cast iron or forged components. Alignment can be made to 0,1mm.
Tips
The pivoting ball minizises the friction and reduces the required operating forces. The use of a point-type support reduces the transmission of turning forces generated by the machine spindle.
