17008 Cylindrical Workpiece Supports

Name: 17008.W0070
Brand: WC
SKU: 17008.W0070
Price: 141.93 EUR
Availability: OutOfStock

material: Steel

Article properties

Order No.

17008.W0070

Type

Cap screw

h₁

h₂

47.0

d₁

d₂

d₃

d₄

M16x32

Weight g

1390

d₅

M12x30

d₆

M16

l₁

l₂

26.5

Piston spring force N

15~35

Stroke s₁

Support capacity max. kN

9.0

Torque to max. Nm

25.0

A/F

See full product selection

£ 141.93 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 141.93	0%
10-19	£ 127.74	10%
20-49	£ 120.64	15%
50-99	£ 113.54	20%
100+	£ 99.35	30%

Download product datasheet

Technical & Application

Material

Body: steel (C45), black oxide finish.
Piston: steel (C45), tempered, black oxide finish.

Technical Notes

The positive locking mechanism allows the cap screw style to offer high support capacities.

Tips

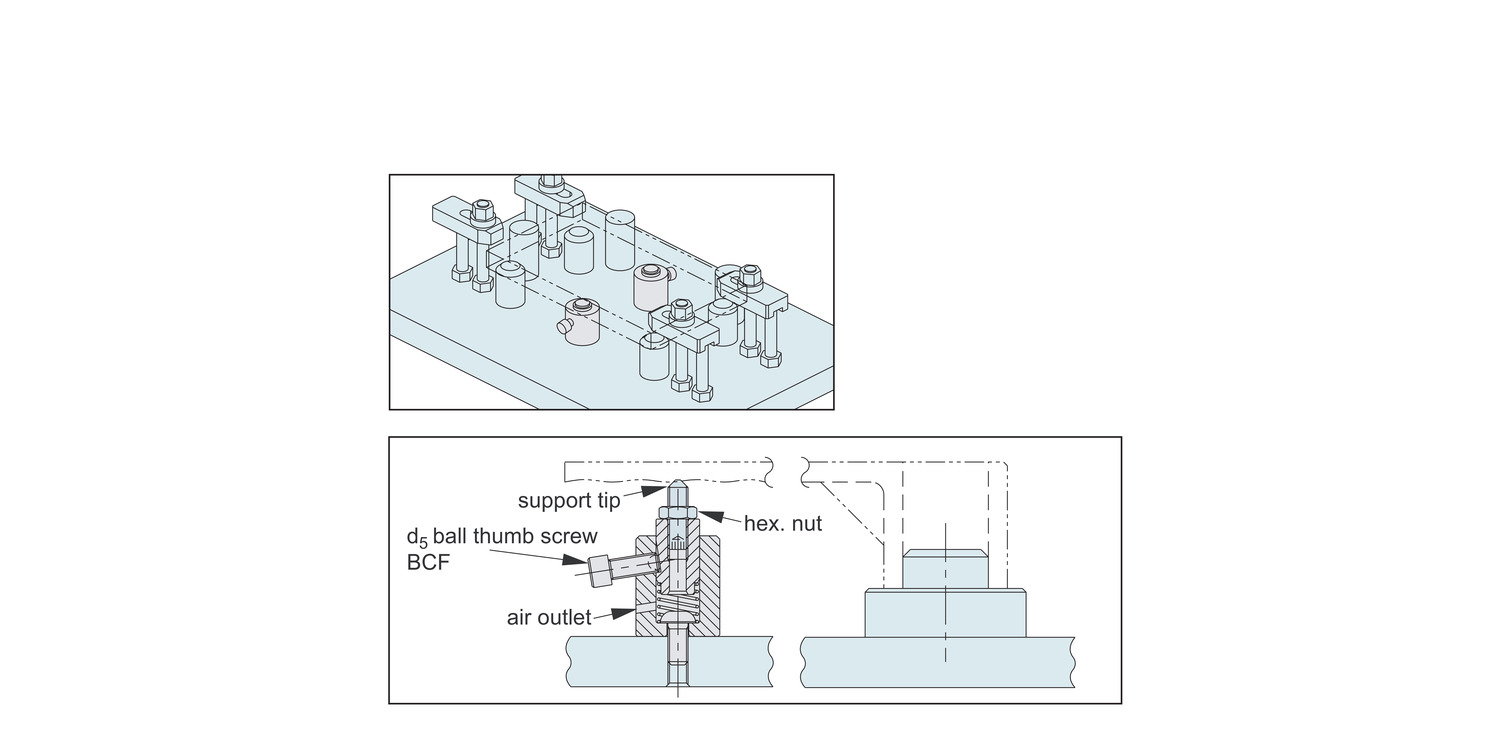

When you attach a support tip to the tapped hole through the shaft, tighten the shaft and secure it to prevent damage.
