Anti-vib. Supports

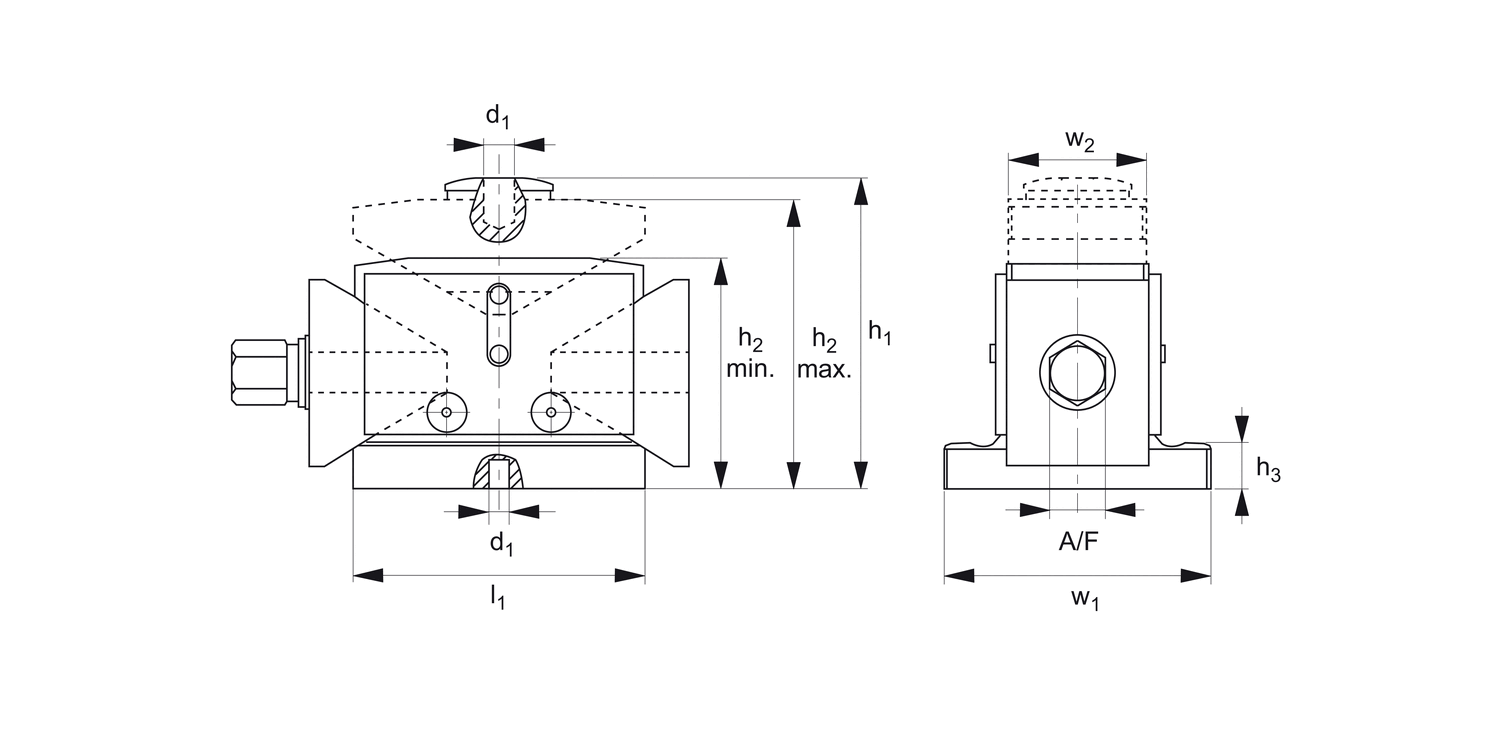

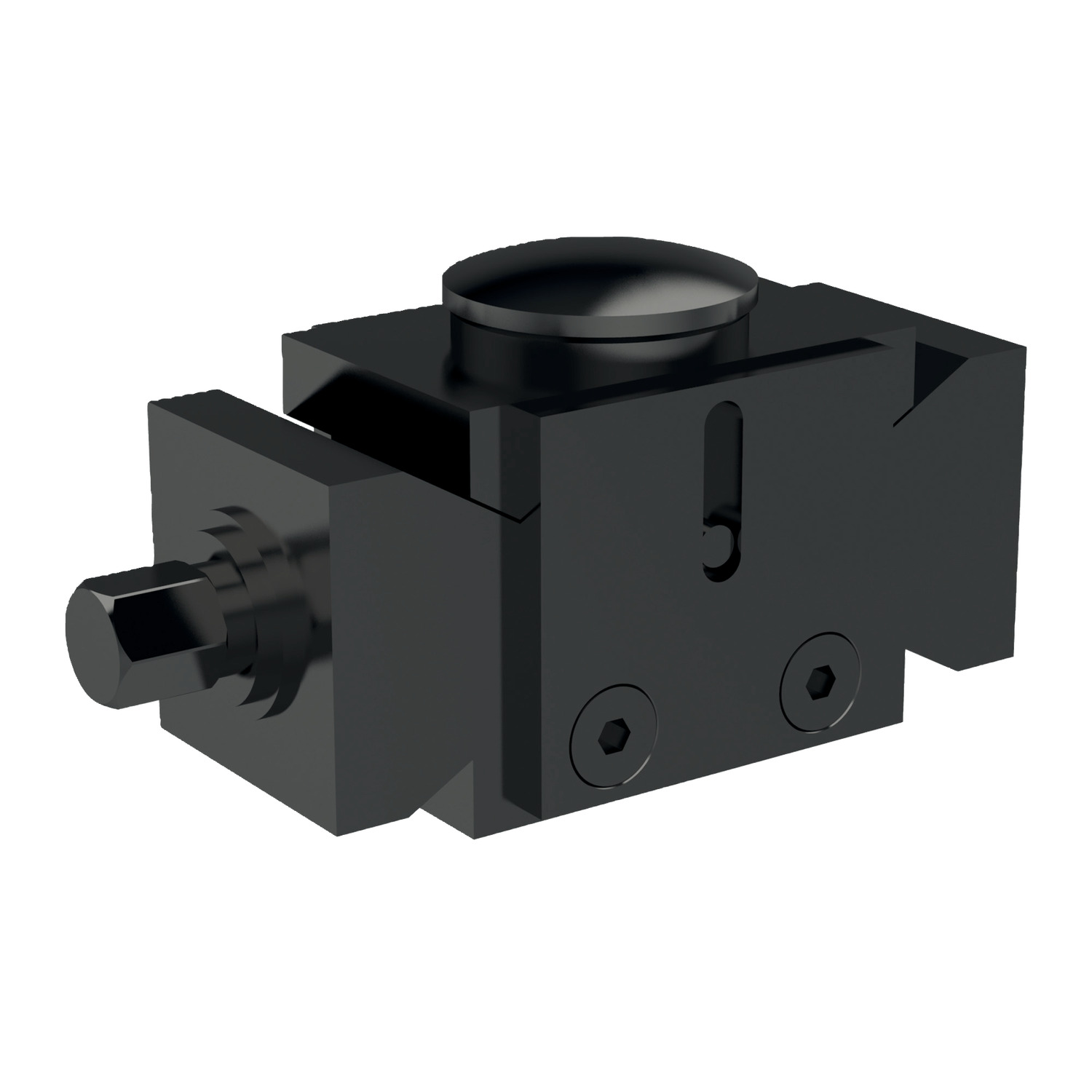

15500 Wedge Blocks
heavy duty positioning, material: Cast iron
Alternative products you may wish to consider
Size
63
w1
63
h1
80
h2
min.
50
h2
max.
68
d1
12
h3
7
l1
63
Static load
max.
kN
40
w2
40
A/F
13
Adj./ 360°
0.86
Weight
g
1700
£ 521.55 per unit (click for quantity discounts)
Size
125
w1
115
h1
135
h2
min.
100
h2
max.
125
d1
12
h3
20
l1
125
Static load
max.
kN
100
w2
60
A/F
24
Adj./ 360°
1.16
Weight
g
8600
£ 1,071.61 per unit (click for quantity discounts)
Size
190
w1
145
h1
200
h2
min.
170
h2
max.
190
d1
12
h3
20
l1
175
Static load
max.
kN
250
w2
80
A/F
36
Adj./ 360°
2.02
Weight
g
23750
£ 2,862.31 per unit (click for quantity discounts)
Size
w1
h1
h2
min.
h2
max.
d1
h3
l1
Static load
max.
kN
w2
A/F
Adj./ 360°
Weight
g
| Price & Availability | Article | Size | w1 | h1 | h2 min. | h2 max. | d1 | h3 | l1 | Static load max. kN | w2 | A/F | Adj./ 360° | Weight g | ||||||||||||||||||
| 15500.W0006 | 63 | 63 | 80 | 50 | 68 | 12 | 7 | 63 | 40 | 40 | 13 | 0.86 | 1700 | |||||||||||||||||||
£ 521.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 63 w1 63 h1 80 h2
min. 50 h2
max. 68 d1 12 h3 7 l1 63 Static load
max.
kN 40 w2 40 A/F 13 Adj./ 360° 0.86 Weight
g 1700 | ||||||||||||||||||||||||||||||||
| 15500.W0012 | 125 | 115 | 135 | 100 | 125 | 12 | 20 | 125 | 100 | 60 | 24 | 1.16 | 8600 | |||||||||||||||||||
£ 1,071.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 125 w1 115 h1 135 h2
min. 100 h2
max. 125 d1 12 h3 20 l1 125 Static load
max.
kN 100 w2 60 A/F 24 Adj./ 360° 1.16 Weight
g 8600 | ||||||||||||||||||||||||||||||||
| 15500.W0016 | 190 | 145 | 200 | 170 | 190 | 12 | 20 | 175 | 250 | 80 | 36 | 2.02 | 23750 | |||||||||||||||||||
£ 2,862.31 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 190 w1 145 h1 200 h2
min. 170 h2
max. 190 d1 12 h3 20 l1 175 Static load
max.
kN 250 w2 80 A/F 36 Adj./ 360° 2.02 Weight
g 23750 | ||||||||||||||||||||||||||||||||
Technical & Application
Material
Spheroidal graphite, cast iron.
Heat treated and burnished.
Contact surfaces precision machined.
Technical Notes
Centering hole Ø12mm.
With loads up to 33% of the max. static load, adjustment is easily made with a turn of screw. Allows fine adjustment to 0.1mm.
See technical pages for the table of locating pad and support pad elements compatibility.
Tips

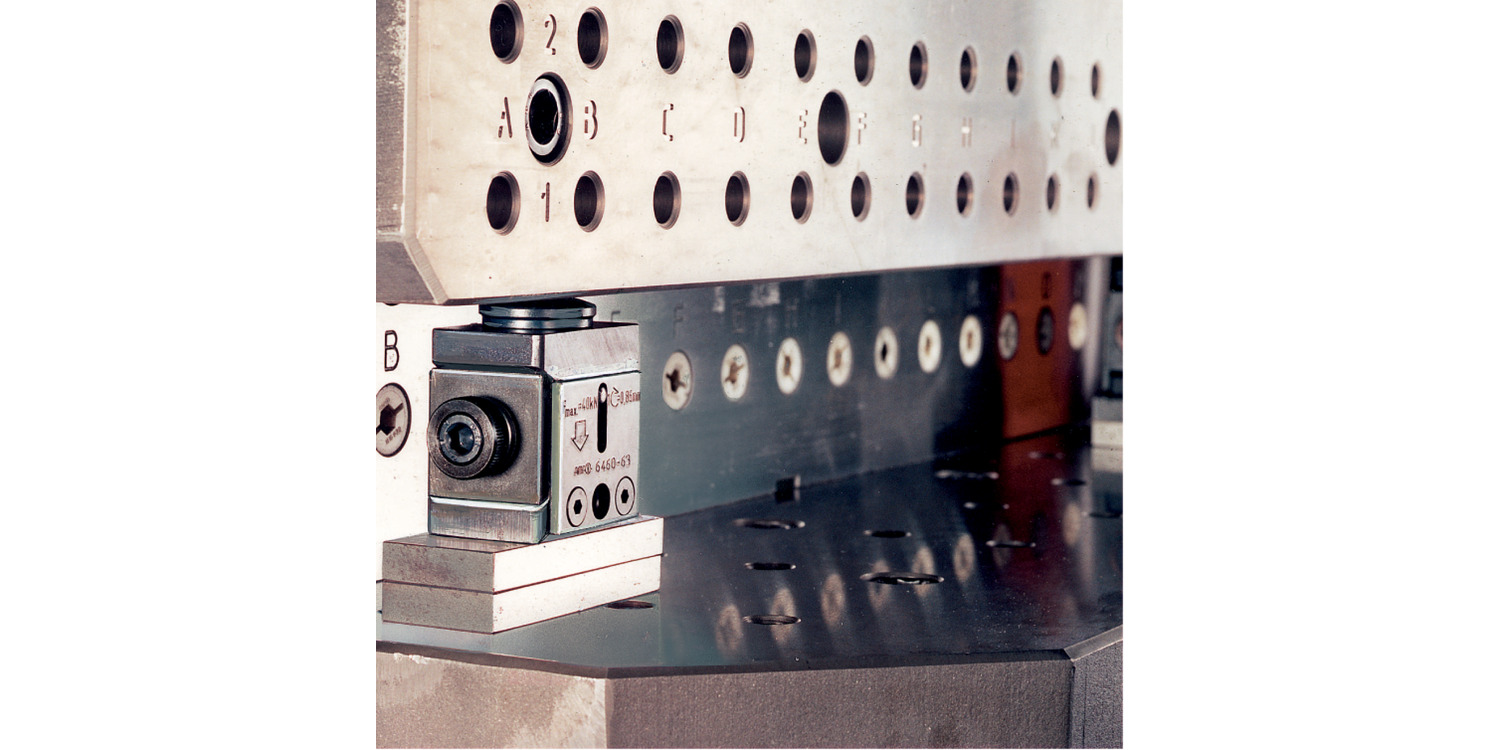

Particularly useful for precise positioning and machining of large components on heavy duty machines. If necessary, an additional Ø12mm locating hole in the base allows the wedge blocks to be located.
