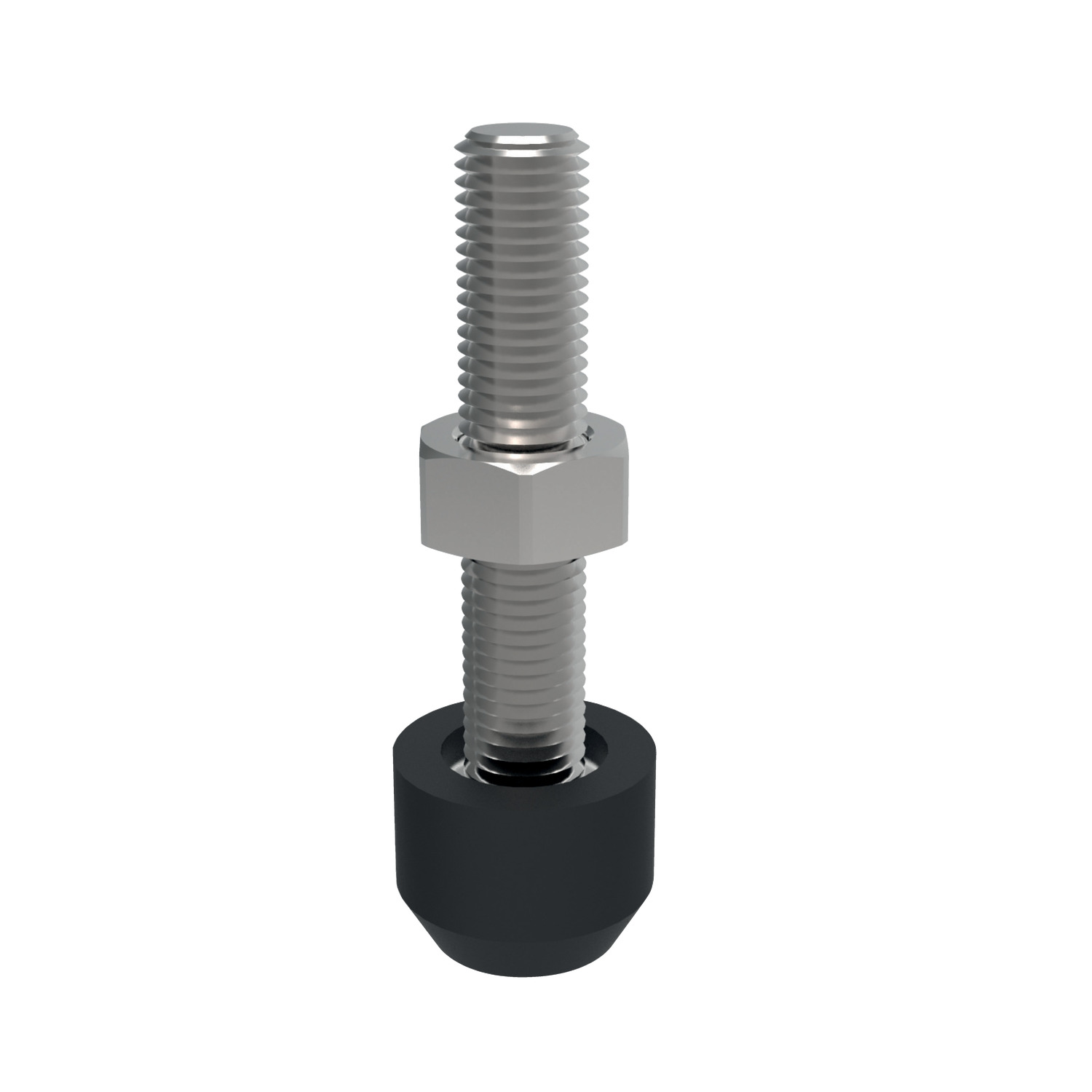

45020.1 Clamping Screws
for push-pull toggle clamps, material: Steel, zinc plated or stainless steel
Order No.
45020.W0005
Type
Steel
Size
5

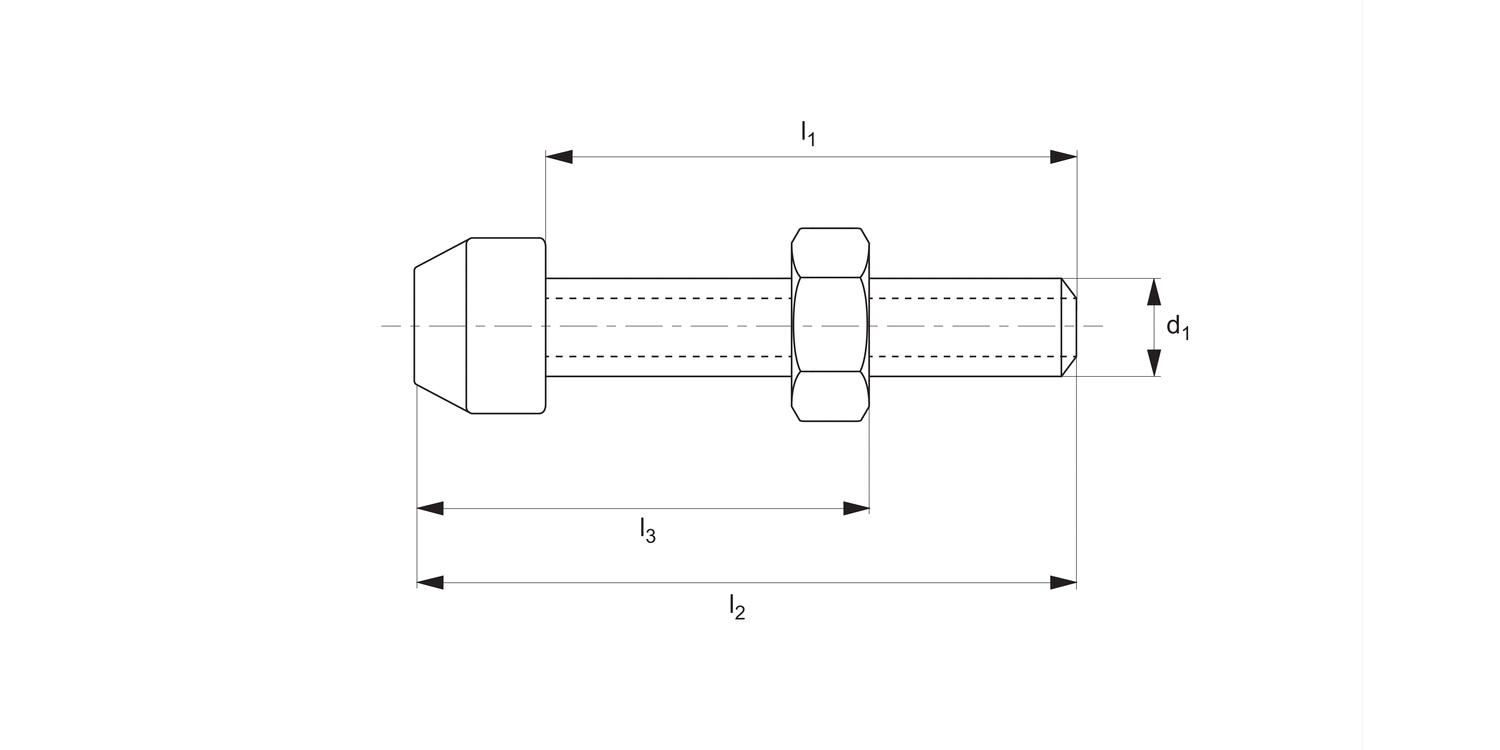

d1 x l1
M10x50
l2
66
l3
30-52
Weight
g
57
£ 10.11 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 10.11 | 0% |
| 5-9 | £ 9.60 | 5% |
| 10-19 | £ 9.10 | 10% |
| 20+ | £ 8.59 | 15% |
Technical & Application
Material
Steel: zinc plated and tempered, tensile strength class 8.8.
Stainless: stainless steel (AISI 304, 1.4301). With nut and removable rubber protection pad.
Technical Notes
Protection pad is made of oil-resistant neoprene to prevent damage to delicate workpiece surfaces, hardness 70 shore A, silicone-free.
