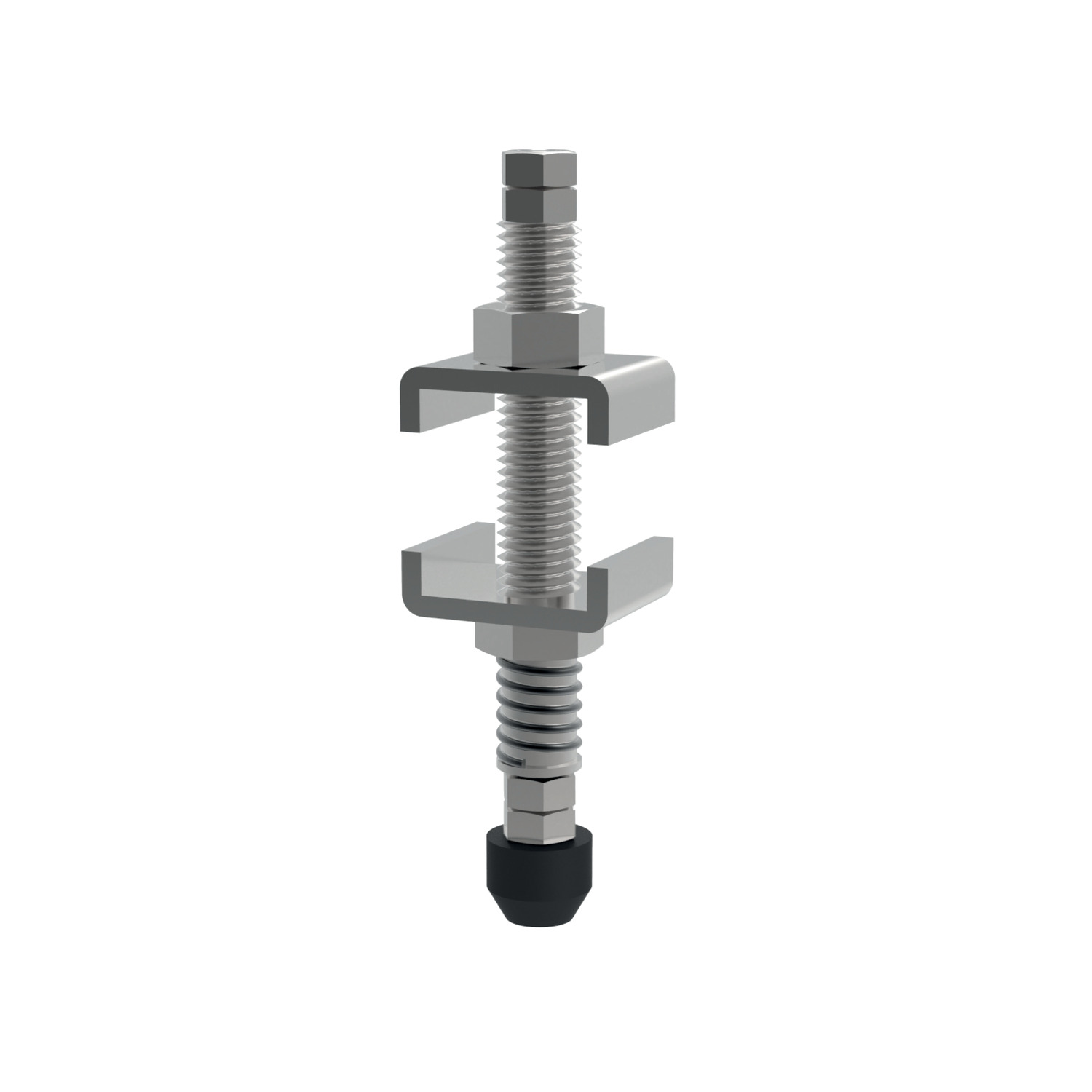

45100 Spring Loaded Screws

Name: 45100.W0004
Brand: WC
SKU: 45100.W0004
Price: 40.67 EUR
Availability: OutOfStock

for open ended clamping arms, material: Steel, zinc plated

Article properties

Order No.

45100.W0004

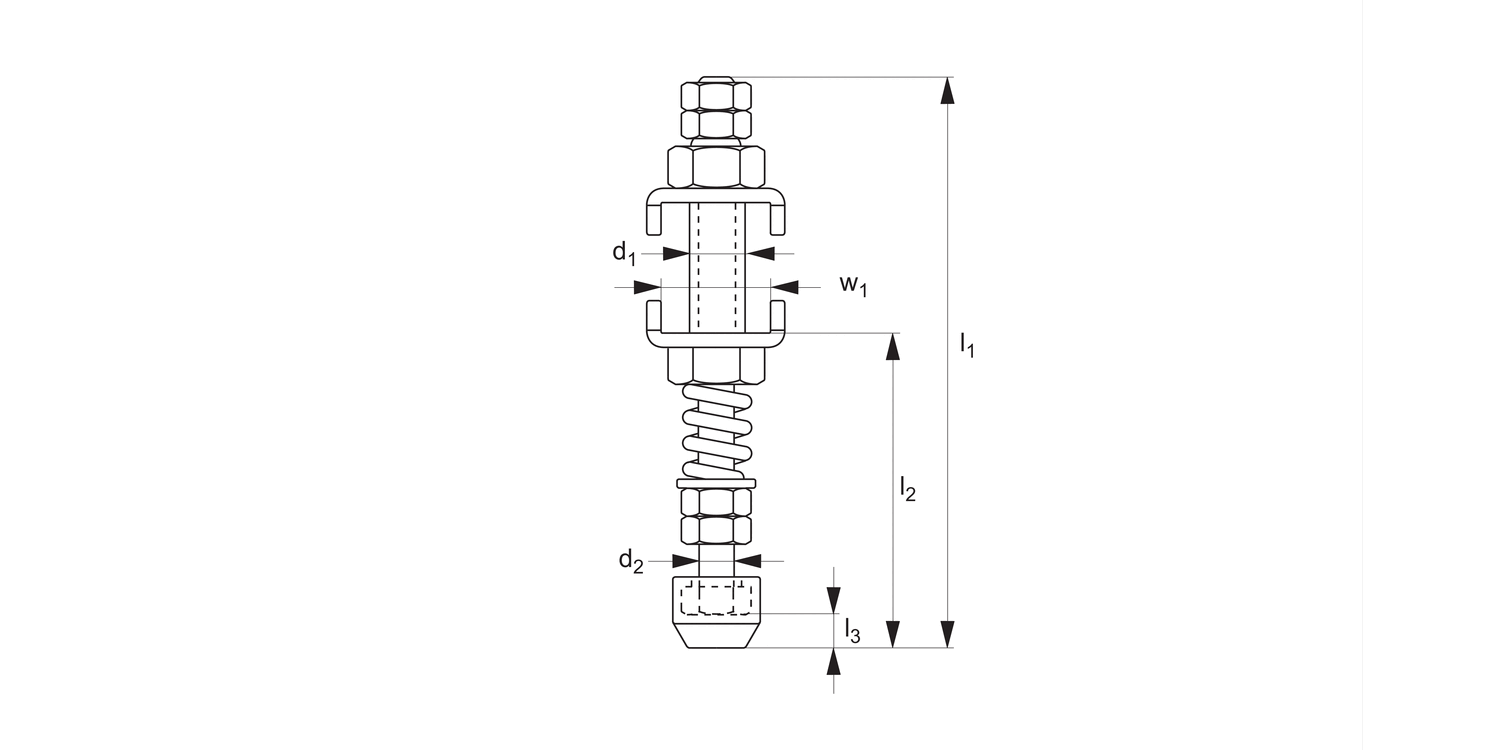

Size

d₁

M 8

w₁

18.5

l₁

d₂

M 5

l₂

40-53

l₃

Rubber pad 45120

.W0001

Weight g

See full product selection

£ 40.67 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 40.67	0%
5-9	£ 38.64	5%
10-19	£ 36.60	10%
20+	£ 34.57	15%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, zinc plated and tempered.
Rubber pad.

Tips

For toggle clamps with open ended arms.
