Pin Face Spanners
adjustable

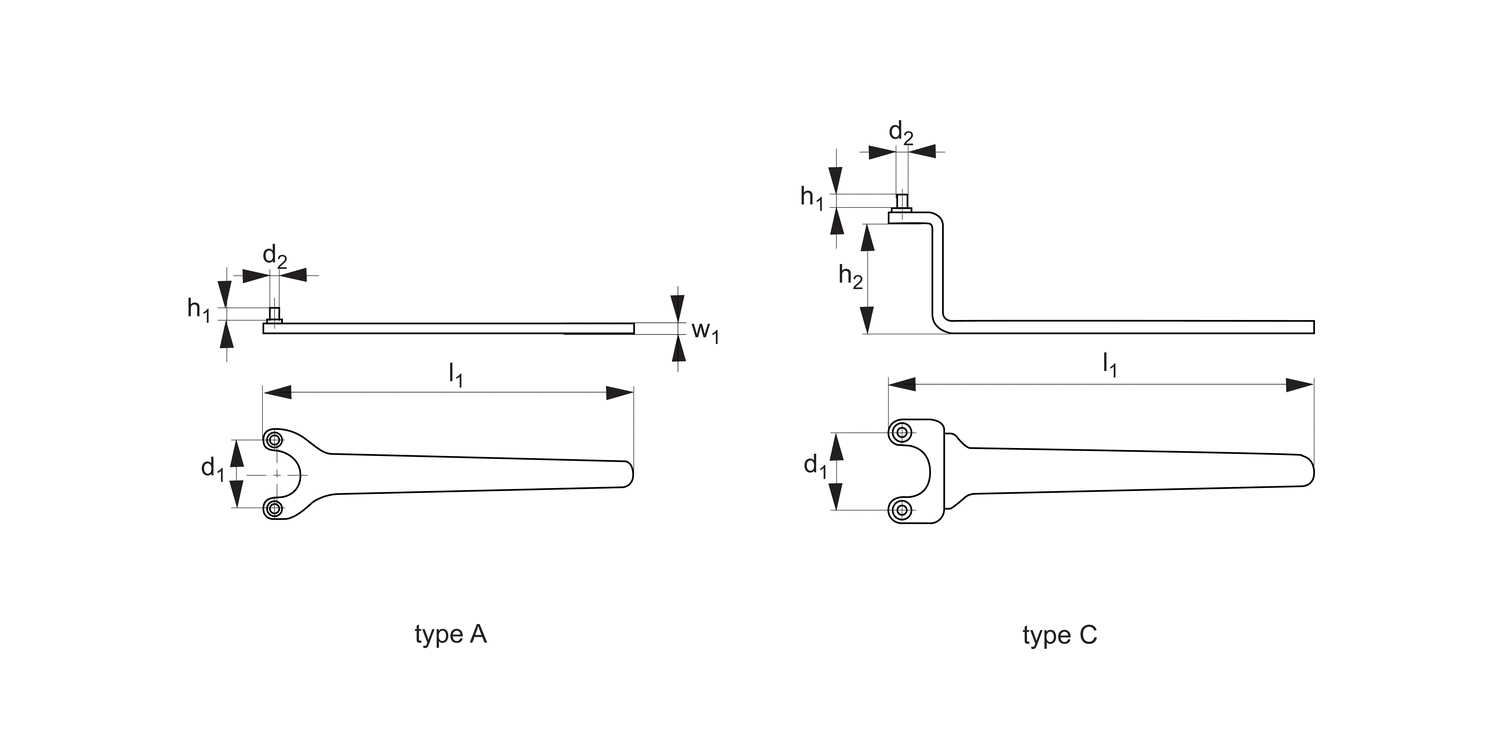

95342.1 Face Spanner - Off set
with fixed pins, material: Special steel
Order No.
95342.W0135
Type
C
d1
35
d2
-5
h1
6
h2
50
l1
200
w1
5
Weight
g
200
£ 13.68 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 13.68 | 0% |
| 5-9 | £ 13.00 | 5% |
| 10-19 | £ 12.31 | 10% |
| 20+ | £ 11.63 | 15% |
Technical & Application
Material
Special steel, zinc plated, with electrically welded pins.
Technical Notes
Size 35 for flange nut DIN 44716-D of angle grinder DIN 44706 for clamping, grinding and cutting-off wheels.
