Clamping Module - Single
flanged

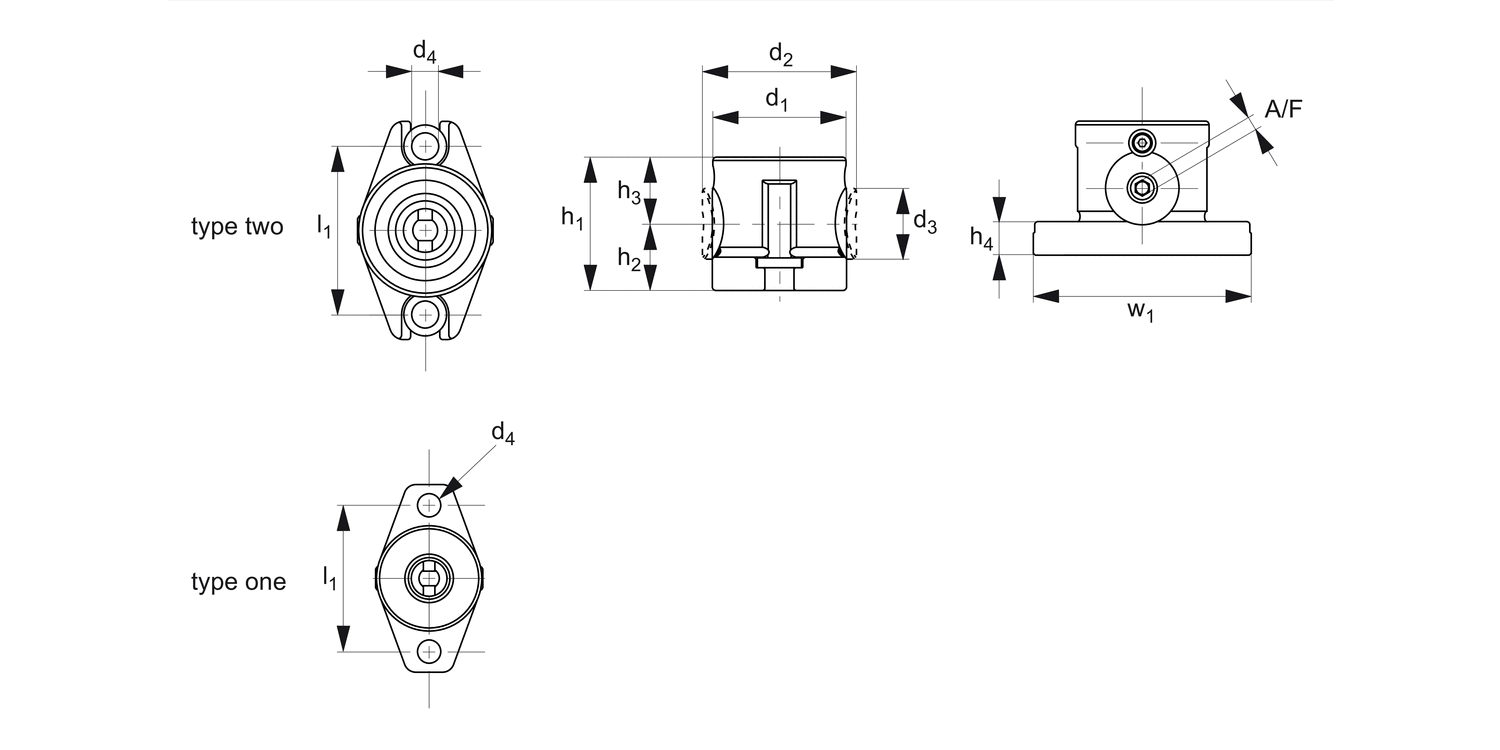

12043 Clamping Module - Single
flanged, material: Steel
Alternative products you may wish to consider
h1
±0.01
25
h2
12.5
h3
12.5
l1
42
w1
54
Type
One
Size
8
d1
30
d2
34.5
d3
15
d4
6.6
h4
7
A/F
3
Clamping force
max.
kN
5
Screw torque
max.
Nm
4
Weight
g
100
£ 540.01 per unit (click for quantity discounts)
h1
±0.01
40
h2
20.0
h3
20.0
l1
50
w1
65
Type
Two
Size
11
d1
40
d2
46.0
d3
22
d4
9.0
h4
10
A/F
4
Clamping force
max.
kN
8
Screw torque
max.
Nm
8
Weight
g
300
£ 590.25 per unit (click for quantity discounts)
h1
±0.01
63
h2
33.0
h3
30.0
l1
75
w1
95
Type
Two
Size
16
d1
60
d2
69.0
d3
32
d4
13.0
h4
15
A/F
6
Clamping force
max.
kN
15
Screw torque
max.
Nm
50
Weight
g
1400
£ 740.95 per unit (click for quantity discounts)
h1
±0.01
80
h2
40.0
h3
40.0
l1
100
w1
130
Type
Two
Size
21
d1
80
d2
91.0
d3
44
d4
17.0
h4
20
A/F
8
Clamping force
max.
kN
25
Screw torque
max.
Nm
50
Weight
g
3300
£ 1,042.35 per unit (click for quantity discounts)
h1
±0.01
h2
h3
l1
w1
Type
Size
d1
d2
d3
d4
h4
A/F
Clamping force
max.
kN
Screw torque
max.
Nm
Weight
g
| Price & Availability | Article | h1 ±0.01 | h2 | h3 | l1 | w1 | Type | Size | d1 | d2 | d3 | d4 | h4 | A/F | Clamping force max. kN | Screw torque max. Nm | Weight g | ||||||||||||||||||
| 12043.W0008 | 25 | 12.5 | 12.5 | 42 | 54 | One | 8 | 30 | 34.5 | 15 | 6.6 | 7 | 3 | 5 | 4 | 100 | |||||||||||||||||||
£ 540.01 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1
±0.01 25 h2 12.5 h3 12.5 l1 42 w1 54 Type One Size 8 d1 30 d2 34.5 d3 15 d4 6.6 h4 7 A/F 3 Clamping force
max.
kN 5 Screw torque
max.
Nm 4 Weight
g 100 | |||||||||||||||||||||||||||||||||||
| 12043.W0011 | 40 | 20.0 | 20.0 | 50 | 65 | Two | 11 | 40 | 46.0 | 22 | 9.0 | 10 | 4 | 8 | 8 | 300 | |||||||||||||||||||
£ 590.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1
±0.01 40 h2 20.0 h3 20.0 l1 50 w1 65 Type Two Size 11 d1 40 d2 46.0 d3 22 d4 9.0 h4 10 A/F 4 Clamping force
max.
kN 8 Screw torque
max.
Nm 8 Weight
g 300 | |||||||||||||||||||||||||||||||||||
| 12043.W0016 | 63 | 33.0 | 30.0 | 75 | 95 | Two | 16 | 60 | 69.0 | 32 | 13.0 | 15 | 6 | 15 | 50 | 1400 | |||||||||||||||||||
£ 740.95 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1
±0.01 63 h2 33.0 h3 30.0 l1 75 w1 95 Type Two Size 16 d1 60 d2 69.0 d3 32 d4 13.0 h4 15 A/F 6 Clamping force
max.
kN 15 Screw torque
max.
Nm 50 Weight
g 1400 | |||||||||||||||||||||||||||||||||||
| 12043.W0021 | 80 | 40.0 | 40.0 | 100 | 130 | Two | 21 | 80 | 91.0 | 44 | 17.0 | 20 | 8 | 25 | 50 | 3300 | |||||||||||||||||||
£ 1,042.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1
±0.01 80 h2 40.0 h3 40.0 l1 100 w1 130 Type Two Size 21 d1 80 d2 91.0 d3 44 d4 17.0 h4 20 A/F 8 Clamping force
max.
kN 25 Screw torque
max.
Nm 50 Weight
g 3300 | |||||||||||||||||||||||||||||||||||
Technical & Application
Material
Steel (AISI 4140), induction hardened, black oxide finish.
Technical Notes
For suitable clamping screws see part no.s 12046 through 12050.
For permissible cutting forces and corresponding workpiece weights when using the clamping module system, see technical pages.
