12056 External Form Holding Jaws
for flexible form holding clamp no. 12055, material: Aluminium
Alternative products you may wish to consider

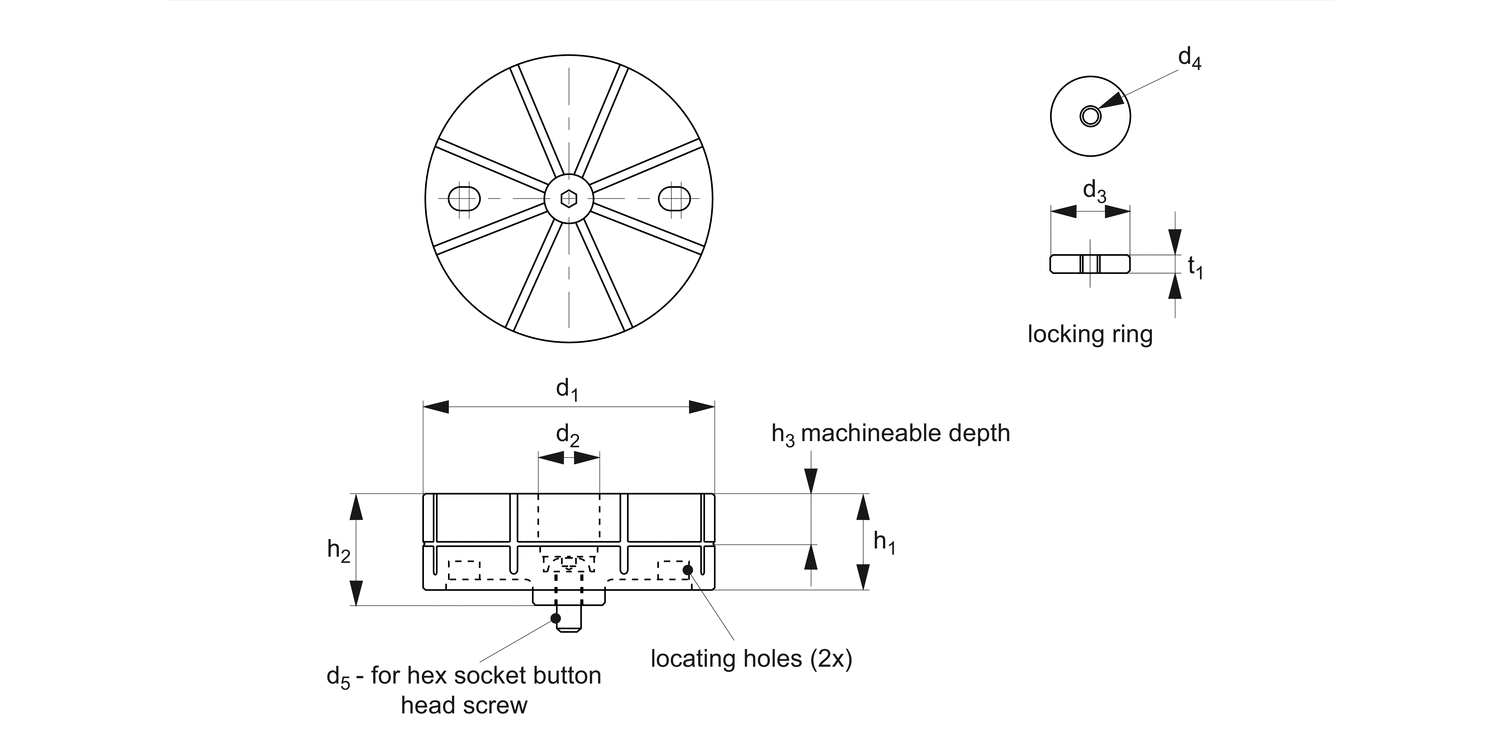

h1
26
h2
25
h3
10
Suitable for clamping base 12055
.W0065
Type
Jaw
Size
65
d1
65
d2
21
d3
20
d4
M 5x0,80
d5
M 8x20
t1
4
Weight
g
200
£ 280.78 per unit (click for quantity discounts)
h1
40
h2
35
h3
15
Suitable for clamping base 12055
.W0090
Type
Jaw
Size
90
d1
90
d2
25
d3
24
d4
M 6x1,00
d5
M10x25
t1
5
Weight
g
500
£ 380.71 per unit (click for quantity discounts)
h1
46
h2
40
h3
20
Suitable for clamping base 12055
.W0120
Type
Jaw
Size
120
d1
120
d2
25
d3
24
d4
M 6x1,00
d5
M10x25
t1
5
Weight
g
1100
£ 464.00 per unit (click for quantity discounts)
h1
52
h2
45
h3
25
Suitable for clamping base 12055
.W0190
Type
Jaw
Size
160
d1
160
d2
29
d3
28
d4
M 8x1,25
d5
M12x25
t1
6
Weight
g
2200
£ 690.05 per unit (click for quantity discounts)
h1
h2
h3
Suitable for clamping base 12055
Type
Size
d1
d2
d3
d4
d5
t1
Weight
g
| Price & Availability | Article | h1 | h2 | h3 | Suitable for clamping base 12055 | Type | Size | d1 | d2 | d3 | d4 | d5 | t1 | Weight g | ||||||||||||||||||
| 12056.W0065 | 26 | 25 | 10 | .W0065 | Jaw | 65 | 65 | 21 | 20 | M 5x0,80 | M 8x20 | 4 | 200 | |||||||||||||||||||
£ 280.78 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1 26 h2 25 h3 10 Suitable for clamping base 12055 .W0065 Type Jaw Size 65 d1 65 d2 21 d3 20 d4 M 5x0,80 d5 M 8x20 t1 4 Weight
g 200 | ||||||||||||||||||||||||||||||||
| 12056.W0090 | 40 | 35 | 15 | .W0090 | Jaw | 90 | 90 | 25 | 24 | M 6x1,00 | M10x25 | 5 | 500 | |||||||||||||||||||
£ 380.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1 40 h2 35 h3 15 Suitable for clamping base 12055 .W0090 Type Jaw Size 90 d1 90 d2 25 d3 24 d4 M 6x1,00 d5 M10x25 t1 5 Weight
g 500 | ||||||||||||||||||||||||||||||||
| 12056.W0120 | 46 | 40 | 20 | .W0120 | Jaw | 120 | 120 | 25 | 24 | M 6x1,00 | M10x25 | 5 | 1100 | |||||||||||||||||||
£ 464.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1 46 h2 40 h3 20 Suitable for clamping base 12055 .W0120 Type Jaw Size 120 d1 120 d2 25 d3 24 d4 M 6x1,00 d5 M10x25 t1 5 Weight
g 1100 | ||||||||||||||||||||||||||||||||
| 12056.W0160 | 52 | 45 | 25 | .W0190 | Jaw | 160 | 160 | 29 | 28 | M 8x1,25 | M12x25 | 6 | 2200 | |||||||||||||||||||
£ 690.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1 52 h2 45 h3 25 Suitable for clamping base 12055 .W0190 Type Jaw Size 160 d1 160 d2 29 d3 28 d4 M 8x1,25 d5 M12x25 t1 6 Weight
g 2200 | ||||||||||||||||||||||||||||||||
Technical & Application
Material
Jaws: aluminium (A7075), silver anodised.
Locating ring: steel (C45E), tempered, nickel plated.
Technical Notes

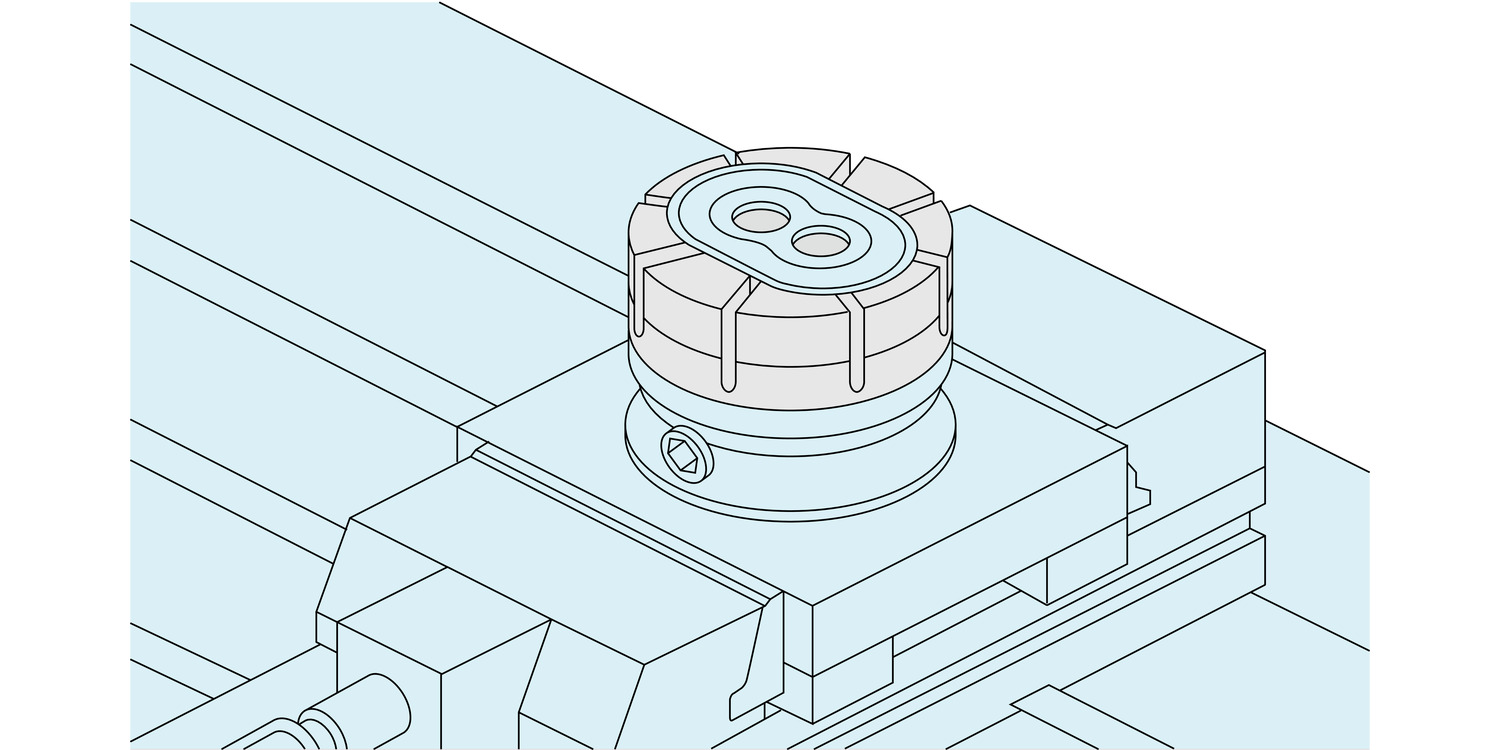

Offers 0,15mm clamping stroke on jaw. Ideal for die-cast and extruded parts.
Used with flexible form clamping base no. 12055.
Supplied with 0-ring, locking ring and socket button head screw to assist during machining of form.
