Clamping Module - Single
flanged
12074 Compact ID Holding Clamps
material: Steel
Alternative products you may wish to consider
h2
0.9
l1 at d1
max.
7.3
Type
Countersunk
d1
min.
8
d1
max.
10.3
d2
M 4x0,70
h1 at d1
min.
4.6
h1 at d1
max.
5.5
A/F
3
Clamping force
max.
kN
2.1
Torque to
max.
Nm
0.9
Weight
g
3
£ 28.56 per unit (click for quantity discounts)
h2
1.1
l1 at d1
max.
9.1
Type
Countersunk
d1
min.
10
d1
max.
12.3
d2
M 5x0,80
h1 at d1
min.
5.6
h1 at d1
max.
6.4
A/F
3
Clamping force
max.
kN
4.3
Torque to
max.
Nm
1.5
Weight
g
5
£ 28.56 per unit (click for quantity discounts)
h2
1.3
l1 at d1
max.
11.2
Type
Countersunk
d1
min.
12
d1
max.
16.3
d2
M 6x1,00
h1 at d1
min.
7.0
h1 at d1
max.
8.6
A/F
4
Clamping force
max.
kN
7.3
Torque to
max.
Nm
2.1
Weight
g
9
£ 33.32 per unit (click for quantity discounts)
h2
1.6
l1 at d1
max.
16.2
Type
Countersunk
d1
min.
16
d1
max.
22.0
d2
M 8x1,25
h1 at d1
min.
9.4
h1 at d1
max.
11.5
A/F
5
Clamping force
max.
kN
18.0
Torque to
max.
Nm
4.0
Weight
g
22
£ 35.70 per unit (click for quantity discounts)
h2
5.1
l1 at d1
max.
7.1
Type
Socket Head
d1
min.
8
d1
max.
10.3
d2
M 4x0,70
h1 at d1
min.
4.6
h1 at d1
max.
5.5
A/F
3
Clamping force
max.
kN
2.7
Torque to
max.
Nm
1.5
Weight
g
4
£ 33.32 per unit (click for quantity discounts)
h2
6.2
l1 at d1
max.
9.0
Type
Socket Head
d1
min.
10
d1
max.
12.3
d2
M 5x0,80
h1 at d1
min.
5.6
h1 at d1
max.
6.4
A/F
4
Clamping force
max.
kN
5.4
Torque to
max.
Nm
2.5
Weight
g
7
£ 33.32 per unit (click for quantity discounts)
h2
7.9
l1 at d1
max.
10.6
Type
Socket Head
d1
min.
12
d1
max.
16.3
d2
M 6x1,00
h1 at d1
min.
7.0
h1 at d1
max.
8.6
A/F
5
Clamping force
max.
kN
9.1
Torque to
max.
Nm
5.0
Weight
g
11
£ 38.08 per unit (click for quantity discounts)
h2
10.4
l1 at d1
max.
15.4
Type
Socket Head
d1
min.
16
d1
max.
22.0
d2
M 8x1,25
h1 at d1
min.
9.4
h1 at d1
max.
11.5
A/F
6
Clamping force
max.
kN
25.0
Torque to
max.
Nm
9.0
Weight
g
28
£ 42.84 per unit (click for quantity discounts)
h2
l1 at d1
max.
Type
d1
min.
d1
max.
d2
h1 at d1
min.
h1 at d1
max.
A/F
Clamping force
max.
kN
Torque to
max.
Nm
Weight
g
| Price & Availability | Article | h2 | l1 at d1 max. | Type | d1 min. | d1 max. | d2 | h1 at d1 min. | h1 at d1 max. | A/F | Clamping force max. kN | Torque to max. Nm | Weight g | ||||||||||||||||||
| 12074.W0008 | 0.9 | 7.3 | Countersunk | 8 | 10.3 | M 4x0,70 | 4.6 | 5.5 | 3 | 2.1 | 0.9 | 3 | |||||||||||||||||||
£ 28.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h2 0.9 l1 at d1
max. 7.3 Type Countersunk d1
min. 8 d1
max. 10.3 d2 M 4x0,70 h1 at d1
min. 4.6 h1 at d1
max. 5.5 A/F 3 Clamping force
max.
kN 2.1 Torque to
max.
Nm 0.9 Weight
g 3 | |||||||||||||||||||||||||||||||
| 12074.W0010 | 1.1 | 9.1 | Countersunk | 10 | 12.3 | M 5x0,80 | 5.6 | 6.4 | 3 | 4.3 | 1.5 | 5 | |||||||||||||||||||
£ 28.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h2 1.1 l1 at d1
max. 9.1 Type Countersunk d1
min. 10 d1
max. 12.3 d2 M 5x0,80 h1 at d1
min. 5.6 h1 at d1
max. 6.4 A/F 3 Clamping force
max.
kN 4.3 Torque to
max.
Nm 1.5 Weight
g 5 | |||||||||||||||||||||||||||||||
| 12074.W0012 | 1.3 | 11.2 | Countersunk | 12 | 16.3 | M 6x1,00 | 7.0 | 8.6 | 4 | 7.3 | 2.1 | 9 | |||||||||||||||||||
£ 33.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h2 1.3 l1 at d1
max. 11.2 Type Countersunk d1
min. 12 d1
max. 16.3 d2 M 6x1,00 h1 at d1
min. 7.0 h1 at d1
max. 8.6 A/F 4 Clamping force
max.
kN 7.3 Torque to
max.
Nm 2.1 Weight
g 9 | |||||||||||||||||||||||||||||||
| 12074.W0016 | 1.6 | 16.2 | Countersunk | 16 | 22.0 | M 8x1,25 | 9.4 | 11.5 | 5 | 18.0 | 4.0 | 22 | |||||||||||||||||||
£ 35.70 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h2 1.6 l1 at d1
max. 16.2 Type Countersunk d1
min. 16 d1
max. 22.0 d2 M 8x1,25 h1 at d1
min. 9.4 h1 at d1
max. 11.5 A/F 5 Clamping force
max.
kN 18.0 Torque to
max.
Nm 4.0 Weight
g 22 | |||||||||||||||||||||||||||||||
| 12074.W0108 | 5.1 | 7.1 | Socket Head | 8 | 10.3 | M 4x0,70 | 4.6 | 5.5 | 3 | 2.7 | 1.5 | 4 | |||||||||||||||||||
£ 33.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h2 5.1 l1 at d1
max. 7.1 Type Socket Head d1
min. 8 d1
max. 10.3 d2 M 4x0,70 h1 at d1
min. 4.6 h1 at d1
max. 5.5 A/F 3 Clamping force
max.
kN 2.7 Torque to
max.
Nm 1.5 Weight
g 4 | |||||||||||||||||||||||||||||||
| 12074.W0110 | 6.2 | 9.0 | Socket Head | 10 | 12.3 | M 5x0,80 | 5.6 | 6.4 | 4 | 5.4 | 2.5 | 7 | |||||||||||||||||||
£ 33.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h2 6.2 l1 at d1
max. 9.0 Type Socket Head d1
min. 10 d1
max. 12.3 d2 M 5x0,80 h1 at d1
min. 5.6 h1 at d1
max. 6.4 A/F 4 Clamping force
max.
kN 5.4 Torque to
max.
Nm 2.5 Weight
g 7 | |||||||||||||||||||||||||||||||
| 12074.W0112 | 7.9 | 10.6 | Socket Head | 12 | 16.3 | M 6x1,00 | 7.0 | 8.6 | 5 | 9.1 | 5.0 | 11 | |||||||||||||||||||
£ 38.08 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h2 7.9 l1 at d1
max. 10.6 Type Socket Head d1
min. 12 d1
max. 16.3 d2 M 6x1,00 h1 at d1
min. 7.0 h1 at d1
max. 8.6 A/F 5 Clamping force
max.
kN 9.1 Torque to
max.
Nm 5.0 Weight
g 11 | |||||||||||||||||||||||||||||||
| 12074.W0116 | 10.4 | 15.4 | Socket Head | 16 | 22.0 | M 8x1,25 | 9.4 | 11.5 | 6 | 25.0 | 9.0 | 28 | |||||||||||||||||||
£ 42.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h2 10.4 l1 at d1
max. 15.4 Type Socket Head d1
min. 16 d1
max. 22.0 d2 M 8x1,25 h1 at d1
min. 9.4 h1 at d1
max. 11.5 A/F 6 Clamping force
max.
kN 25.0 Torque to
max.
Nm 9.0 Weight
g 28 | |||||||||||||||||||||||||||||||
Technical & Application
Material
Steel (AISI 4140), 33-39 HRc, blackened.
Technical Notes

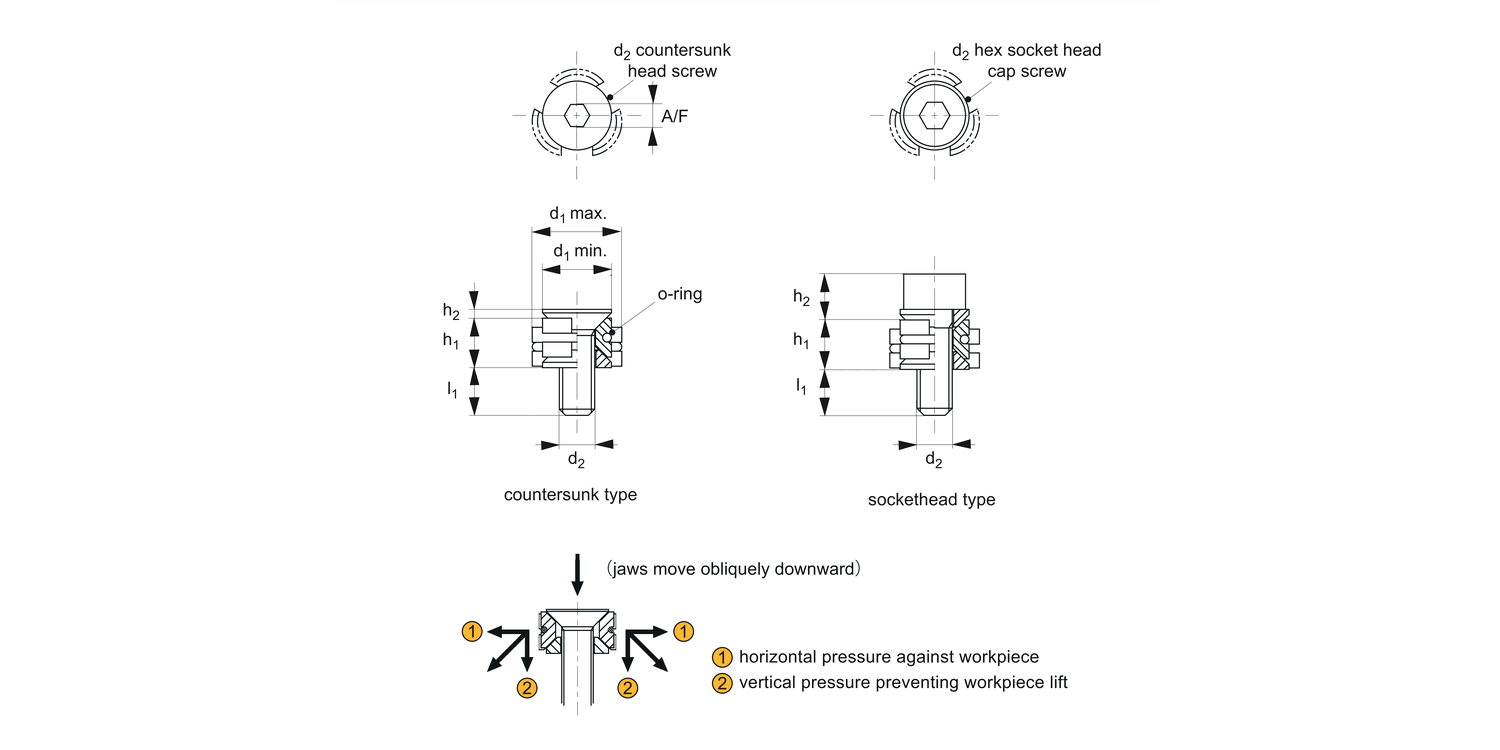

Compact clamps to hold workpiece on an inside diameter. Wedge construction provides powerful clamping force. Generates both horizontal and vertical clamping force.
Tips
Clamps are suited to holding on cast or roughed holes. Contact point nature of clamp may result in marking of workpiece. Not recommended for use in accurately finished holes.
