Clamping Module - Single
flanged
12045 Clamping Module - Single
unflanged, material: Steel
Alternative products you may wish to consider

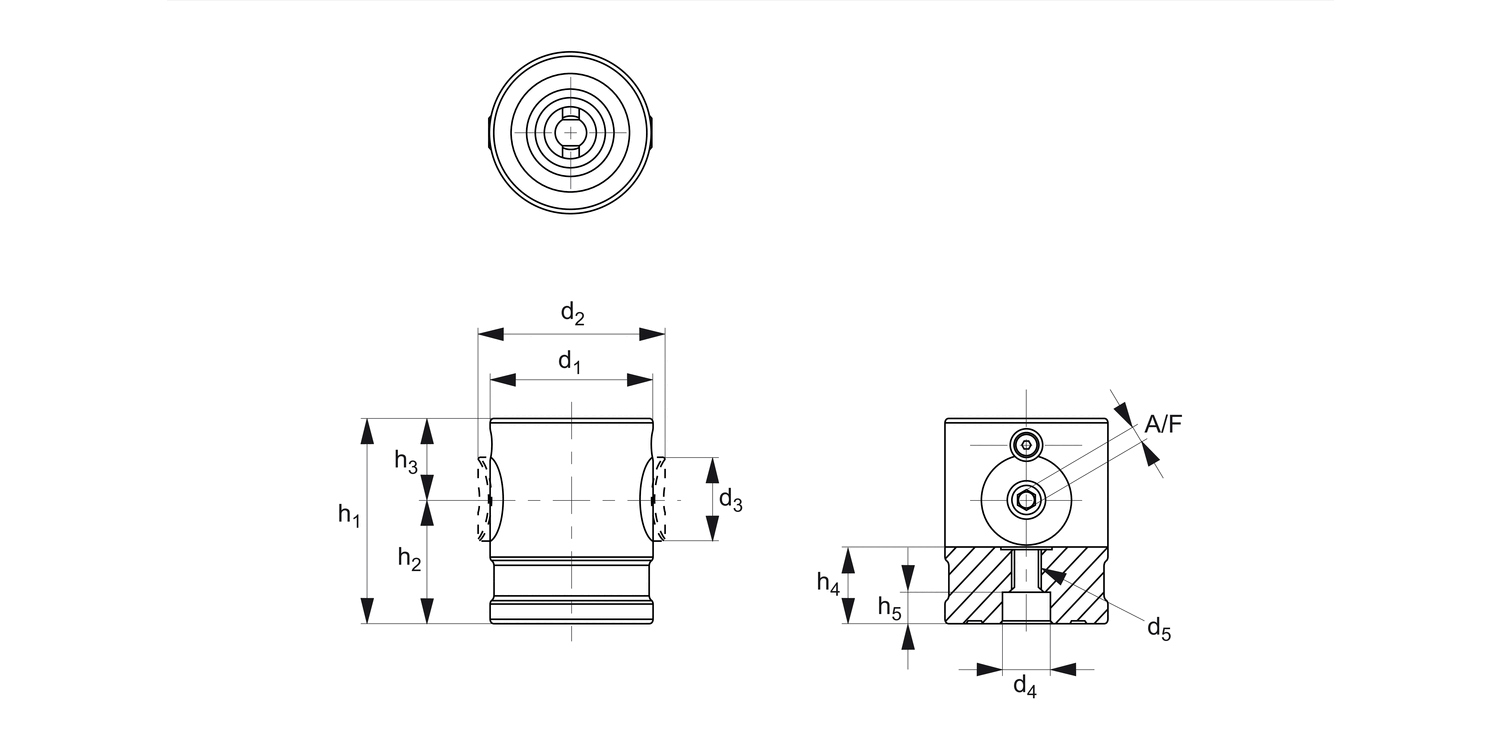

h1
±0.01
32
h2
19.5
h3
12.5
Size
8
d1
30
d2
34.5
d3
15
d4
8
d5
M 6x1,00
h4
11.5
h5
5.0
A/F
3
Clamping force
max.
kN
5
Screw torque
max.
Nm
4
Weight
g
200
£ 615.36 per unit (click for quantity discounts)
h1
±0.01
h2
h3
Size
d1
d2
d3
d4
d5
h4
h5
A/F
Clamping force
max.
kN
Screw torque
max.
Nm
Weight
g
| Price & Availability | Article | h1 ±0.01 | h2 | h3 | Size | d1 | d2 | d3 | d4 | d5 | h4 | h5 | A/F | Clamping force max. kN | Screw torque max. Nm | Weight g | ||||||||||||||||||
| 12045.W0008 | 32 | 19.5 | 12.5 | 8 | 30 | 34.5 | 15 | 8 | M 6x1,00 | 11.5 | 5.0 | 3 | 5 | 4 | 200 | |||||||||||||||||||
£ 615.36 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
h1
±0.01 32 h2 19.5 h3 12.5 Size 8 d1 30 d2 34.5 d3 15 d4 8 d5 M 6x1,00 h4 11.5 h5 5.0 A/F 3 Clamping force
max.
kN 5 Screw torque
max.
Nm 4 Weight
g 200 | ||||||||||||||||||||||||||||||||||
Technical & Application
Material
Steel (AISI 4140), induction hardened, black oxide finish.
Technical Notes
For suitable clamping screws see part no.s 12046 through 12050.
For permissible cutting forces and corresponding workpiece weights when using the clamping module system, see technical pages.
