Clamping Module - Single
flanged

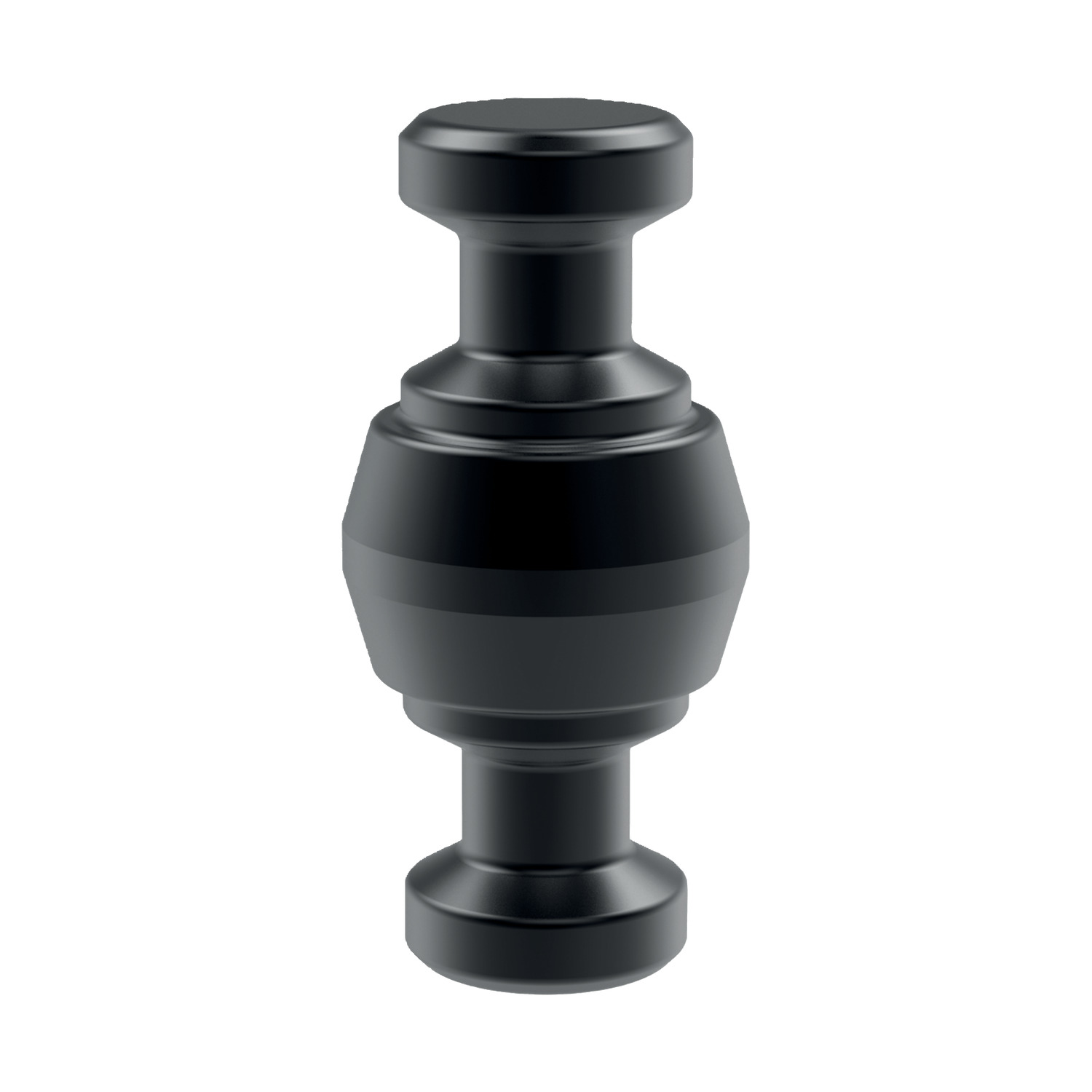

12047.2 Tapered Clamping Screws - Double
floating, material: Steel
Order No.
12047.W0011

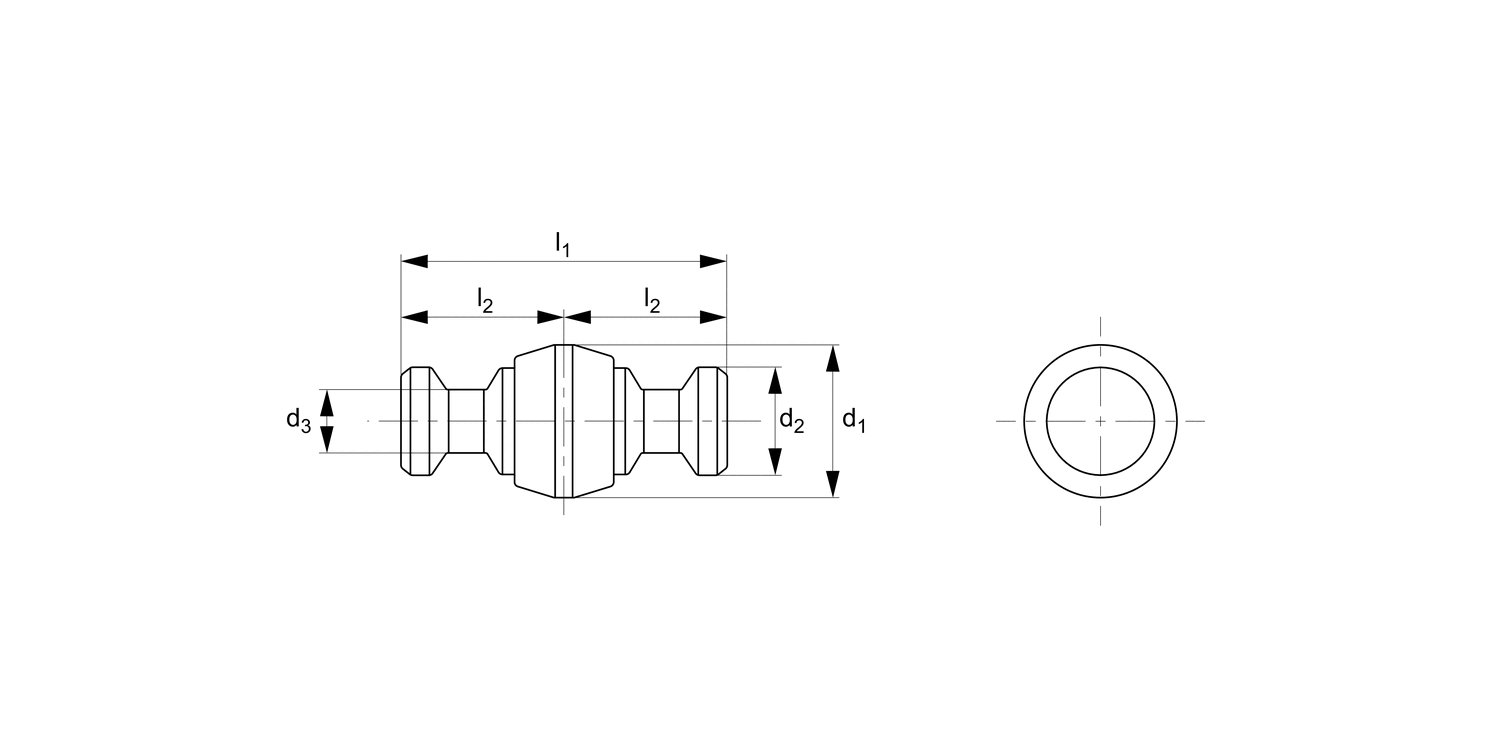

l1
33
Suitable clamping module 12044
11
Type
Floating
Size
11
d1
15.5
d2
11
d3
6.5
l2
16.5
Weight
g
24
£ 27.45 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 27.45 | 0% |
| 10-19 | £ 24.71 | 10% |
| 20-49 | £ 23.33 | 15% |
| 50-99 | £ 21.96 | 20% |
| 100+ | £ 19.22 | 30% |
Technical & Application
Material
Bushing: steel (C45E), black oxide finish, precision ground.
Technical Notes
Can be used to couple double clamping modules (see part no.12044) together for greater height.
Locating repeatability ± 0,2mm.
