Clamping Module - Single
flanged

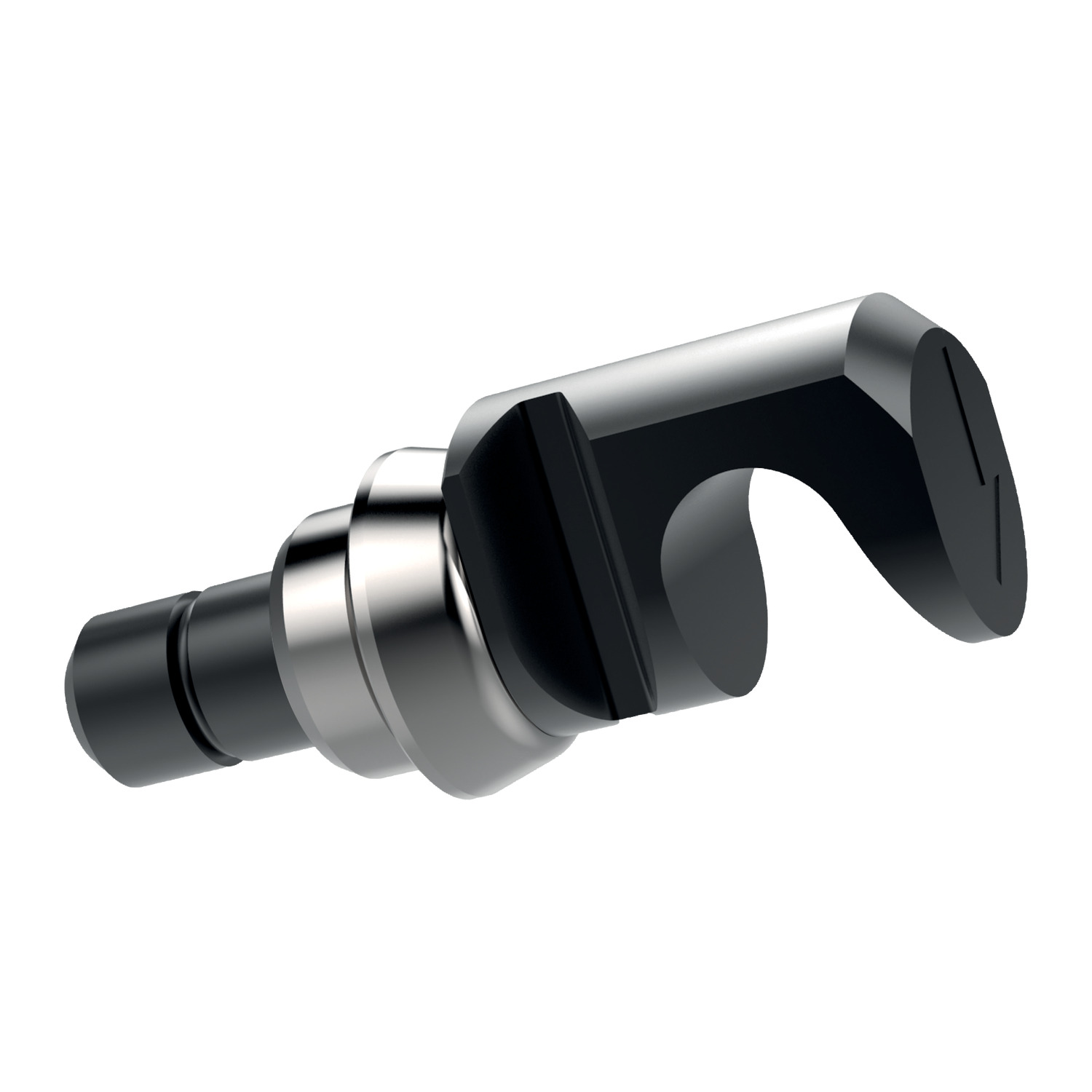

12049.3 Tapered Clamping Screws - Hook
precision, material: Steel
Order No.
12049.W0324

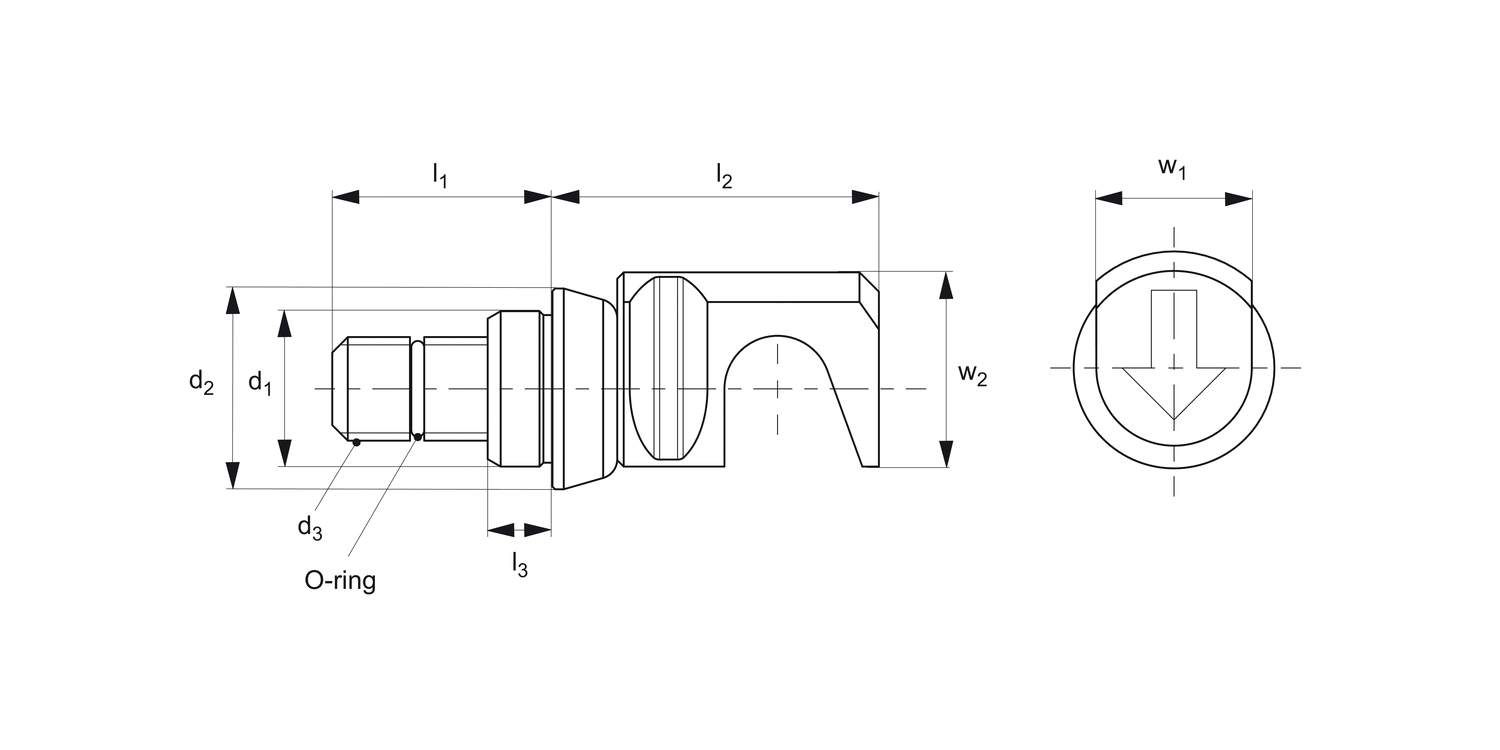

l1
30
w1
24
Suitable clamping module size
24
Type
Precision
Size
24
d1
tol. g6
22
d2
31.5
O-ring size
S12 (CS 1,5 I/D 11,5)
d3
M16x2,00
l2
51
l3
7.5
w2
30.0
Weight
g
235
£ 140.66 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 140.66 | 0% |
| 10-19 | £ 126.59 | 10% |
| 20-49 | £ 119.56 | 15% |
| 50-99 | £ 112.53 | 20% |
| 100+ | £ 98.46 | 30% |
Technical & Application
Material
Bushing: steel (C45E), black oxide finish, precision ground.
Screw: steel (SCM 435), tempered, black oxide finish.
O-ring: nitrile rubber.
Technical Notes
For suitable clamping modules see part no. 12049.1.
