Clamping Module - Single
flanged
12054 Manual Actuators
for ID Xpansion clamps, material: Steel
Order No.
12054.W0550
h1
-
h2
-
l1
-
w1
-
Suitable for ID Xpansion clamp
-
Type
Spare - Actuator Screw
d1
-
d2 for
-
d3
-
d4
-
A/F
-
£ 17.18 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 17.18 | 0% |
| 5-9 | £ 16.32 | 5% |
| 10-19 | £ 15.46 | 10% |
| 20-49 | £ 14.60 | 15% |
| 50+ | £ 12.89 | 25% |
Technical & Application
Material
Steel.
Technical Notes
Versatile manual actuators when combined with our ID Xpansion clamps 12051. Enables clamping of smaller internal diameters and blind holes. Mount corresponding ID Xpansion clamp.
Mill type actuator is adaptable and can be used on both vertical and horizontal planes. Once installed the clamp can be actuated with use of an actuator screw (6mm A/F).
Tips
Order ID Xpansion clamp 12051 separately.
Important Notes
Manual actuators for mills and lathes.
Introducing another new and innovative workholding system. Specifically designed to clamp on blind internal diameters smaller than our Side-Loc clamps would allow.
We took the design a step further, by increasing the functionality to clamp smaller inside diameters. For the mill version the option of holding the workpiece in a vertical or horizontal plane. By simply mounting our standard ID Xpansion clamps on these manual actuators, or using another style clamp that has a "straight draw", you can now perform operations that previously required extensive hydraulic/pneumatic cylinders.
Mill mounted manual actuators for ID Xpansion clamps are suitable for holding workpieces of very small blind internal diameters.
Product Datasheets

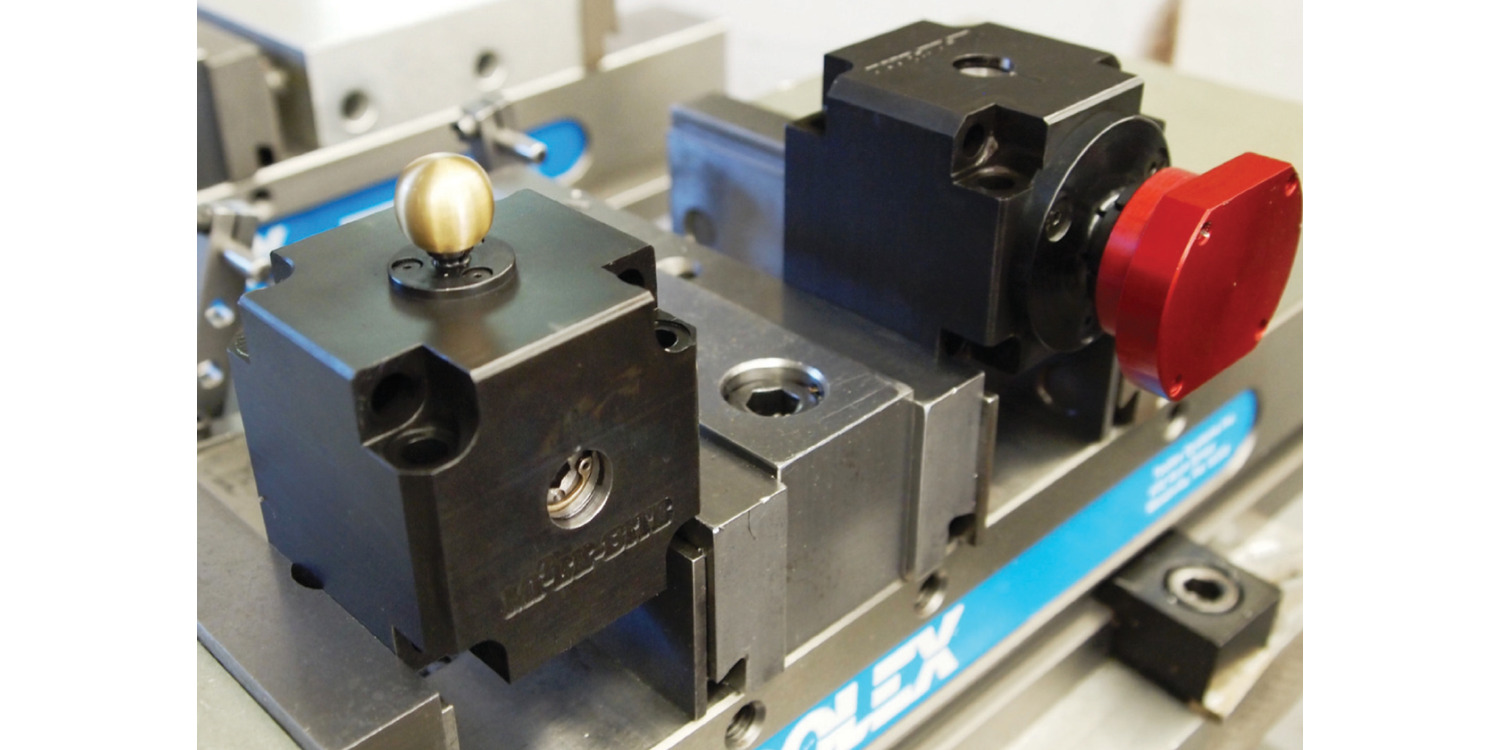

Application images
