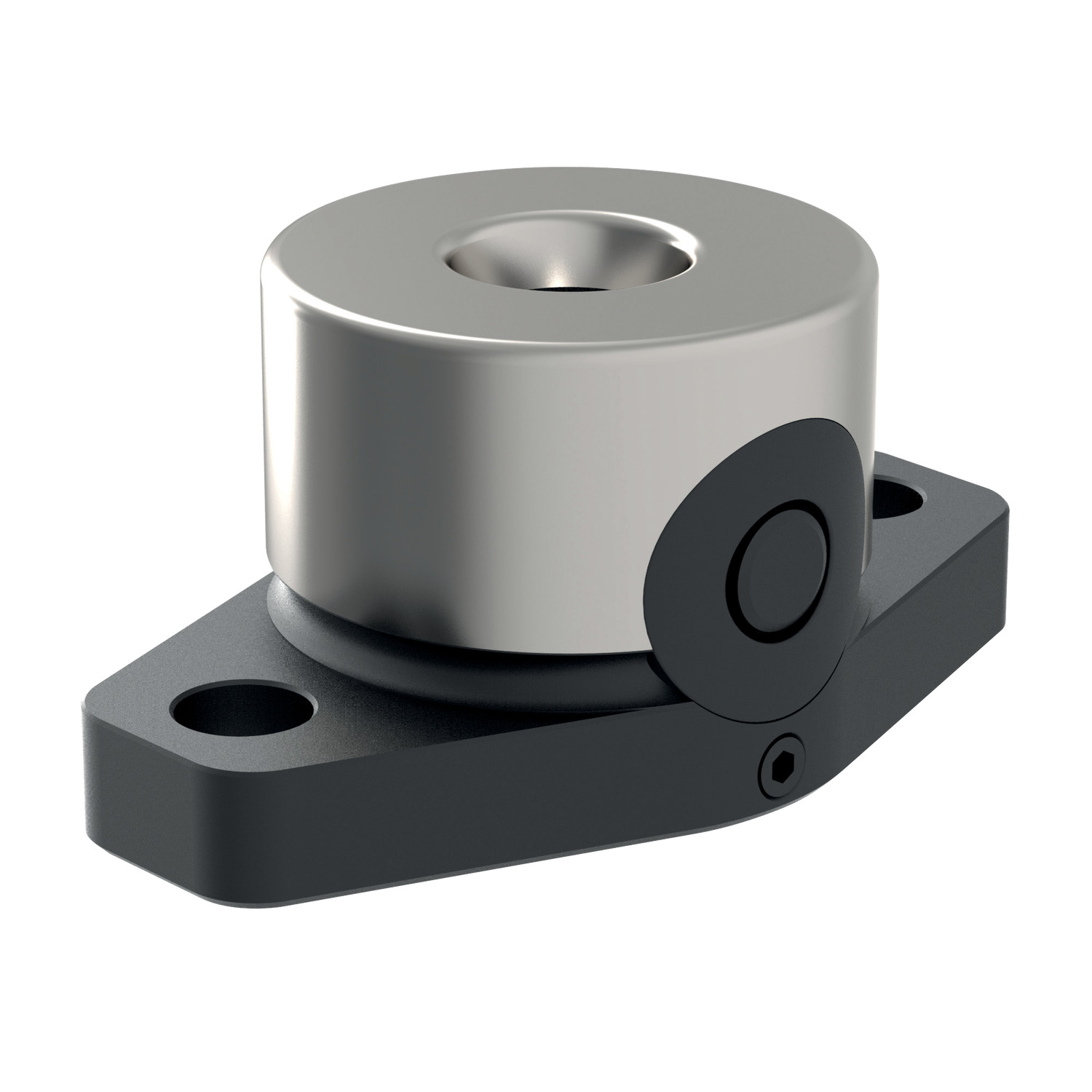

Clamping Module - Single
flanged

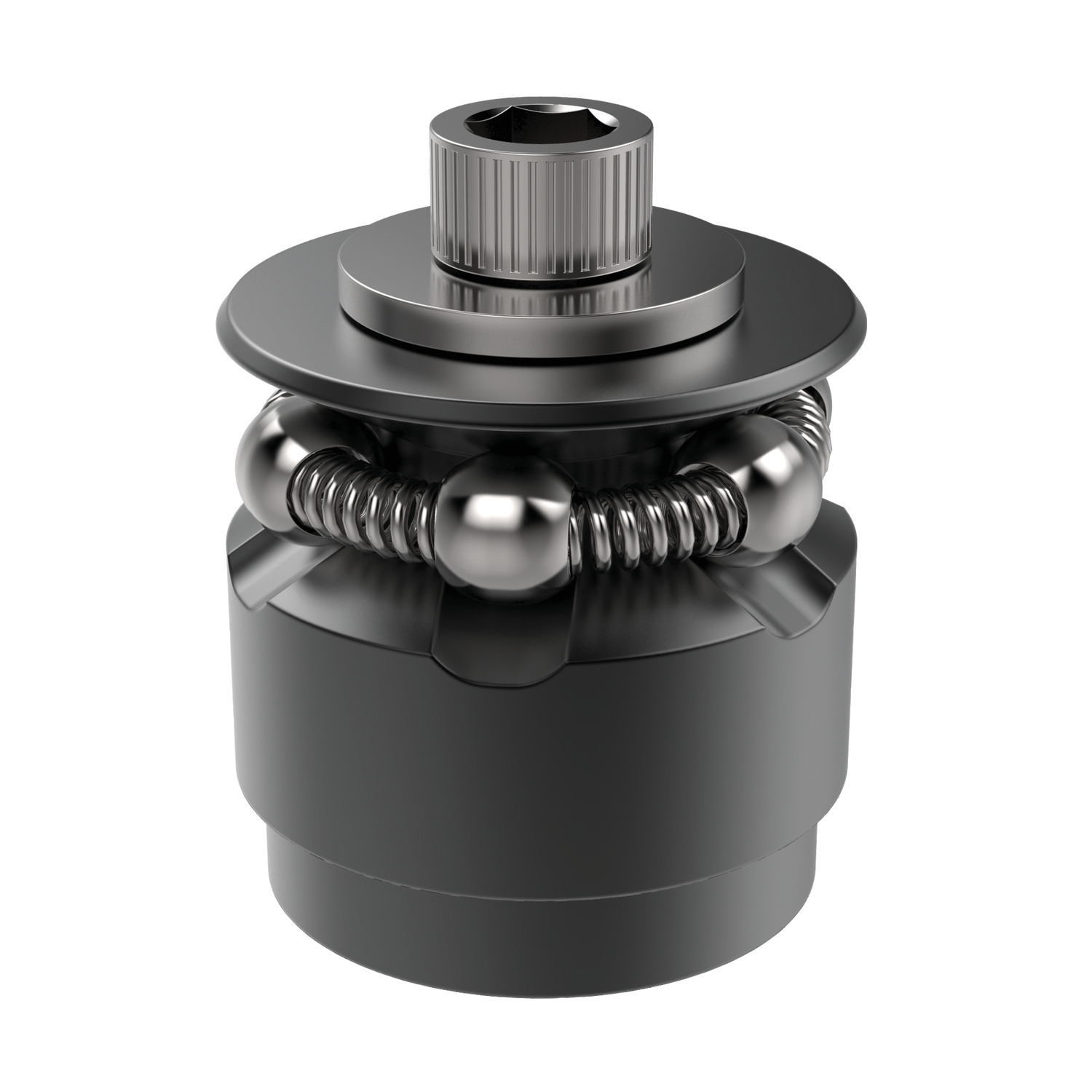

12061 Internal Centering Clamps
standard version - for delicate components, material: Tool steel
Order No.
12061.W0218
h1
-1
16.6
h2
11.5
h3
10.4
l1
±0.1
5.5
d1
min.
18.5
d1
max.
22.5
d2
tol. F7
15
d3
M 5
d4
+0.3
2.5
d6
2.5
d7
5
Weight
g
38
d8
M 5
Location hole d5
tol. H7
15
h4
7.5
h5
-2
22.8
h6
2.5
h7
7.5
l2
5.5
Stroke s1
2.3
t1
7
A/F1
4
A/F2
5
Clamping force
max.
kN
4.5
No. of segments n
3
£ 467.47 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 467.47 | 0% |
| 3-4 | £ 444.10 | 5% |
| 5-9 | £ 420.72 | 10% |
| 10+ | £ 397.35 | 15% |
Technical & Application
Material
Body: tool steel (1.2842), blackened.
Top cone: steel, case hardened, blackened and ground.
Ball: stainless steel (1.4112), hardened and burnished.
Tension spring: stainless steel, 1.4310 (AISI 301)
Technical Notes
Suitable for concentric positioning and chucking inside holes with surfaces prone to damage.
Locking pin for precise ball positioning.
For deep installation applications, "d2 max." must be maintained for clearance.
Repeatability and rotational accuracy, ±0,025.
Tips
Suitable for perforated walls prone to damage, machining centres, welding devices, transfer units, assembly units etc.
