Clamping Module - Single
flanged

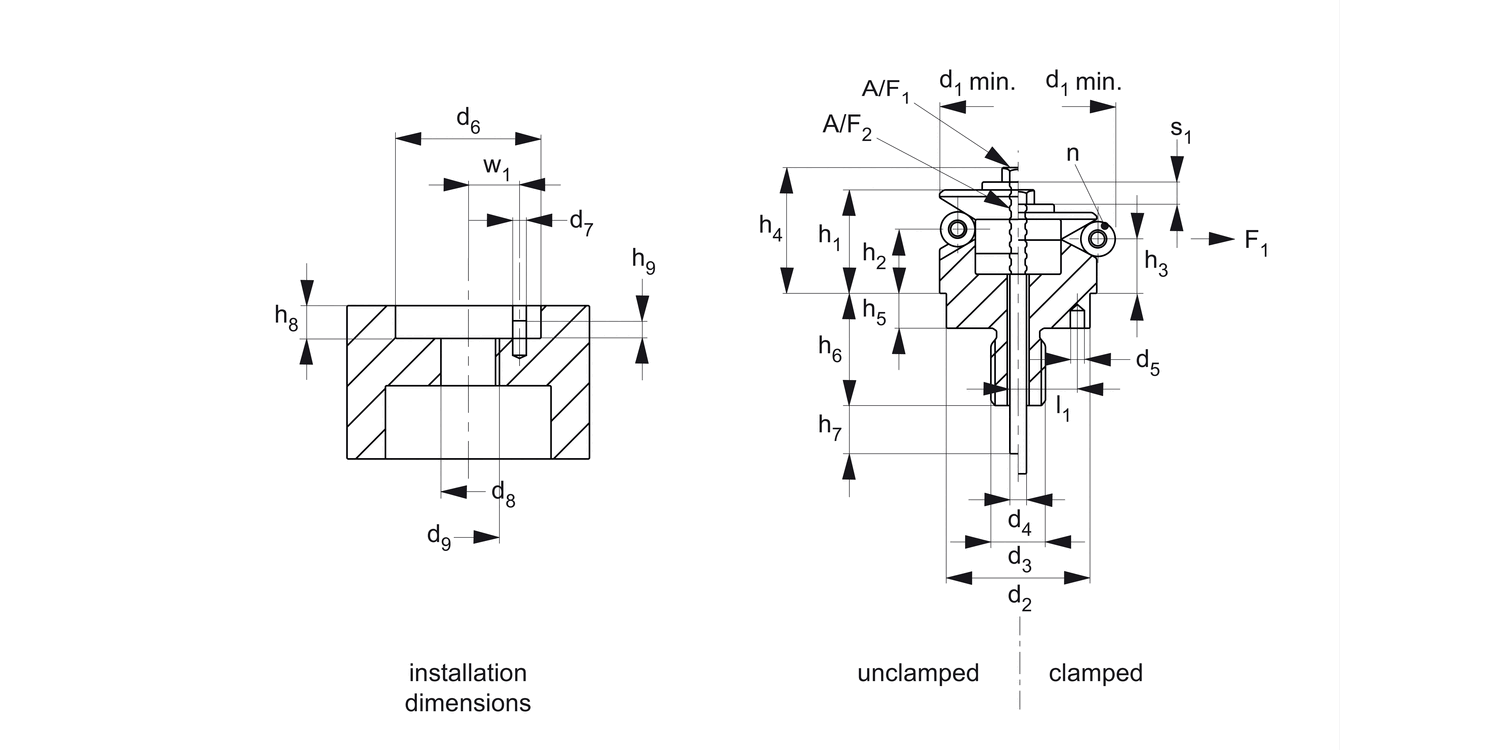

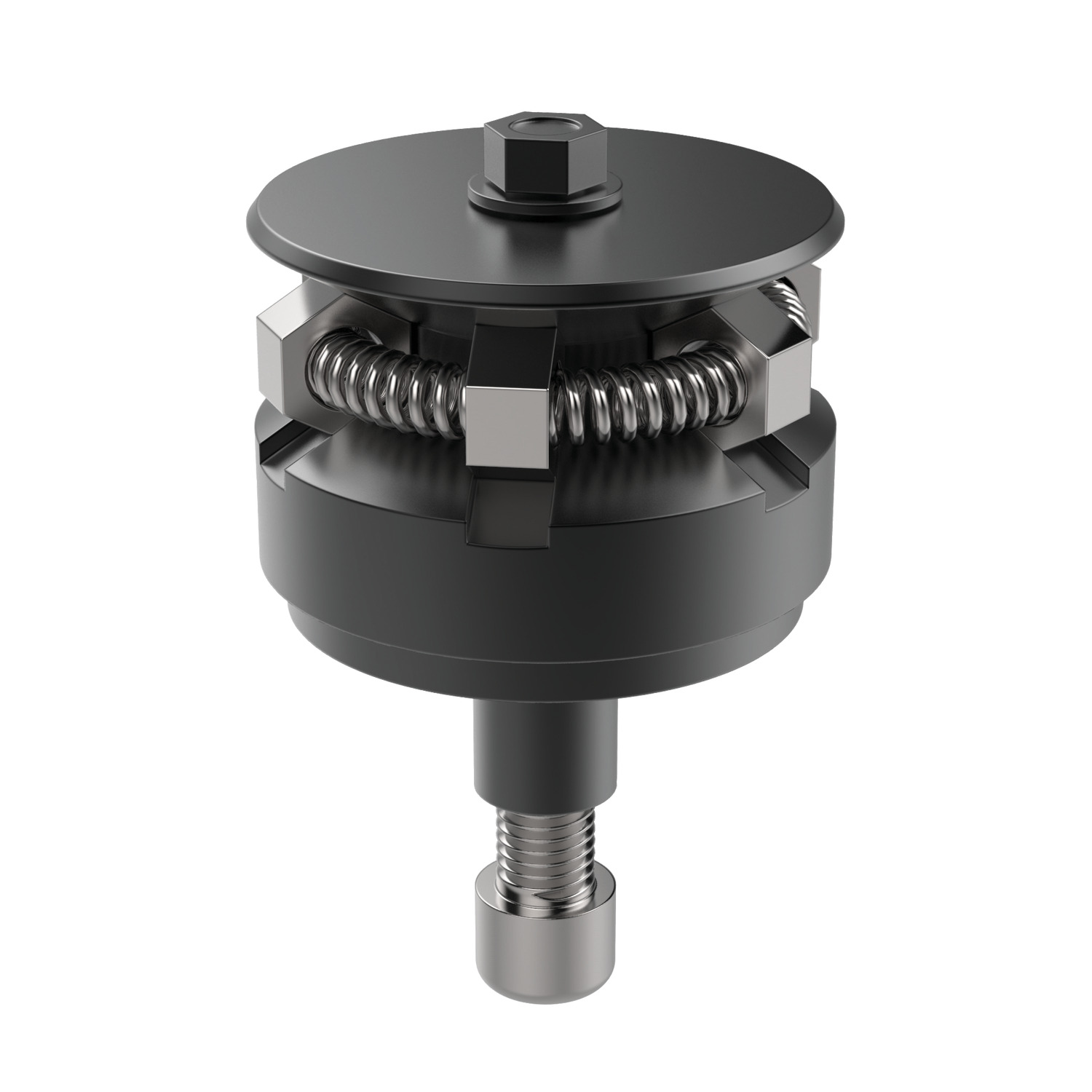

12072 Internal Centering Clamps
rear actuated, for casts and forgings, material: Tool steel
Order No.
12072.W0222
h1
19.6
h2
14.1
h3
12.9
l1
±0.1
7.0
w1
±0.1
7.0
d1
min.
22.5
d1
max.
26.5
d2
tol. f7
20
d3
M10
d4
M 5
d5
+0.3
3.0
d6
tol. H7
20
d7
3.0
d8
10
Weight
g
77
d9
M10
h4
-2
24.3
h5
6.0
h6
+1
17.4
h7
≈
15
h8
+0.5
6.0
h9
3.5
Stroke s1
2.3
A/F1
8.0
A/F2
6
A/F3
16
Torque to
max.
Nm
10
Clamping force F1
kN
4.5
Ball dia.
4.0
Number of balls n
3
£ 483.16 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 483.16 | 0% |
| 3-4 | £ 459.00 | 5% |
| 5-9 | £ 434.84 | 10% |
| 10+ | £ 410.69 | 15% |
Technical & Application
Material
Body: tool steel, blackened.
Top cone: case hardened stainless steel 1.4112, blackened and ground.
Ball: stainless steel, 1.4034. hardened and ground.
Spring: stainless steel, 1.4310 (AISI 301).
Technical Notes
Suitable for concentric positioning and chucking inside holes, provided that small ball impressions can be accepted.
Pull down version can be actuated from rear either manually, or via pneumatic of hydraulic cylinder attached to thread "d4" at rear of clamp.
For deep installation applications, "d2 max." must be maintained for clearance.
A locking pin can be used for precise ball positioning.
Repeatability and rotational accuracy, ±0,025.
Tips
Suitable for; machining centres, welding devices, transfer units, assembly units etc.
Important Notes
If machining delicate components, see parts 12062.
