Pin Face Spanners
adjustable

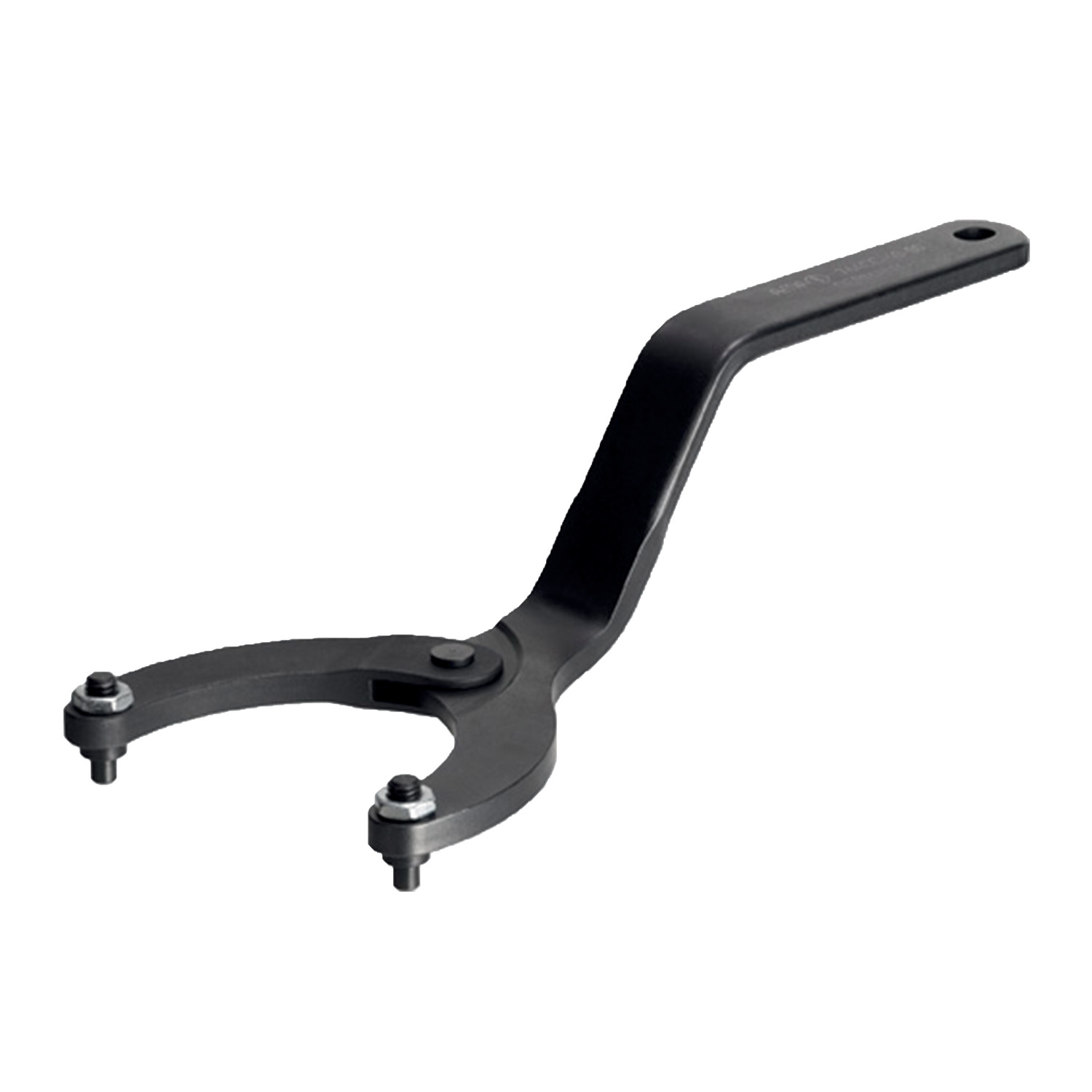

95353 Adjustable Face Spanner - Cranked
with replaceable pins, material: Steel
Order No.
95353.W0081

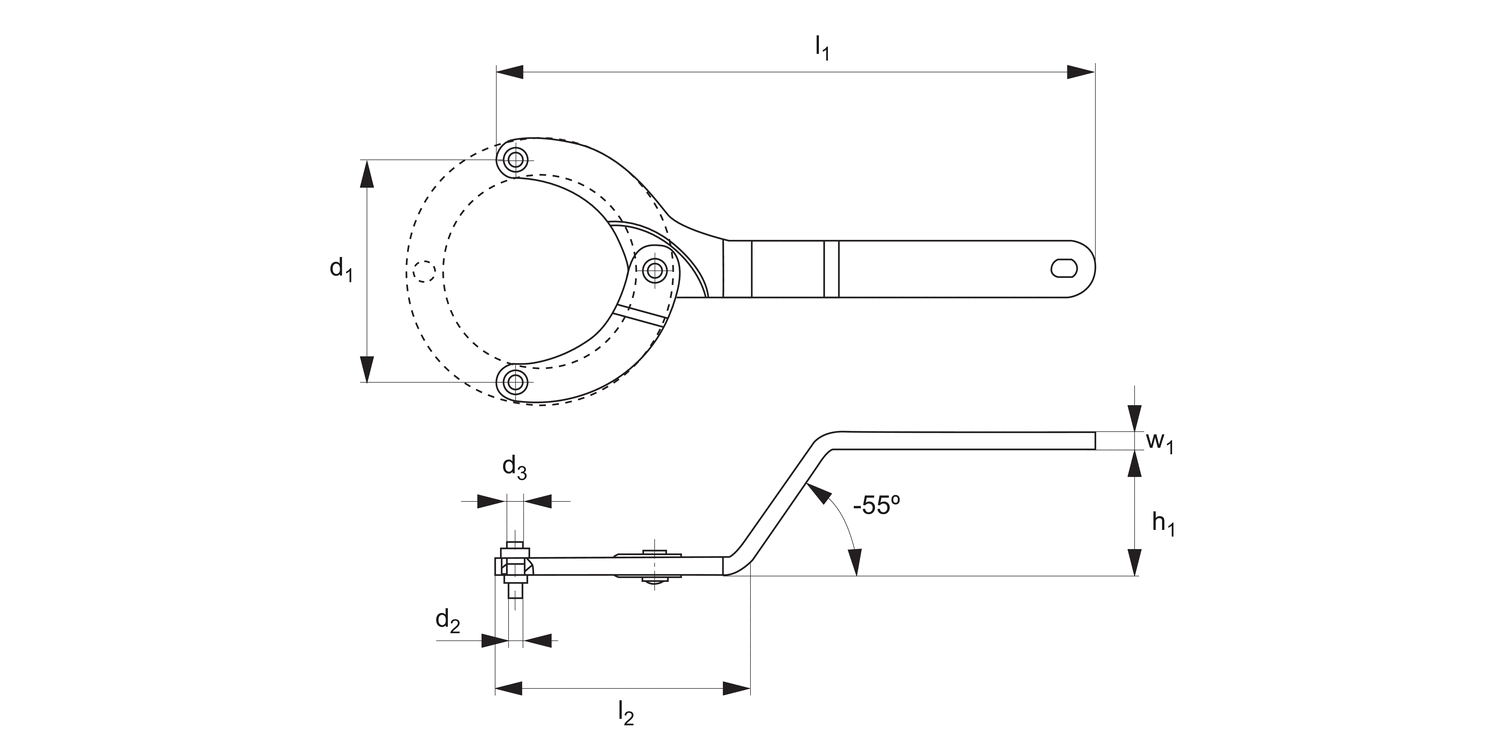

d1 for nut Ø
40-80
d2
-0.1
4
d3
M 6
h1
45
l1
215
l2
92
w1
6
Weight
g
290
£ 69.35 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 69.35 | 0% |
| 5-9 | £ 65.88 | 5% |
| 10-19 | £ 62.42 | 10% |
| 20+ | £ 58.95 | 15% |
Technical & Application
Material
Spanner: steel C35/C45, hardened, with blue finish.
Pins: hardened steel, blackened.
Technical Notes
Pin diameter = nominal diameter -0,1mm (tolerance class h12). See part 95360 for replacement pins.
