Clamping Module - Single
flanged

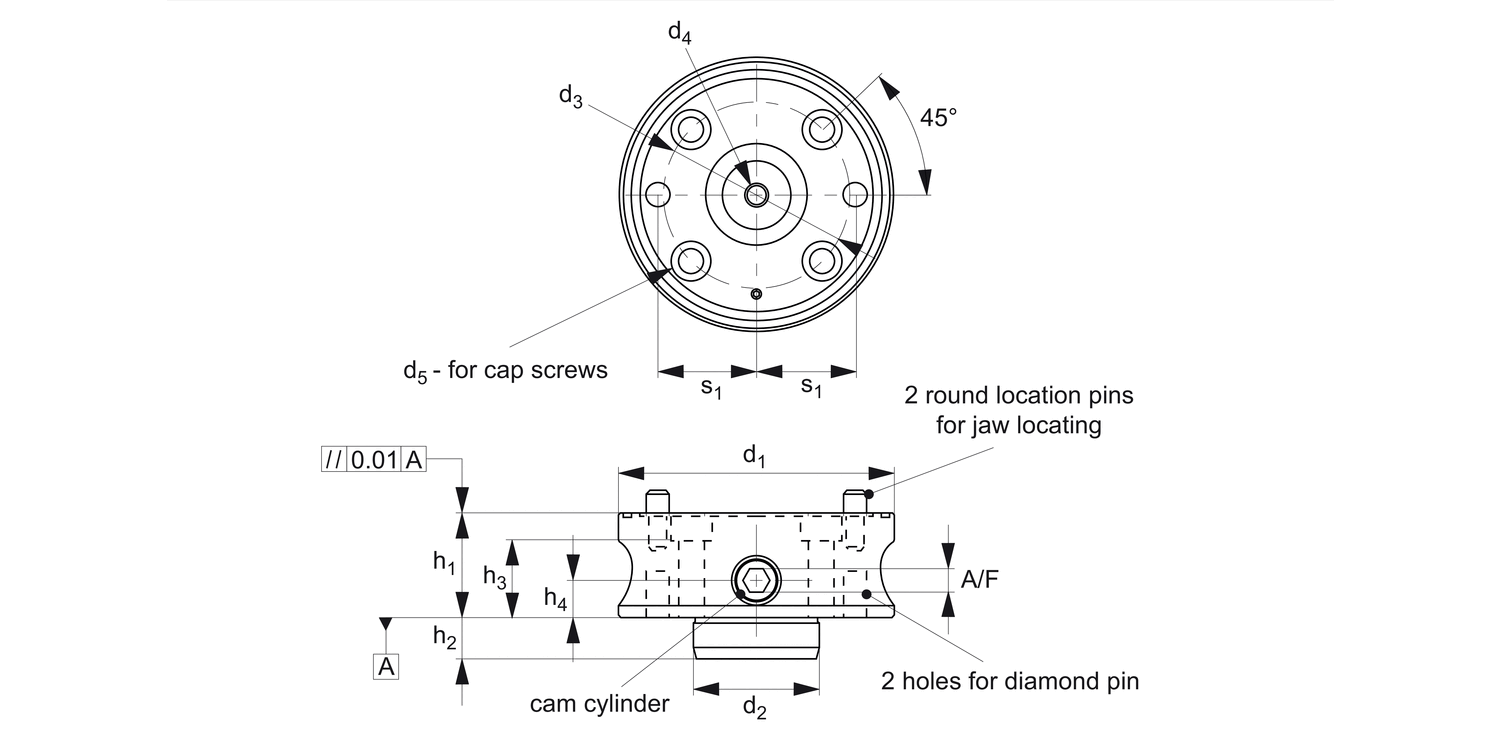

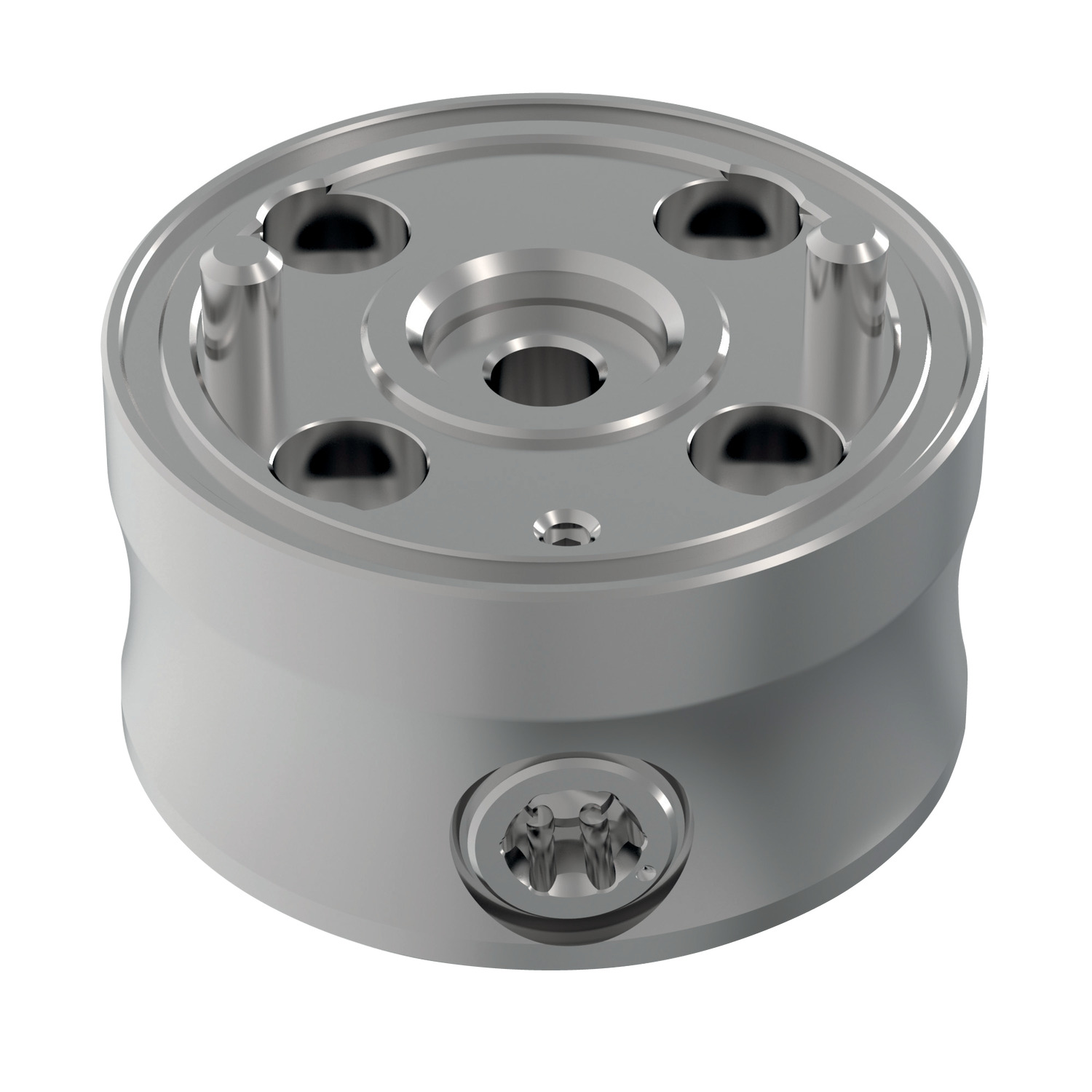

12055.1 Flexible Form Clamping Base
use with flexible form holding jaws 12056 or 12057, material: Steel
Order No.
12055.W0065
h1
±0.01
35
h2
27
h3
12
Type
Base
Size
65
d1
65
d2
tol. G6
28
d3
42
d4
M 8x1,25
d5
M 6
h4
12
Stroke s1
±0.02
22
A/F
8
Torque to
max.
Nm
15
External form no. 12056 clamping force
kN
4.5
Internal form no. 12057 clamping force
kN
4.5
Weight
g
800
£ 903.25 per unit (click for quantity discounts)
Ready to despatch 5
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 903.25 | 0% |
| 10-19 | £ 812.93 | 10% |
| 20-49 | £ 767.76 | 15% |
| 50-99 | £ 722.60 | 20% |
| 100+ | £ 632.28 | 30% |
Technical & Application
Material
Body: steel.
Technical Notes
For use with jaws part no.s 12056 and 12057 for clamping on the external of a component (jaw no. 12056) or for clamping on internal bore of a component (jaw no. 12057). Order jaws separately.
Supplied with one diamond locating pin to suit.
Can achieve part location repeatability of ± 0,03 and jaw repeatability of ± 0,02. Max. clamping stroke of 0,3mm diameter.
To prevent damage or deformation, do not tighten the cam cylinder without a holding jaw installed.
