Concealed Pivot Hinges
20mm door rtn - weld-stud
S2121 Concealed Pivot Hinges - Lift Off
20-24mm door return - weld and oval head screw, material: Steel
Order No.
S2121.AW0024
Door return
24.5
Size
60,0 x 38,5 x 24,5
Fx
N
350
Fy
N
778
mc
min.
3
ts panel thickness
2.0
£ 3.20 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 3.20 | 0% |
| 20-49 | £ 2.88 | 10% |
| 50-99 | £ 2.72 | 15% |
| 100-499 | £ 2.40 | 25% |
| 500+ | £ 2.08 | 35% |
Technical & Application
Material
Hinge & pin: steel, white zinc plated.
Technical Notes
Suited to sheet metal and machine enclosures with door return of 20-24mm. Main body mounted via two M6 screws, hinge plate welded to frame.
Removable hinge pin enables easy installation, and is held in place via circlip. Max. opening angle 120°.
Important Notes

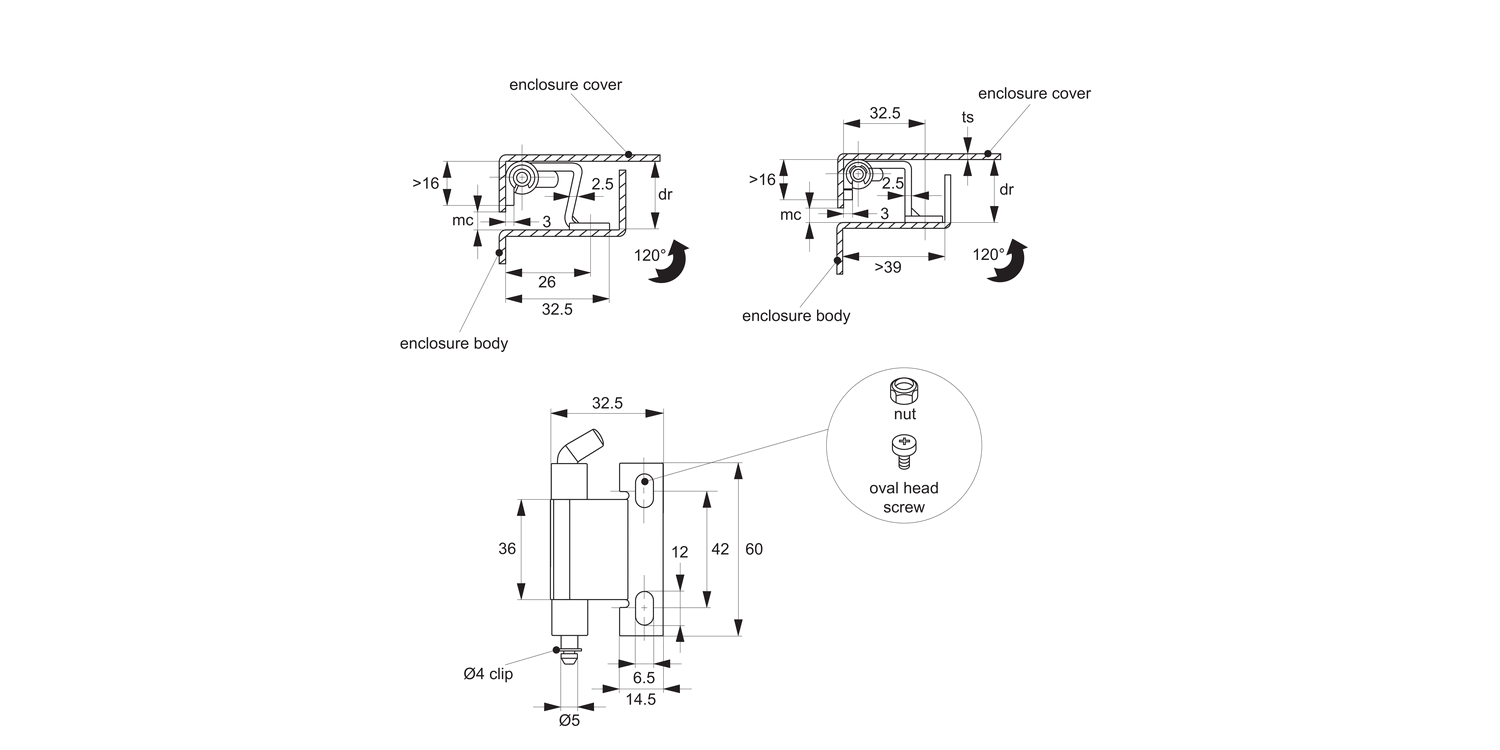

dr= Maximum door return suitable for use with hinge.
mc= Minimum clearance advised between enclosure cover and body to ensure smooth, full opening of enclosure cover.
Product Datasheets

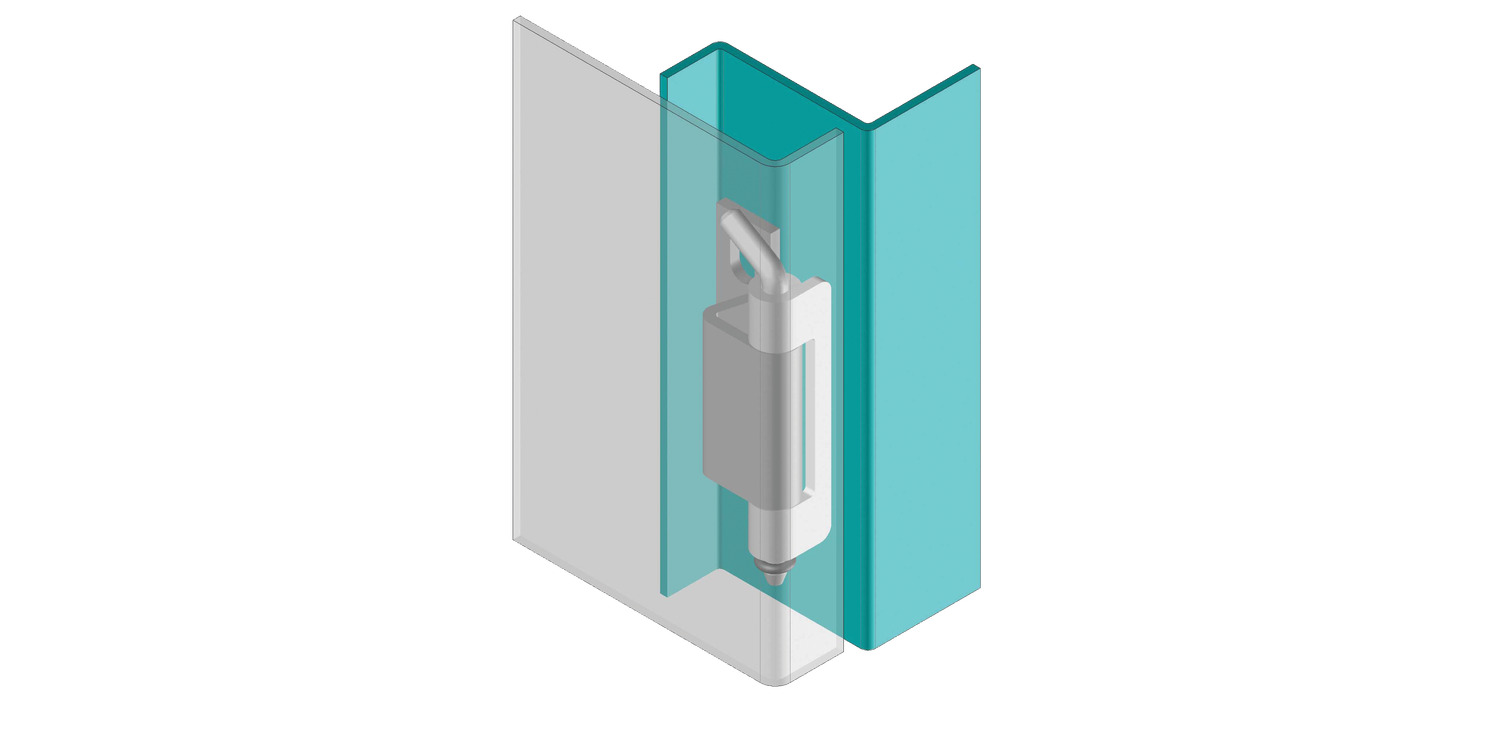

Application images
