Concealed Pivot Hinges
20mm door rtn - weld-stud
S2155 Concealed Pivot Hinges - Lift Off
19mm door return - weld and oval head screw - stainless steel, material: Stainless steel
Alternative products you may wish to consider
Door return
19
Size
117 x 24 x 19
Fx
N
500
Fy
N
980
mc
min.
5
ts panel thickness
2.0
£ 12.44 per unit (click for quantity discounts)
Door return
Size
Fx
N
Fy
N
mc
min.
ts panel thickness
| Price & Availability | Article | Door return | Size | Fx N | Fy N | mc min. | ts panel thickness | ||||||||||||||||||
| S2155.AW0019 | 19 | 117 x 24 x 19 | 500 | 980 | 5 | 2.0 | |||||||||||||||||||
£ 12.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Door return 19 Size 117 x 24 x 19 Fx
N 500 Fy
N 980 mc
min. 5 ts panel thickness 2.0 | |||||||||||||||||||||||||
Technical & Application
Material
Hinge & pin: stainless steel.
Technical Notes
Opening angle 140°.
Important Notes
Suited to sheet metal and machine enclosures with a 19mm door return. Main body mounted via two M5 screws, hinge plate welded to frame.
Removable hinge pin enables easy installation, and is held in place by split clip.
Product Datasheets

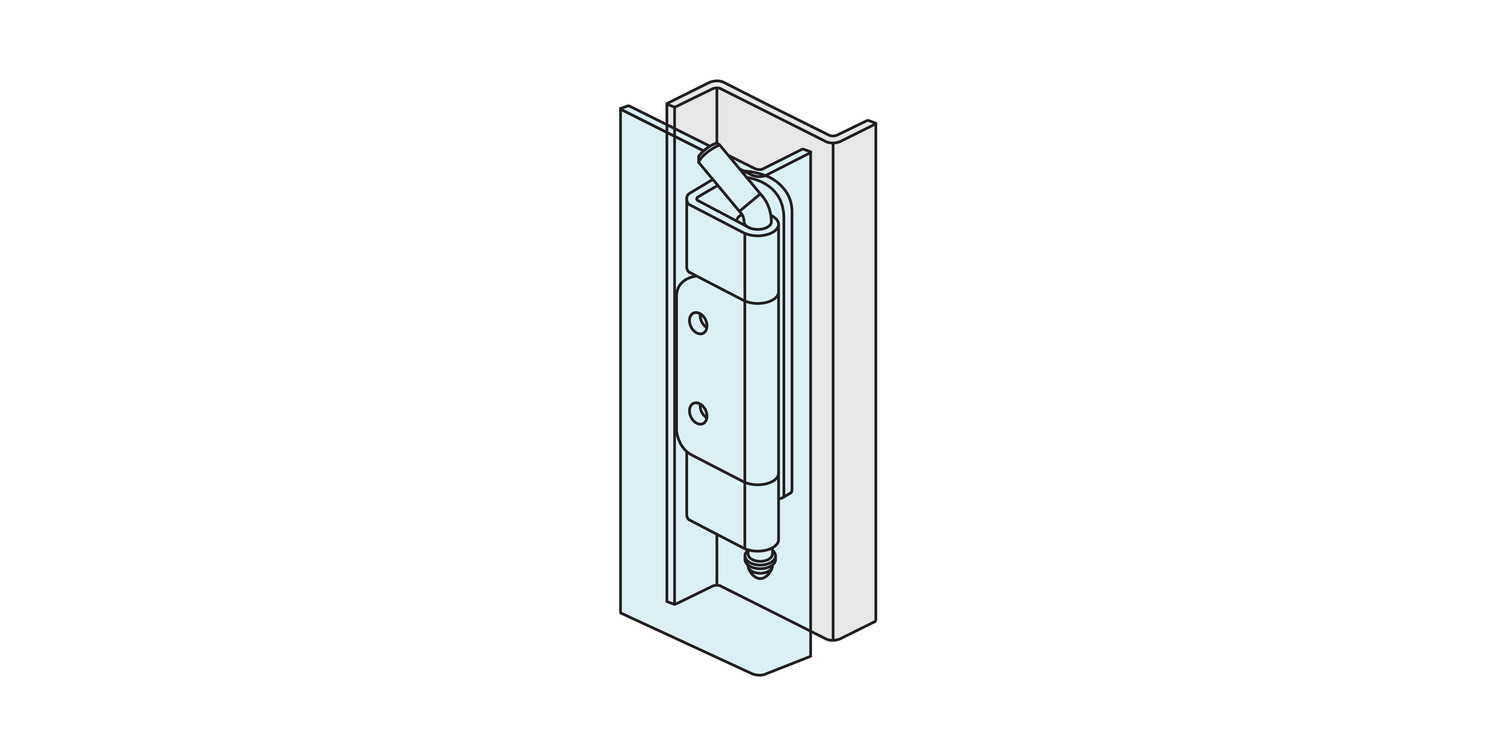

Application images
