Concealed Pivot Hinges
20mm door rtn - weld-stud
S2250 Concealed Pivot Hinges - Integral Stay
screw mount - stainless steel, material: Stainless steel
Alternative products you may wish to consider
£ 24.24 per unit (click for quantity discounts)
Type
Weight
g
| Price & Availability | Article | Type | Weight g | ||||||||||||||||||
| S2250.AC0010 | Stainless Steel | 190 | |||||||||||||||||||
£ 24.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless Steel Weight
g 190 | |||||||||||||||||||||
Technical & Application
Material
Stainless steel, AISI 304.
Technical Notes
Combined hinge and stay easily installed/removed via installation pin. Ideal for removal of machine/equipment covers for maintenance.
Tips
Particularly suited to gaming industry. Nature of hinges movement enables machine cover and body to be fully sealed to prohibit tampering or interference.
Important Notes
Suitable for doors up to10Kg (as pair).
Holding force: 30kgf/cm each.

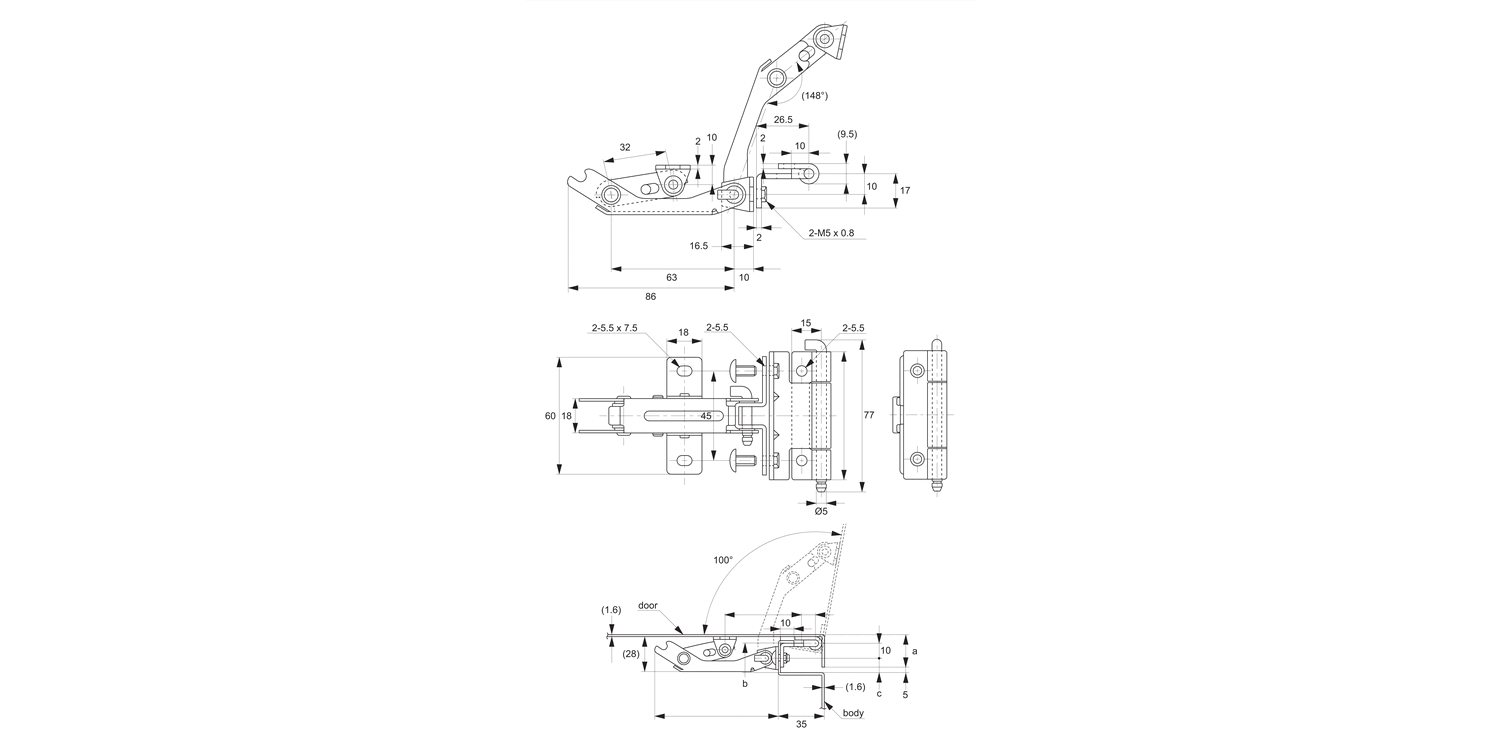

Product Datasheets

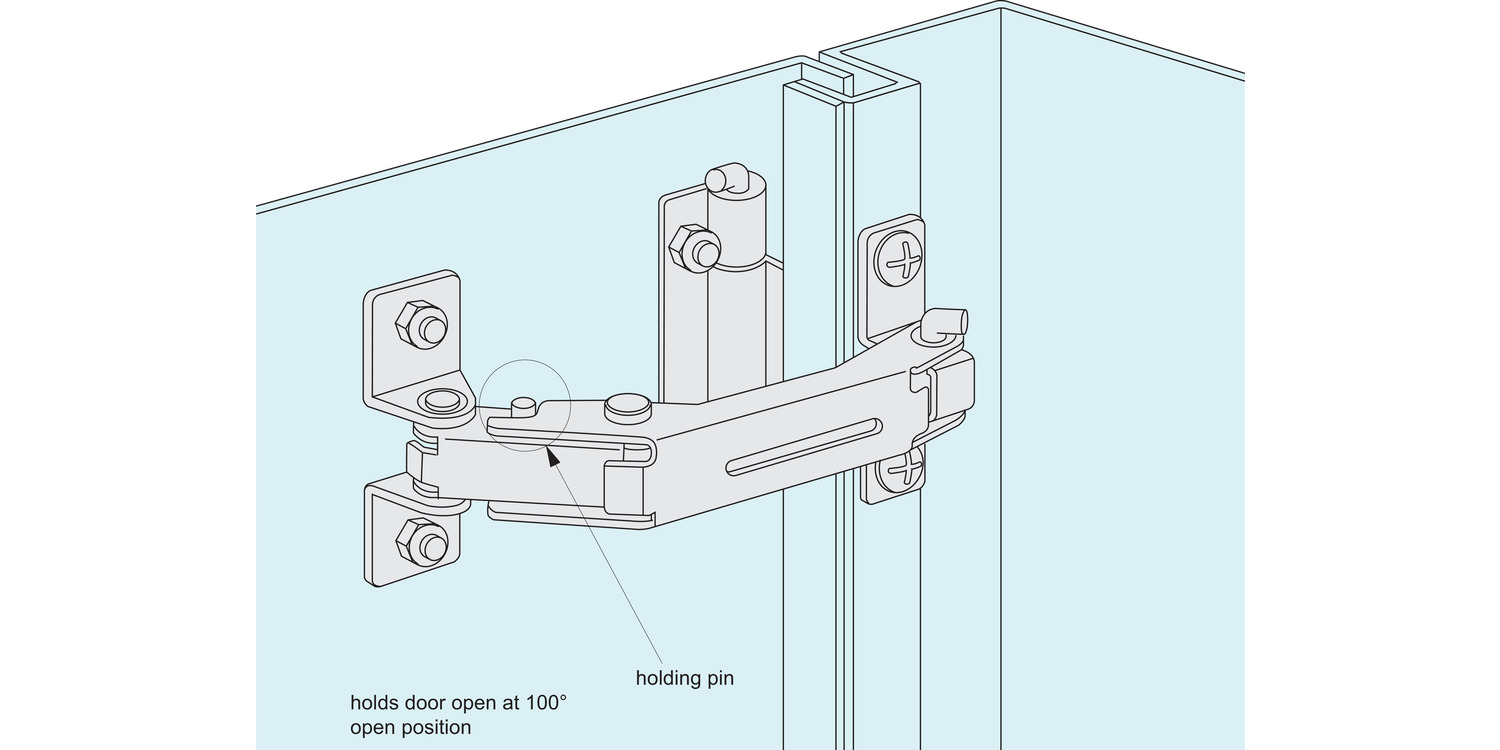

Application images
