Concealed Pivot Hinges
20mm door rtn - weld-stud

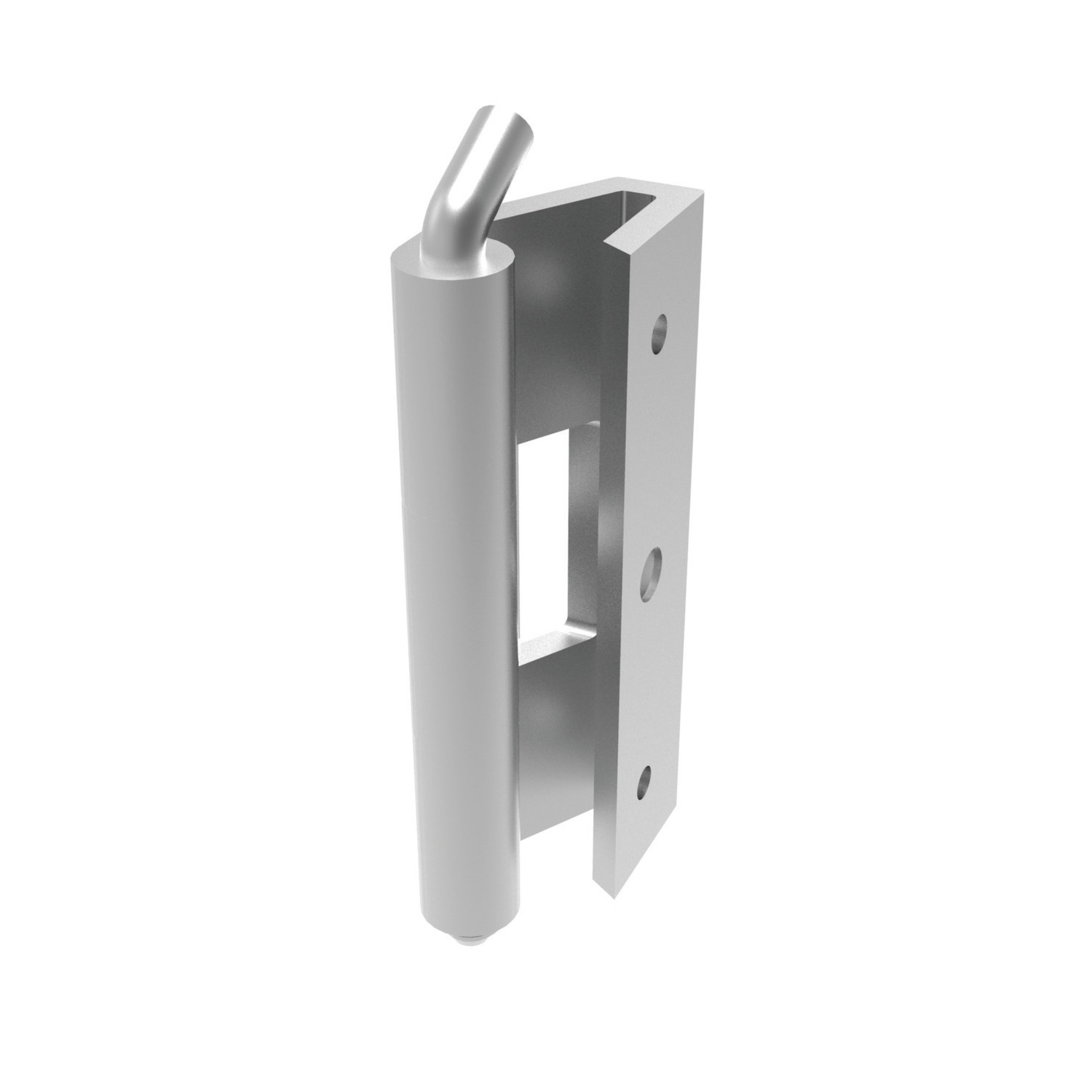

S2153 Concealed Pivot Hinges - Lift Off
22mm door return - weld and countersunk screw - zinc, material: Zinc
Alternative products you may wish to consider
Door return
22
Size

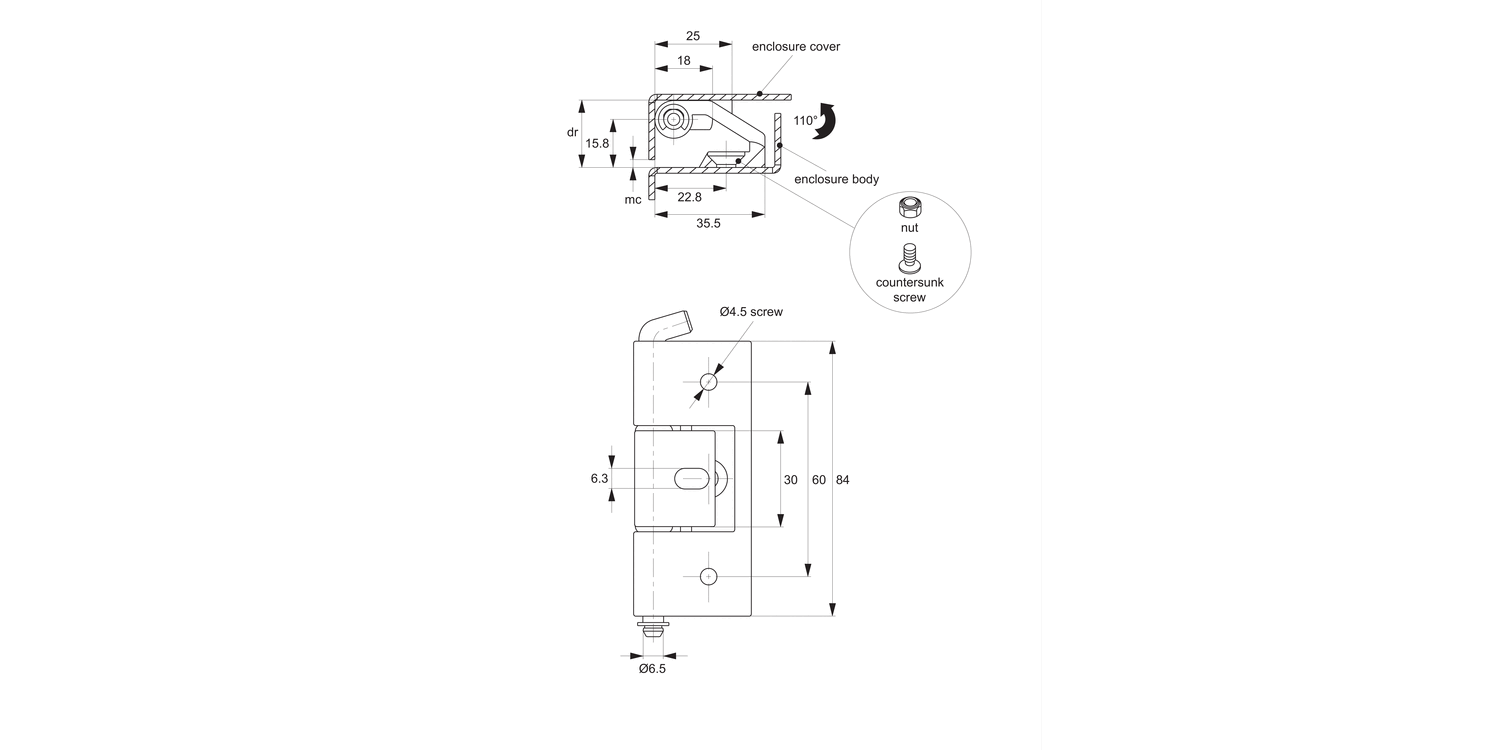

60 x 33,5 x 22
Fx
N
720
Fy
N
830
mc
min.
3
ts panel thickness
2
£ 7.43 per unit (click for quantity discounts)
Door return
Size
Fx
N
Fy
N
mc
min.
ts panel thickness
| Price & Availability | Article | Door return | Size | Fx N | Fy N | mc min. | ts panel thickness | ||||||||||||||||||
| S2153.AW0022 | 22 | 60 x 33,5 x 22 | 720 | 830 | 3 | 2 | |||||||||||||||||||
£ 7.43 per unit (click for quantity discounts) Ready to despatch 107 Need more? Please call us.
Door return 22 Size 60 x 33,5 x 22 Fx
N 720 Fy
N 830 mc
min. 3 ts panel thickness 2 | |||||||||||||||||||||||||
Technical & Application
Material
Hinge: die cast zinc.
Pin: steel.
Gasket: polyamide.
Technical Notes

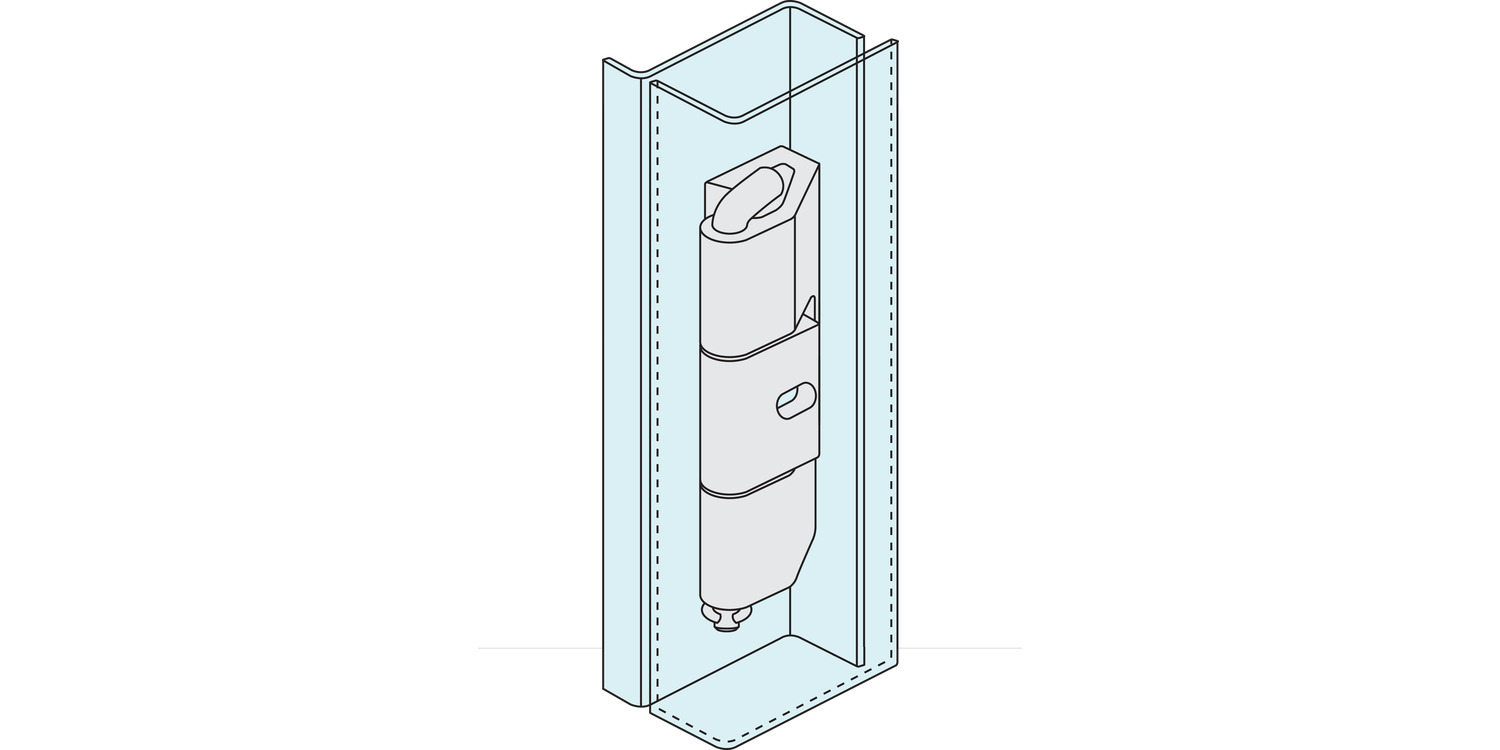

Suited to sheet metal and machine enclosures with a 22mm door return. Main body mounted via two M4 screws, hinge plate welded to frame.
Removable hinge pin enables easy installation, and is held in place via circlip.
Max. opening angle 110°.
