Concealed Pivot Hinges
20mm door rtn - weld-stud
S2156 Concealed Pivot Hinges - Lift Off
23mm door return - weld and locking screw - stainless steel, material: Stainless steel
Alternative products you may wish to consider
Door return
23
Size
90 x 27,5 x 23
a
27.5
b
16.5
c
11.0
Fx
N
500
Fy
N
980
mc
min.
5
ts panel thickness
2.5
£ 15.51 per unit (click for quantity discounts)
Door return
23
Size
90 x 33,5 x 23
a
33.5
b
22.0
c
14.5
Fx
N
500
Fy
N
980
mc
min.
5
ts panel thickness
2.5
£ 15.51 per unit (click for quantity discounts)
Door return
Size
a
b
c
Fx
N
Fy
N
mc
min.
ts panel thickness
| Price & Availability | Article | Door return | Size | a | b | c | Fx N | Fy N | mc min. | ts panel thickness | ||||||||||||||||||
| S2156.AW0023 | 23 | 90 x 27,5 x 23 | 27.5 | 16.5 | 11.0 | 500 | 980 | 5 | 2.5 | |||||||||||||||||||
£ 15.51 per unit (click for quantity discounts) Ready to despatch 1 Need more? Please call us.
Door return 23 Size 90 x 27,5 x 23 a 27.5 b 16.5 c 11.0 Fx
N 500 Fy
N 980 mc
min. 5 ts panel thickness 2.5 | ||||||||||||||||||||||||||||
| S2156.AW0123 | 23 | 90 x 33,5 x 23 | 33.5 | 22.0 | 14.5 | 500 | 980 | 5 | 2.5 | |||||||||||||||||||
£ 15.51 per unit (click for quantity discounts) Ready to despatch 25 Need more? Please call us.
Door return 23 Size 90 x 33,5 x 23 a 33.5 b 22.0 c 14.5 Fx
N 500 Fy
N 980 mc
min. 5 ts panel thickness 2.5 | ||||||||||||||||||||||||||||
Technical & Application
Material
Hinge & shaft: stainless steel. AISI 304.
Technical Notes
Opening angle 120°. Suited to sheet metal and machine enclosures with a 23mm door return. Main body mounted via two M5 screws, hinge plate welded to frame (copper plated for improved welding).
Removable hinge pin enables easy installation, and is held in place by clip.
Important Notes
dr= Maximum door return suitable for use with hinge.
mc= Minimum clearance advised between enclosure cover and body to ensure smooth, full opening of elclosure cover.
Product Datasheets

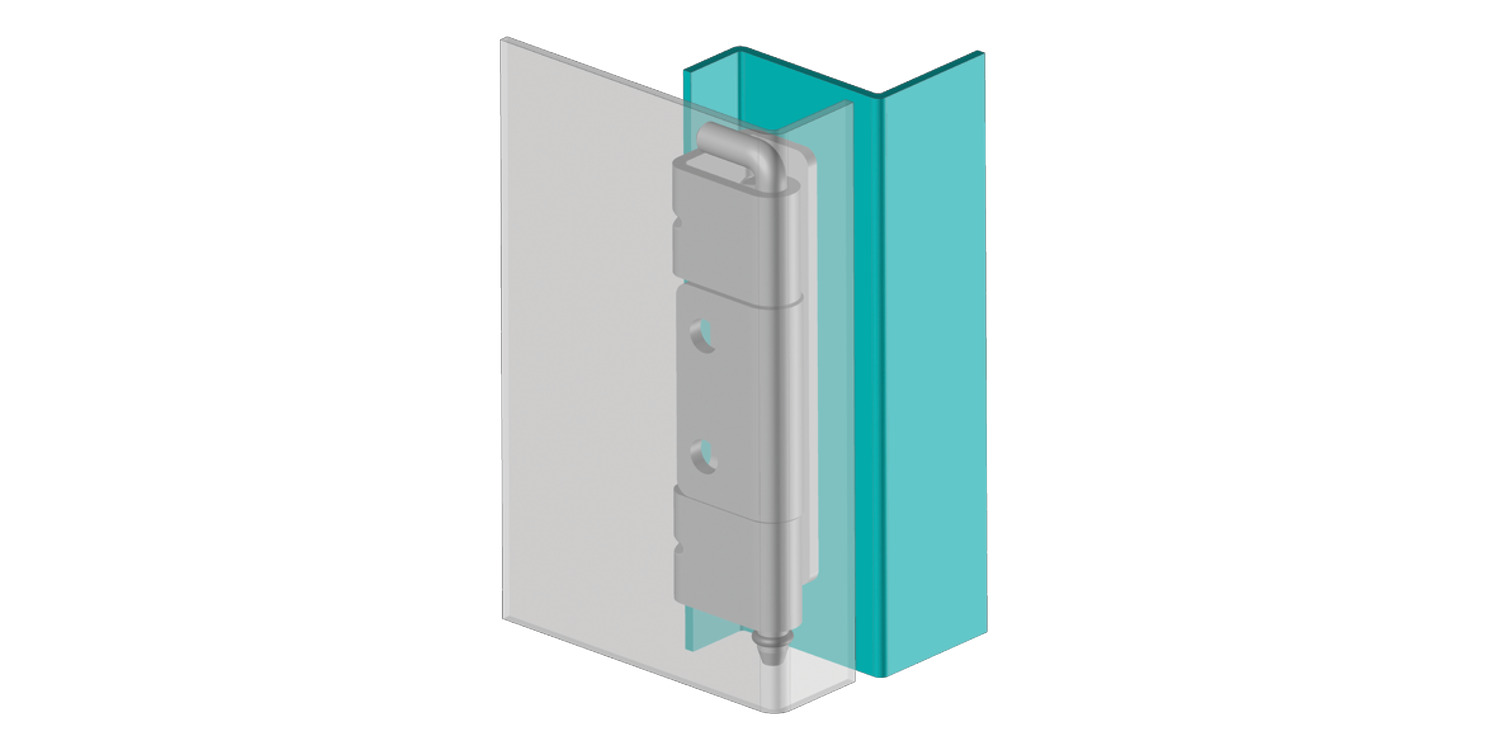

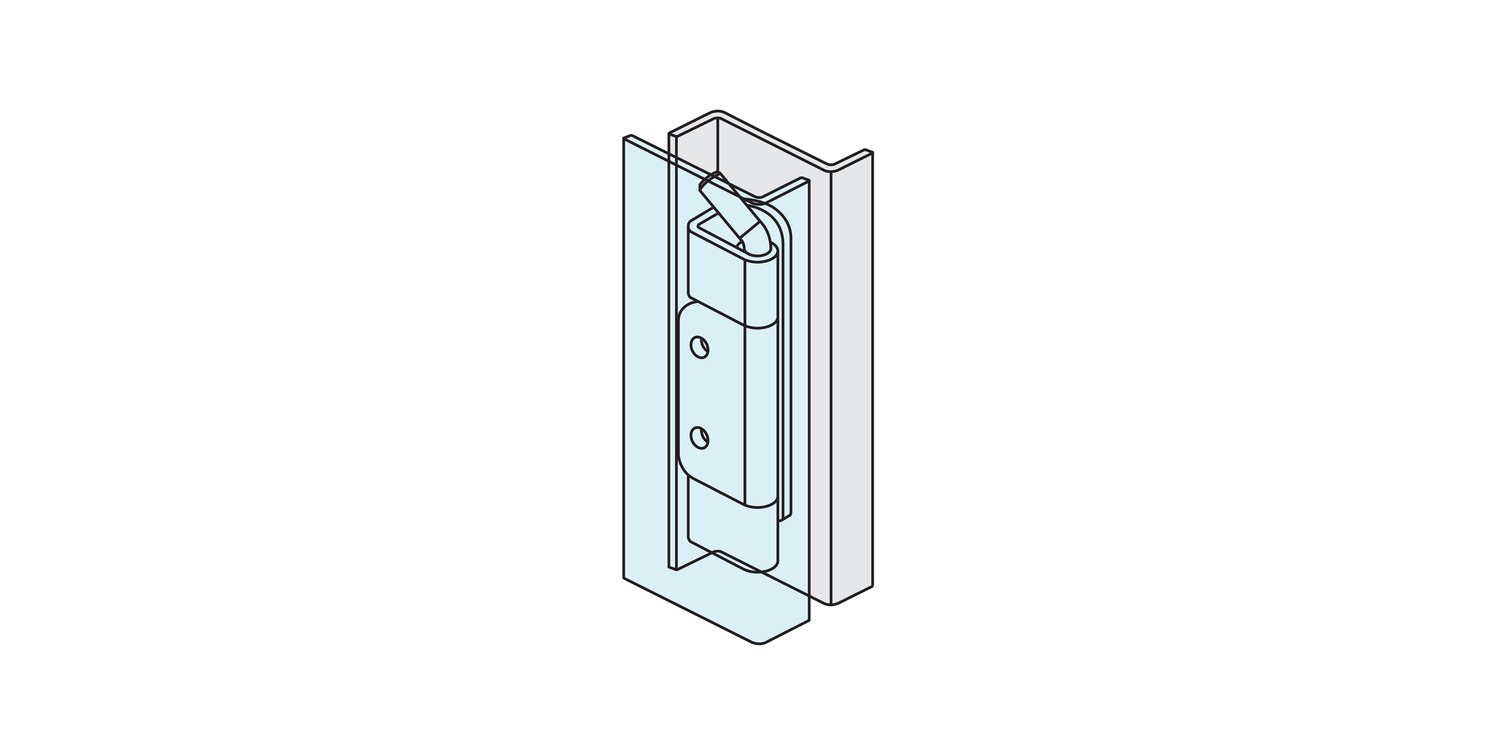

Application images
