S2156 Concealed Pivot Hinges - Lift Off

Name: S2156.AW0023
Brand: WC
SKU: S2156.AW0023
Price: 15.51 EUR
Availability: InStock

23mm door return - weld and locking screw - stainless steel, material: Stainless steel

Article properties

Order No.

S2156.AW0023

Door return

Size

90 x 27,5 x 23

27.5

16.5

11.0

F_x N

500

F_y N

980

mc min.

ts panel thickness

2.5

See full product selection

£ 15.51 per unit (click for quantity discounts)

Ready to despatch 1
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 15.51	0%
20-49	£ 13.96	10%
50-99	£ 13.18	15%
100-499	£ 11.63	25%
500+	£ 10.08	35%

Download product datasheet

Technical & Application

Material

Hinge & shaft: stainless steel. AISI 304.

Technical Notes

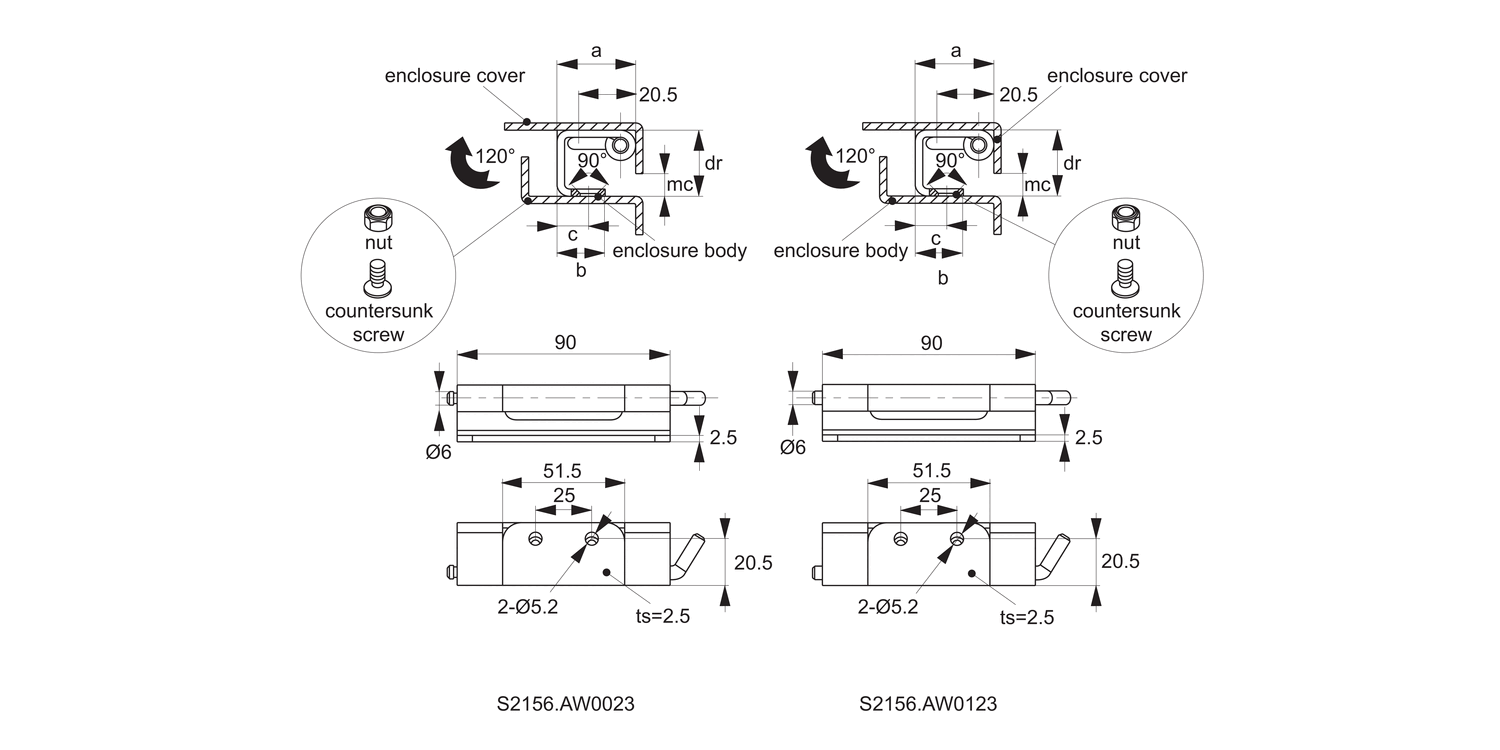

Opening angle 120°. Suited to sheet metal and machine enclosures with a 23mm door return. Main body mounted via two M5 screws, hinge plate welded to frame (copper plated for improved welding).
Removable hinge pin enables easy installation, and is held in place by clip.

Important Notes

dr= Maximum door return suitable for use with hinge.
mc= Minimum clearance advised between enclosure cover and body to ensure smooth, full opening of elclosure cover.
