S2155 Concealed Pivot Hinges - Lift Off

Name: S2155.AW0019
Brand: WC
SKU: S2155.AW0019
Price: 12.44 EUR
Availability: OutOfStock

19mm door return - weld and oval head screw - stainless steel, material: Stainless steel

Article properties

Order No.

S2155.AW0019

Door return

Size

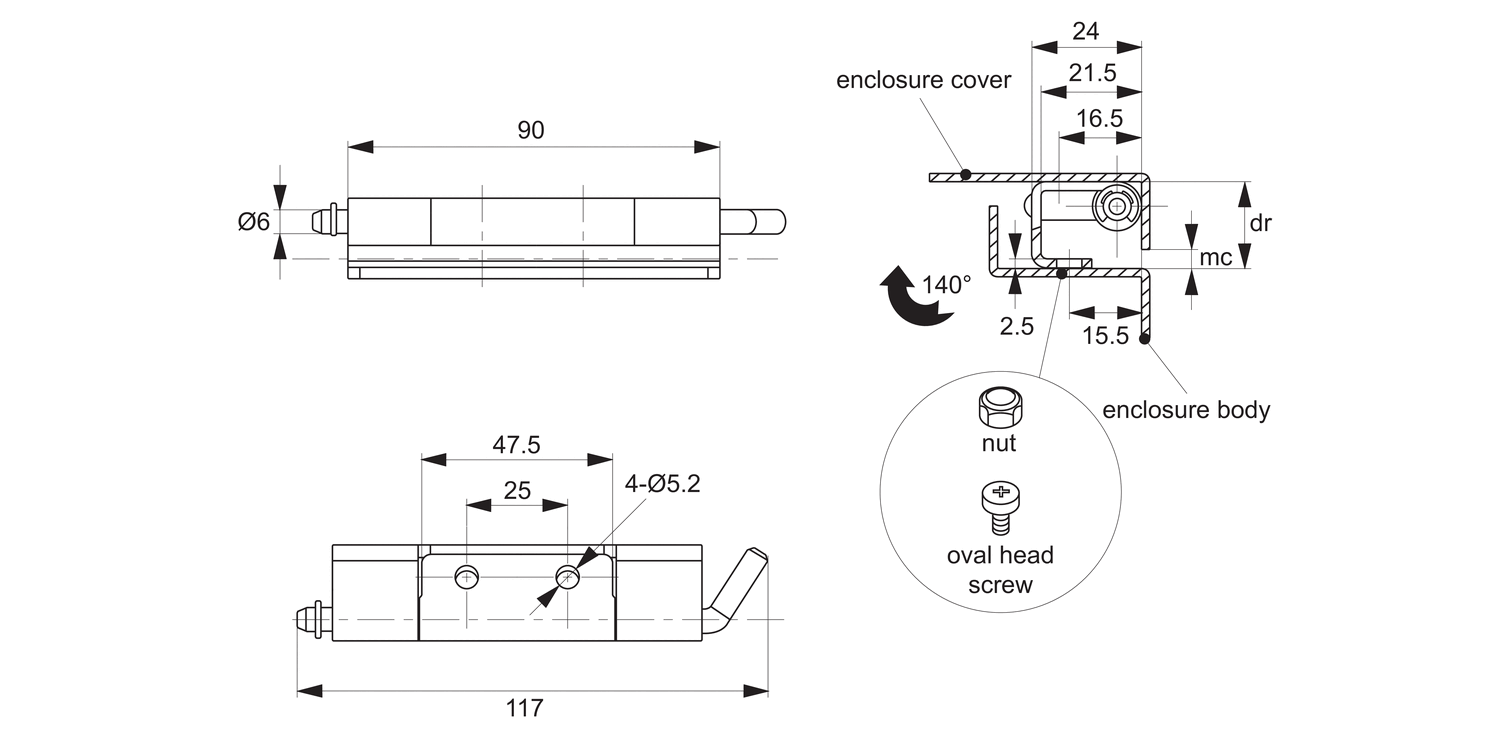

117 x 24 x 19

F_x N

500

F_y N

980

mc min.

ts panel thickness

2.0

See full product selection

£ 12.44 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 12.44	0%
20-49	£ 11.20	10%
50-99	£ 10.57	15%
100-499	£ 9.33	25%
500+	£ 8.09	35%

Download product datasheet

Technical & Application

Material

Hinge & pin: stainless steel.

Technical Notes

Opening angle 140°.

Important Notes

Suited to sheet metal and machine enclosures with a 19mm door return. Main body mounted via two M5 screws, hinge plate welded to frame.
Removable hinge pin enables easy installation, and is held in place by split clip.

Product Datasheets

S2155 Concealed Pivot Hinges - Lift OffJanuary 3, 2025, 3:33 PM / 179.70 kB

Concealed HingesJanuary 3, 2025, 3:35 PM / 1.14 MB

HingesJanuary 3, 2025, 3:35 PM / 7.89 MB

Hinges & DampersJanuary 3, 2025, 3:35 PM / 10.41 MB

Access ComponentsJanuary 3, 2025, 3:35 PM / 32.63 MB
