S2170 Concealed Pivot Hinges - Lift Off

21mm door return - weld and oval head screw - steel, material: Steel

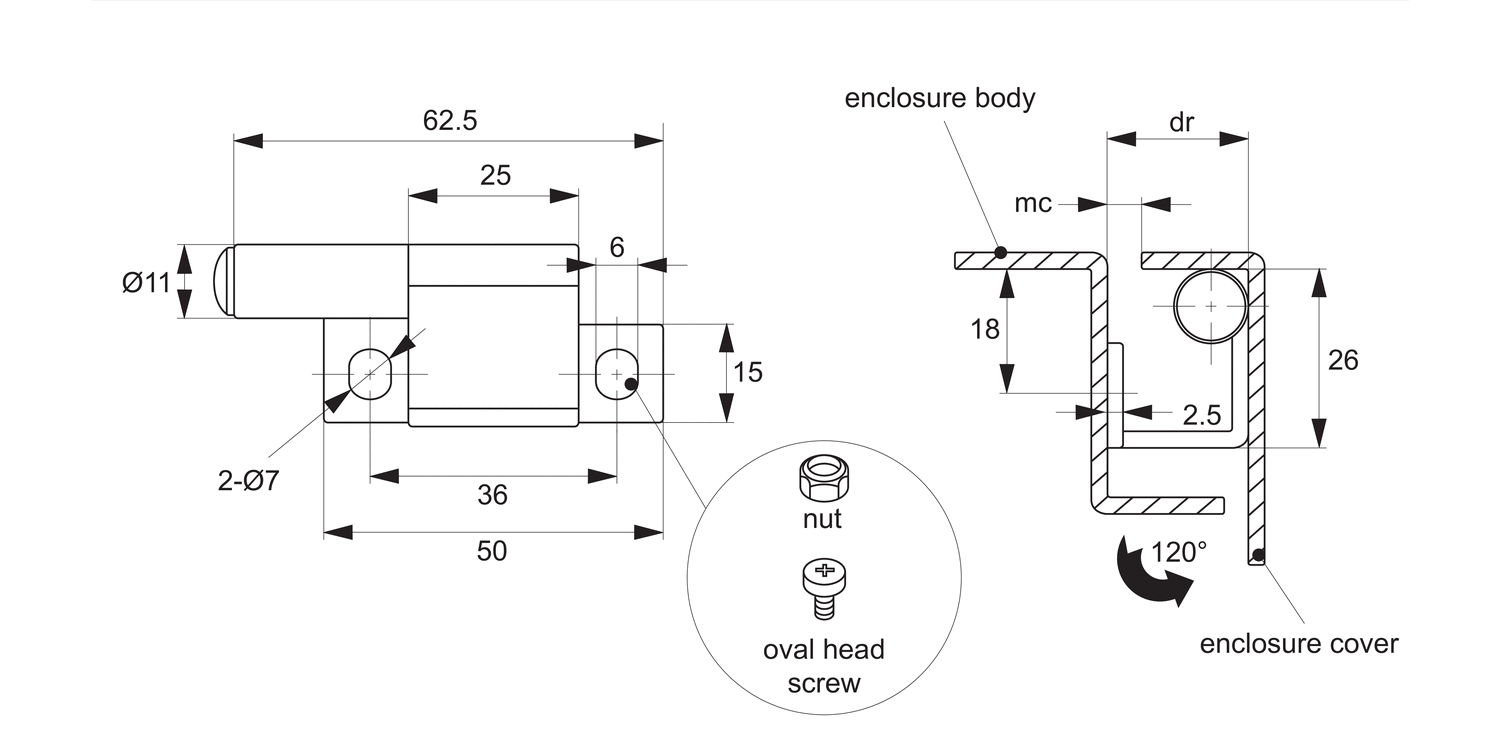

S2170 Concealed Pivot Hinges - Lift Off
S2170 Concealed Pivot Hinges - Lift Off
Article properties
Order No.
S2170.AW0021
Door return
21
Size
50 x 26 x 21
Fx N
200
Fy N
160
mc min.
4
ts panel thickness
2.5
See full product selection
£ 1.83 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1-19£ 1.830%
20-49£ 1.6510%
50-99£ 1.5615%
100-499£ 1.3725%
500+£ 1.1935%
Download product datasheet
Download FREE CAD

Technical & Application

Material

Hinge: steel, white zinc plated.

Technical Notes

Suited to sheet metal and machine enclosures with a 21mm door return. Main body mounted via two M7 screws, hinge plate welded to frame.
Opening angle: 120°.

Important Notes

dr= Maximum door return suitable for use with hinge.
mc= Minimum clearance advised between enclosure cover and body to ensure smooth, full opening of enclosure cover.

Product Datasheets

S2170 Concealed Pivot Hinges - Lift OffJanuary 3, 2025, 3:33 PM / 163.36 kB
Concealed HingesJanuary 3, 2025, 3:35 PM / 1.14 MB
HingesJanuary 3, 2025, 3:35 PM / 7.89 MB
Hinges & DampersJanuary 3, 2025, 3:35 PM / 10.41 MB
Access ComponentsJanuary 3, 2025, 3:35 PM / 32.63 MB

CAD files

S2170 AcisApril 17, 2024, 10:23 AM / 19.71 kB
S2170 IGESApril 17, 2024, 10:23 AM / 55.79 kB
S2170 ParasolidApril 17, 2024, 10:23 AM / 21.27 kB
S2170 ProEApril 17, 2024, 10:23 AM / 93.53 kB
S2170 SolidWorksApril 17, 2024, 10:23 AM / 331.62 kB
S2170 StepApril 17, 2024, 10:23 AM / 26.68 kB

Application images

s2170 application images
