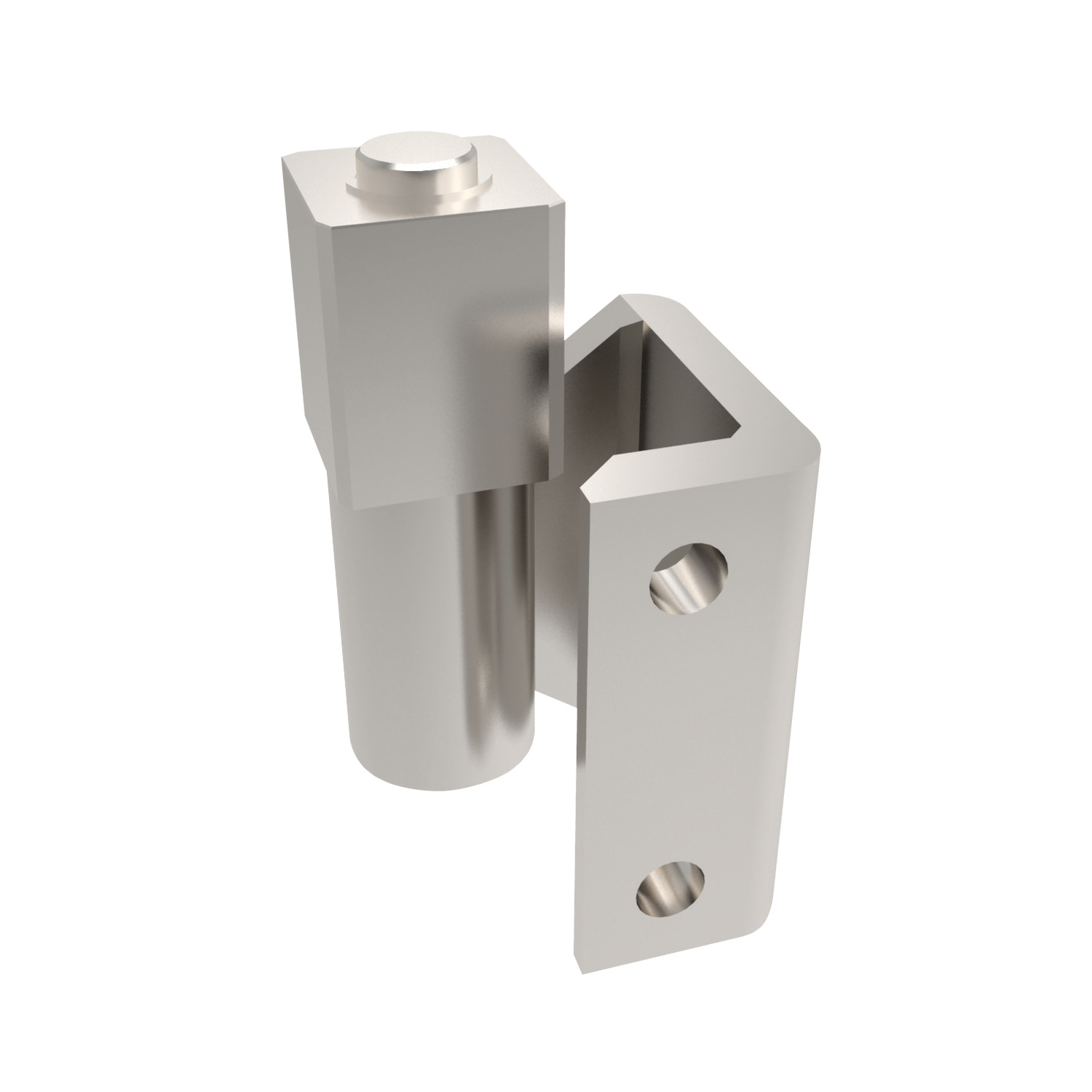

S2172 Concealed Pivot Hinges - Lift Off

45mm door return - weld and locking screw, material: Stainless steel
S2172 Concealed Pivot Hinges - Lift Off
S2172 Concealed Pivot Hinges - Lift Off
Article properties
Order No.
S2172.AW0046
Door return
45
Size
60 x 44 x 45,5
Fx N
2000
Fy N
1500
mc min.
10
ts panel thickness
2.5
See full product selection
£ 31.62 per unit (click for quantity discounts)
Ready to despatch 13
Need more? Please call us.
Buy more & save with our quantity discounts
UnitsPrice/unit
after discount		Applied
Discount
1-19£ 31.620%
20-49£ 28.4610%
50-99£ 26.8815%
100-499£ 23.7225%
500+£ 20.5535%
Download product datasheet
Download FREE CAD

Technical & Application

Material

Hinge: stainless steel, white zinc plated.

Technical Notes

Suited to sheet metal and machine enclosures with a 45mm door return. Main body mounted via two M8 screws, hinge plate welded to frame.
Opening angle: 120°.

Important Notes

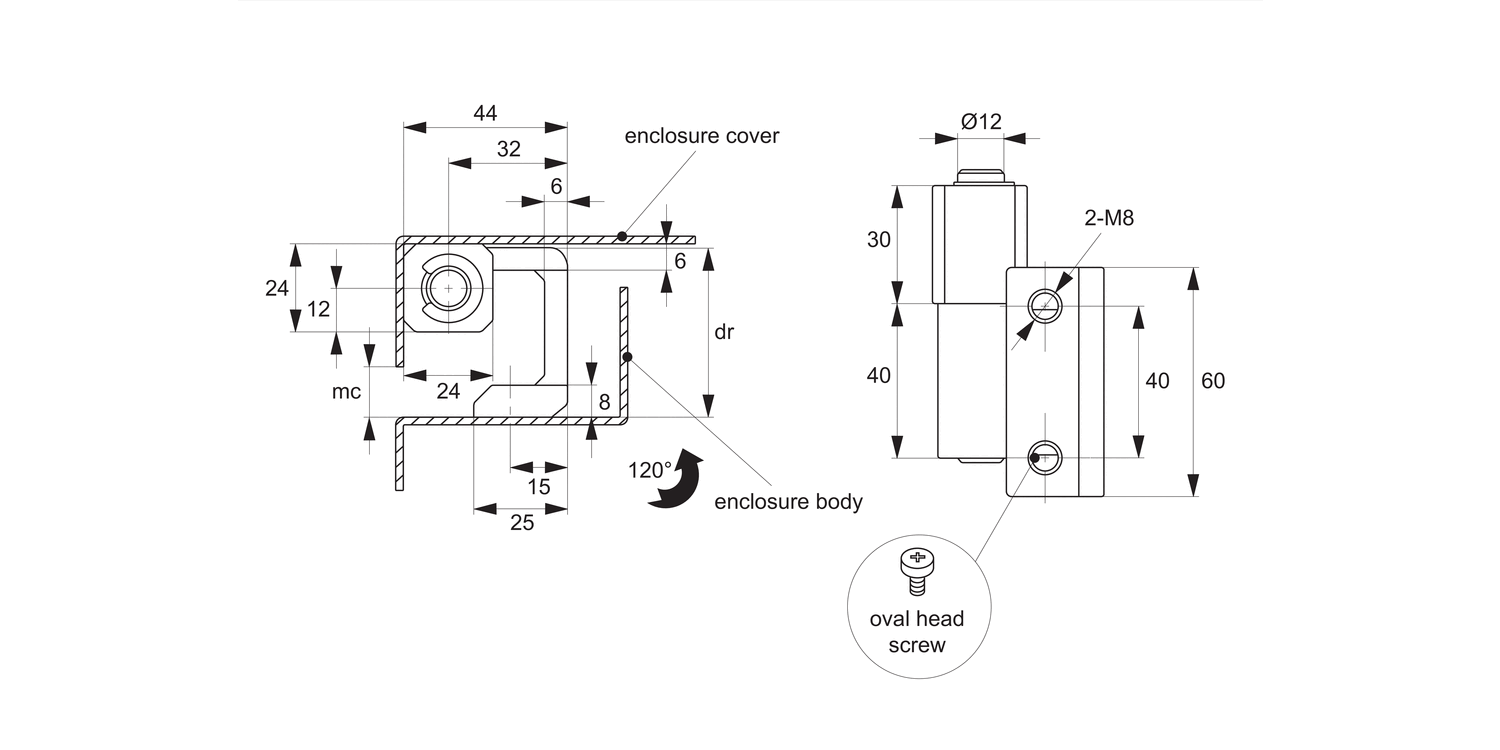

dr= Maximum door return suitable for use with hinge.
mc= Minimum clearance advised between enclosure cover and body to ensure smooth, full opening of enclosure cover.

Product Datasheets

S2172 Concealed Pivot Hinges - Lift OffJanuary 3, 2025, 3:33 PM / 150.96 kB
Concealed HingesJanuary 3, 2025, 3:35 PM / 1.14 MB
HingesJanuary 3, 2025, 3:35 PM / 7.89 MB
Hinges & DampersJanuary 3, 2025, 3:35 PM / 10.41 MB
Access ComponentsJanuary 3, 2025, 3:35 PM / 32.63 MB

CAD files

S2172 AcisApril 17, 2024, 10:23 AM / 29.29 kB
S2172 IGESApril 17, 2024, 10:23 AM / 81.73 kB
S2172 ParasolidApril 17, 2024, 10:23 AM / 27.56 kB
S2172 ProEApril 17, 2024, 10:23 AM / 124.17 kB
S2172 SolidWorksApril 17, 2024, 10:23 AM / 383.36 kB
S2172 StepApril 17, 2024, 10:23 AM / 39.63 kB
