Concealed Pivot Hinges
20mm door rtn - weld-stud
S2205 End Mount Concealed Pivot Hinge
spring loaded - screw or weld-on - steel, material: Steel
Order No.
S2205.AW0063
Hand
Left

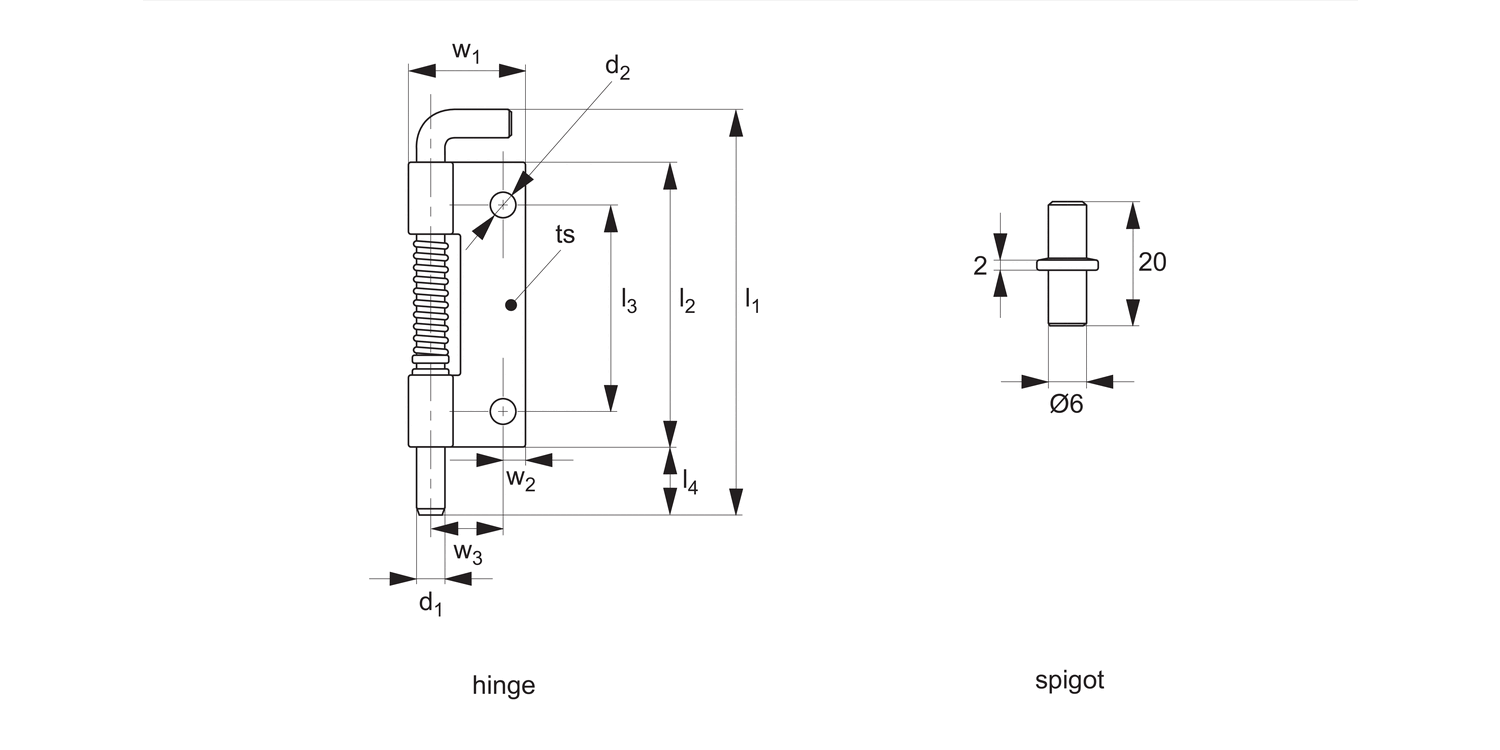

l1
89
w1
26.5
d1
6
d2
5.5
Fx
N
150
Fy
N
200
l2
62.5
l3
45
l4
15
w2
6
w3
15.2
ts
2
£ 0.93 per unit (click for quantity discounts)
Ready to despatch 106
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 0.93 | 0% |
| 20-49 | £ 0.84 | 10% |
| 50-99 | £ 0.79 | 15% |
| 100-499 | £ 0.70 | 25% |
| 500+ | £ 0.60 | 35% |
Technical & Application
Material
Body: steel, zinc plated.
Technical Notes
For sheet metal doors, cabinets and machinery covers. Spring body can be either welded, or screw mounted.
Pull back pin lever, hinge pin is retracted. Release pin lever and hinge pin springs back.
Max. opening angle 110°.
Tips
Spring loaded feature of hinge enables easy assembly and disassembly of panel/door, ideal for maintenance covers.

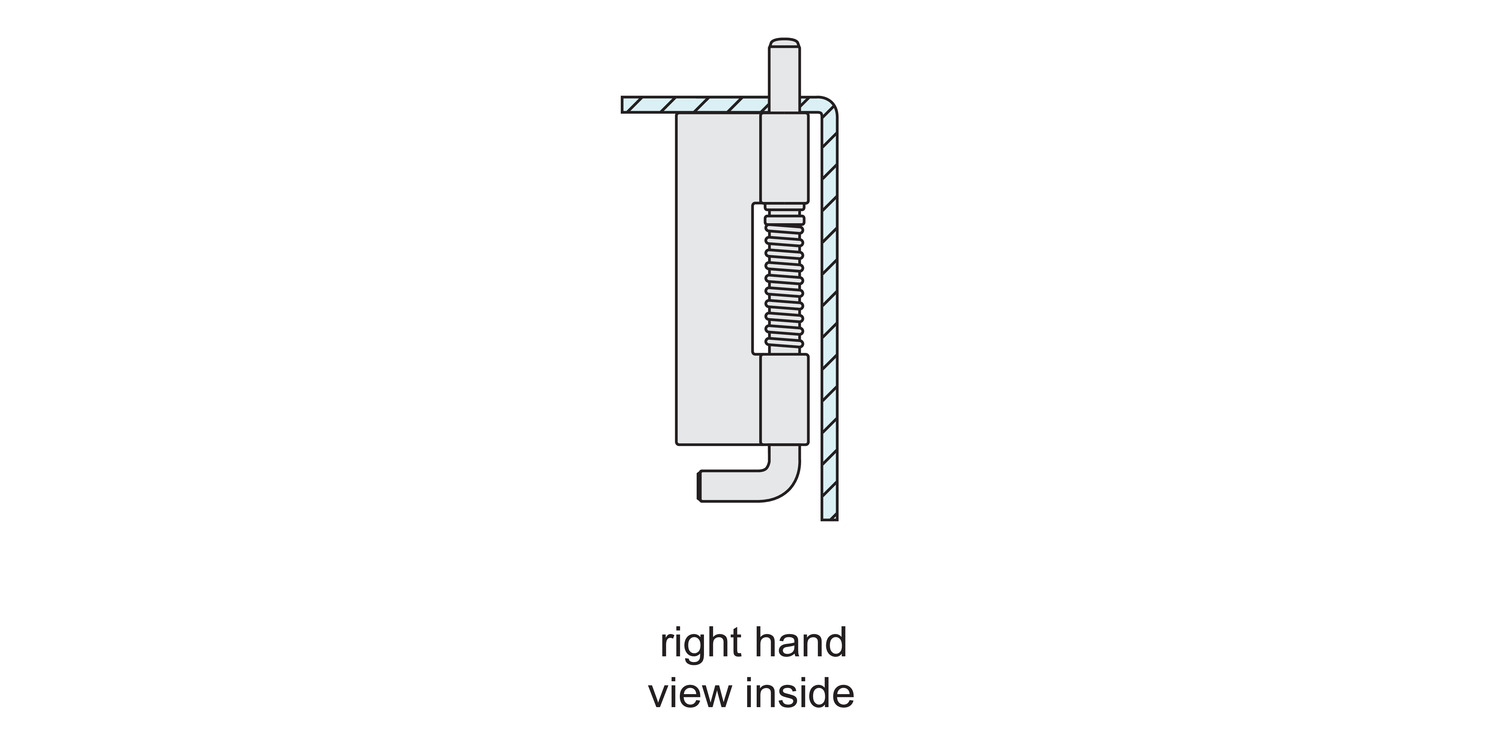

Typical assembly utilises spring loaded hinge at top of door and corresponding hinge spigot at foot of door.
Product Datasheets
Application images
