T-Slot Clamp, Set
low profile
10960 T-Slot Finger Clamp Set
low profile, material: Spring steel
Order No.
10960.W0264
Type
Clamp + Stop
Clamping stroke s1
1.2
For T-slot
14
Clamping height
min.
5
l1
52
l2
15
h1
10.5
h2
7.5
h3
5
w1
22
w2
20
Torque to
max.
Nm
9
A/F
4
Clamping force
max.
kN
4
Weight
g
162
£ 400.05 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 400.05 | 0% |
| 5-9 | £ 380.05 | 5% |
| 10-19 | £ 360.05 | 10% |
| 20-49 | £ 340.04 | 15% |
| 50+ | £ 300.04 | 25% |
Technical & Application
Material
Clamp: spring steel.
Block: steel.
Technical Notes

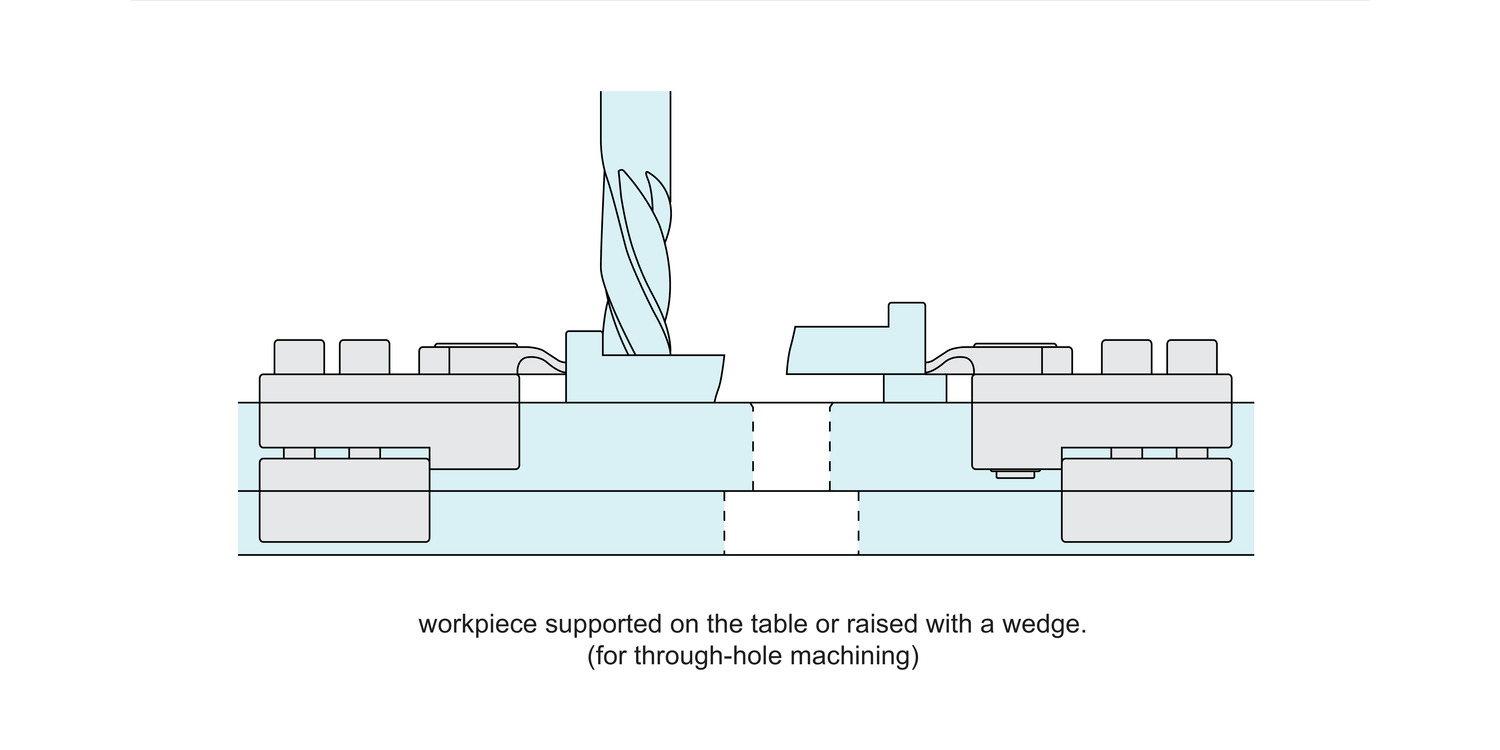

The clamping point is 5mm above the machine table. Risers can be used to allow for through machining and drilling.
Supplied as a set: one-piece clamp, one-piece stop.
Tips

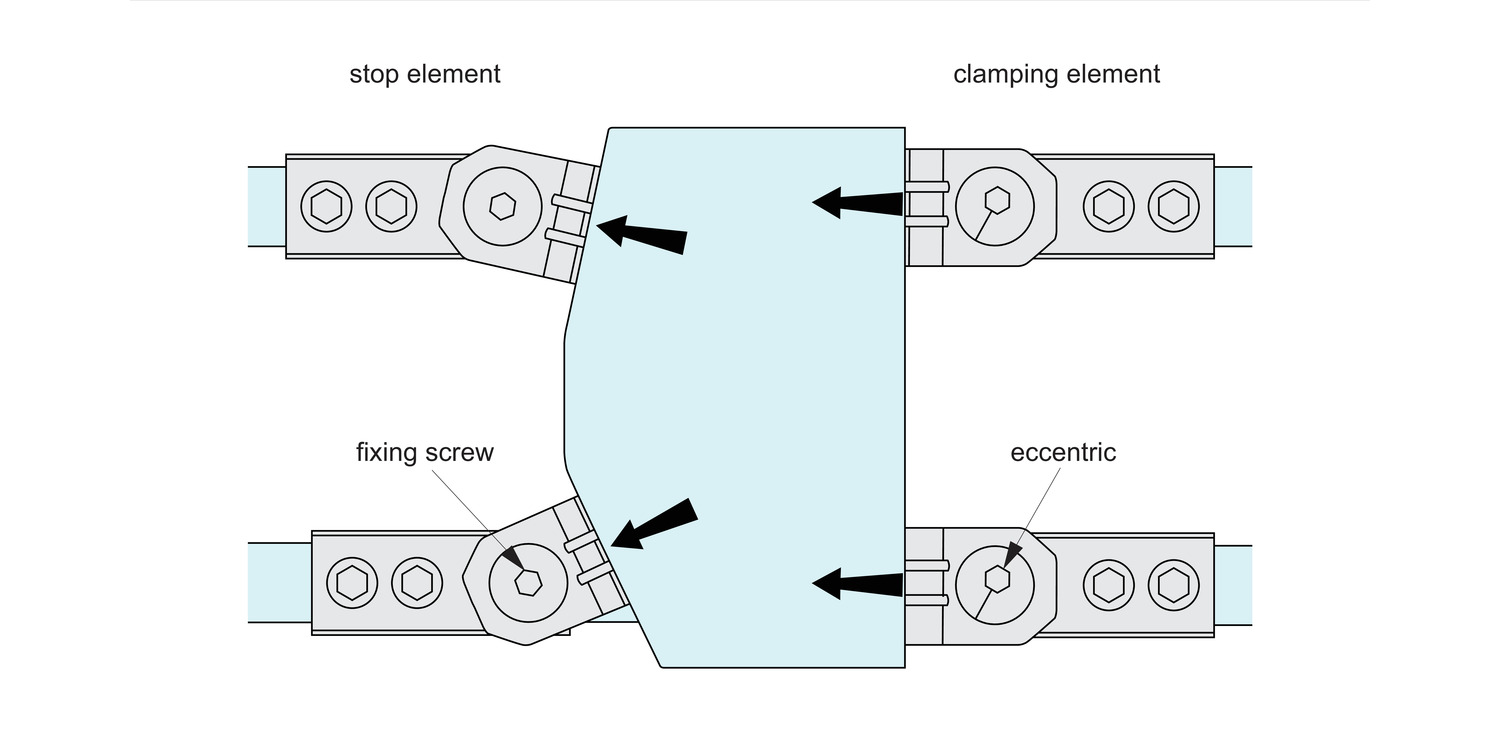

These low-profile clamps and stops have a holding force of 4000 N. The fingers push the workpiece down before clamping. The small height of the clamps eliminate any risk of collision between clamp and tooling- ideal for machining small and low profile components.
Product Datasheets
Application images
