T-Slot Clamp, Set
low profile
12180.2 Multi-Fixture Clamps and Stops
without locating step, material: Steel
Alternative products you may wish to consider

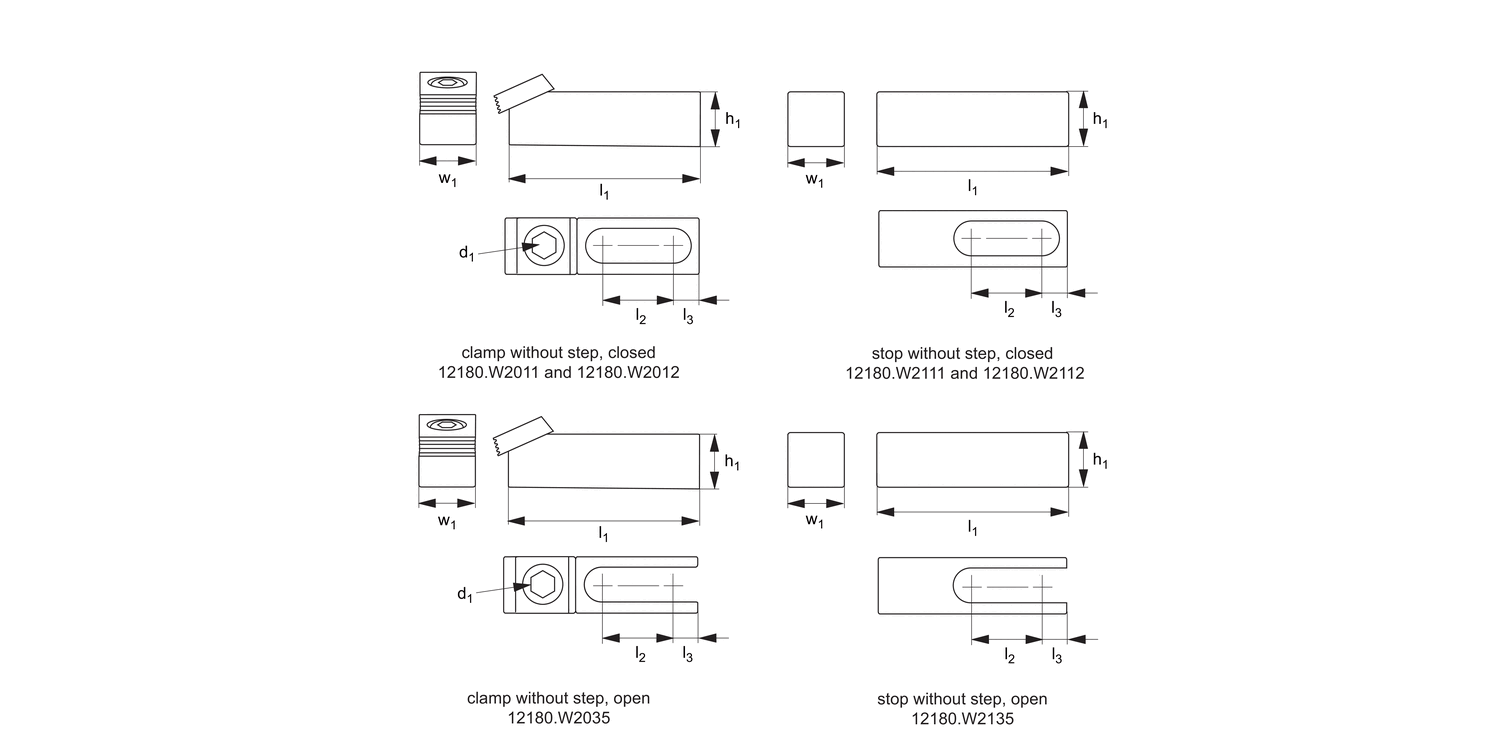

Type
Clamp - w/o Step
Slot type
Closed
Mounting screw
M 8
Cam screw d1
M 8
l1
54.9
l2
21.1
l3
13.5
h1
15.8
w1
19.1
Torque to
max.
Nm
28
Stroke
1.6
For use with
12180.W2111
Holding force
kN
8.9
£ 62.51 per unit (click for quantity discounts)
Type
Clamp - w/o Step
Slot type
Closed
Mounting screw
M12
Cam screw d1
M12
l1
58.6
l2
42.7
l3
12.7
h1
15.8
w1
28.5
Torque to
max.
Nm
88
Stroke
2.0
For use with
12180.W2112
Holding force
kN
17.8
£ 68.07 per unit (click for quantity discounts)
Type
Clamp - w/o Step
Slot type
Open
Mounting screw
M16
Cam screw d1
M16
l1
96.5
l2
46.2
l3
-
h1
41.2
w1
38.1
Torque to
max.
Nm
135
Stroke
2.5
For use with
12180.W2135
Holding force
kN
26.7
£ 161.03 per unit (click for quantity discounts)
Type
Stop - w/o Step
Slot type
Closed
Mounting screw
M 8
Cam screw d1
-
l1
55.9
l2
28.2
l3
13.5
h1
19.1
w1
19.1
Torque to
max.
Nm
-
Stroke
-
For use with
12180.W2011
Holding force
kN
-
£ 48.21 per unit (click for quantity discounts)
Type
Stop - w/o Step
Slot type
Closed
Mounting screw
M12
Cam screw d1
-
l1
83.5
l2
42.7
l3
12.7
h1
22.1
w1
28.5
Torque to
max.
Nm
-
Stroke
-
For use with
12180.W2012
Holding force
kN
-
£ 62.51 per unit (click for quantity discounts)
Type
Stop - w/o Step
Slot type
Open
Mounting screw
M16
Cam screw d1
-
l1
83.8
l2
46.2
l3
-
h1
50.8
w1
38.1
Torque to
max.
Nm
-
Stroke
-
For use with
12180.W2035
Holding force
kN
-
£ 125.15 per unit (click for quantity discounts)
Type
Slot type
Mounting screw
Cam screw d1
l1
l2
l3
h1
w1
Torque to
max.
Nm
Stroke
For use with
Holding force
kN
| Price & Availability | Article | Type | Slot type | Mounting screw | Cam screw d1 | l1 | l2 | l3 | h1 | w1 | Torque to max. Nm | Stroke | For use with | Holding force kN | ||||||||||||||||||
| 12180.W2011 | Clamp - w/o Step | Closed | M 8 | M 8 | 54.9 | 21.1 | 13.5 | 15.8 | 19.1 | 28 | 1.6 | 12180.W2111 | 8.9 | |||||||||||||||||||
£ 62.51 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Clamp - w/o Step Slot type Closed Mounting screw M 8 Cam screw d1 M 8 l1 54.9 l2 21.1 l3 13.5 h1 15.8 w1 19.1 Torque to
max.
Nm 28 Stroke 1.6 For use with 12180.W2111 Holding force
kN 8.9 | ||||||||||||||||||||||||||||||||
| 12180.W2012 | Clamp - w/o Step | Closed | M12 | M12 | 58.6 | 42.7 | 12.7 | 15.8 | 28.5 | 88 | 2.0 | 12180.W2112 | 17.8 | |||||||||||||||||||
£ 68.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Clamp - w/o Step Slot type Closed Mounting screw M12 Cam screw d1 M12 l1 58.6 l2 42.7 l3 12.7 h1 15.8 w1 28.5 Torque to
max.
Nm 88 Stroke 2.0 For use with 12180.W2112 Holding force
kN 17.8 | ||||||||||||||||||||||||||||||||
| 12180.W2035 | Clamp - w/o Step | Open | M16 | M16 | 96.5 | 46.2 | - | 41.2 | 38.1 | 135 | 2.5 | 12180.W2135 | 26.7 | |||||||||||||||||||
£ 161.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Clamp - w/o Step Slot type Open Mounting screw M16 Cam screw d1 M16 l1 96.5 l2 46.2 l3 - h1 41.2 w1 38.1 Torque to
max.
Nm 135 Stroke 2.5 For use with 12180.W2135 Holding force
kN 26.7 | ||||||||||||||||||||||||||||||||
| 12180.W2111 | Stop - w/o Step | Closed | M 8 | - | 55.9 | 28.2 | 13.5 | 19.1 | 19.1 | - | - | 12180.W2011 | - | |||||||||||||||||||
£ 48.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stop - w/o Step Slot type Closed Mounting screw M 8 Cam screw d1 - l1 55.9 l2 28.2 l3 13.5 h1 19.1 w1 19.1 Torque to
max.
Nm - Stroke - For use with 12180.W2011 Holding force
kN - | ||||||||||||||||||||||||||||||||
| 12180.W2112 | Stop - w/o Step | Closed | M12 | - | 83.5 | 42.7 | 12.7 | 22.1 | 28.5 | - | - | 12180.W2012 | - | |||||||||||||||||||
£ 62.51 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stop - w/o Step Slot type Closed Mounting screw M12 Cam screw d1 - l1 83.5 l2 42.7 l3 12.7 h1 22.1 w1 28.5 Torque to
max.
Nm - Stroke - For use with 12180.W2012 Holding force
kN - | ||||||||||||||||||||||||||||||||
| 12180.W2135 | Stop - w/o Step | Open | M16 | - | 83.8 | 46.2 | - | 50.8 | 38.1 | - | - | 12180.W2035 | - | |||||||||||||||||||
£ 125.15 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stop - w/o Step Slot type Open Mounting screw M16 Cam screw d1 - l1 83.8 l2 46.2 l3 - h1 50.8 w1 38.1 Torque to
max.
Nm - Stroke - For use with 12180.W2035 Holding force
kN - | ||||||||||||||||||||||||||||||||
Technical & Application
Material
Body: steel, hardened.
Clamp: brass.
Technical Notes

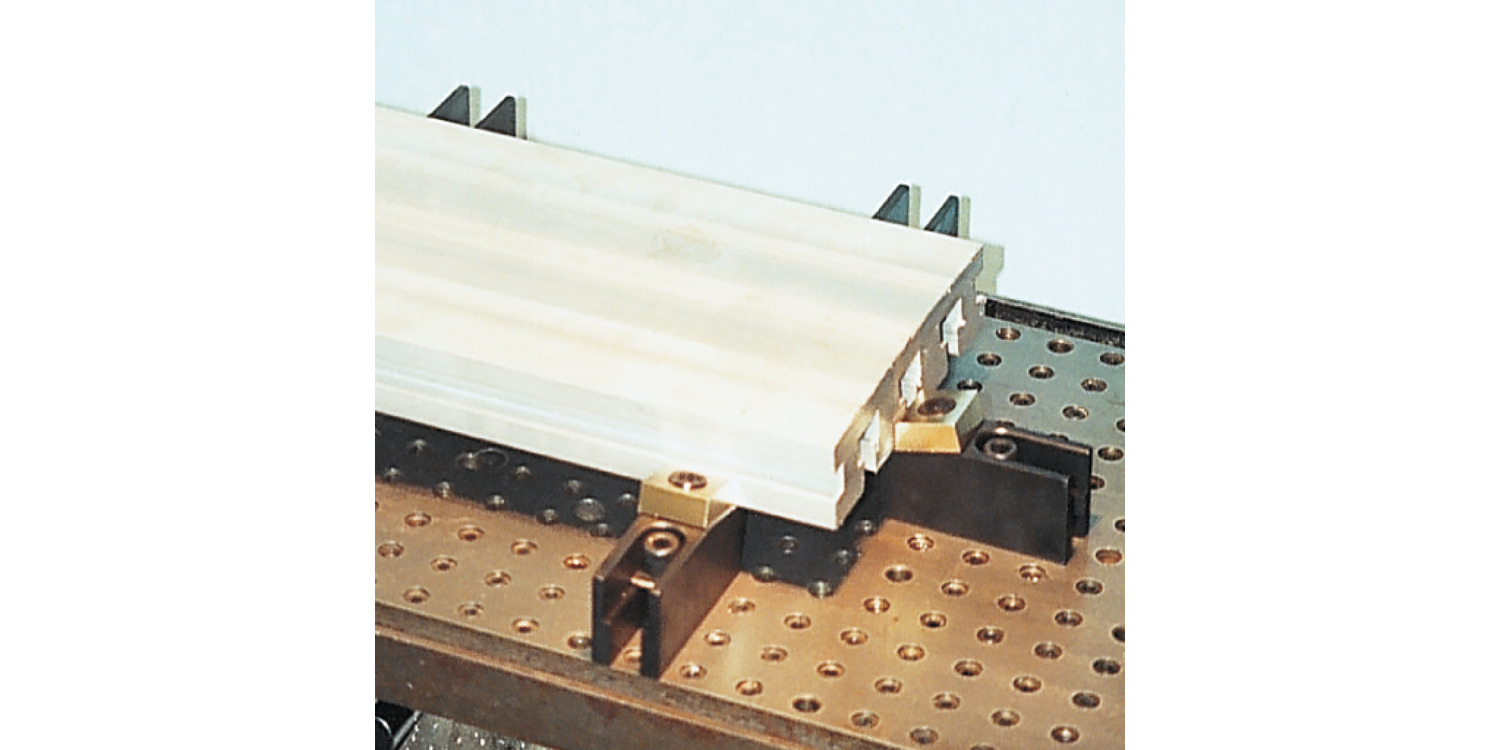

Enables flexible setups. For use in both threaded holes and in T-slots. Can be mounted vertically or horizontally.
Typically used as a clamp and stop pair - please order separately.
Product Datasheets
Application images
