T-Slot Clamp, Set
low profile
12191 Eccentric - Slot Toe Clamps
material: Hardened steel
Alternative products you may wish to consider
T-slot size
*
l1
50
h1
25.4
h2
22.2
h3
15.7
h4
9.6
w1
28.5
w2
25.4
Torque to
max.
Nm
88
Stroke s1
1.6
Holding force
kN
17.8
£ 55.12 per unit (click for quantity discounts)
T-slot size
14
l1
50
h1
25.4
h2
22.2
h3
15.7
h4
9.6
w1
28.5
w2
25.4
Torque to
max.
Nm
88
Stroke s1
1.6
Holding force
kN
17.8
£ 65.11 per unit (click for quantity discounts)
T-slot size
16
l1
50
h1
25.4
h2
22.2
h3
15.7
h4
9.6
w1
28.5
w2
25.4
Torque to
max.
Nm
88
Stroke s1
1.6
Holding force
kN
17.8
£ 65.11 per unit (click for quantity discounts)
T-slot size
18
l1
50
h1
25.4
h2
22.2
h3
15.7
h4
9.6
w1
28.5
w2
25.4
Torque to
max.
Nm
88
Stroke s1
1.6
Holding force
kN
17.8
£ 68.53 per unit (click for quantity discounts)
T-slot size
l1
h1
h2
h3
h4
w1
w2
Torque to
max.
Nm
Stroke s1
Holding force
kN

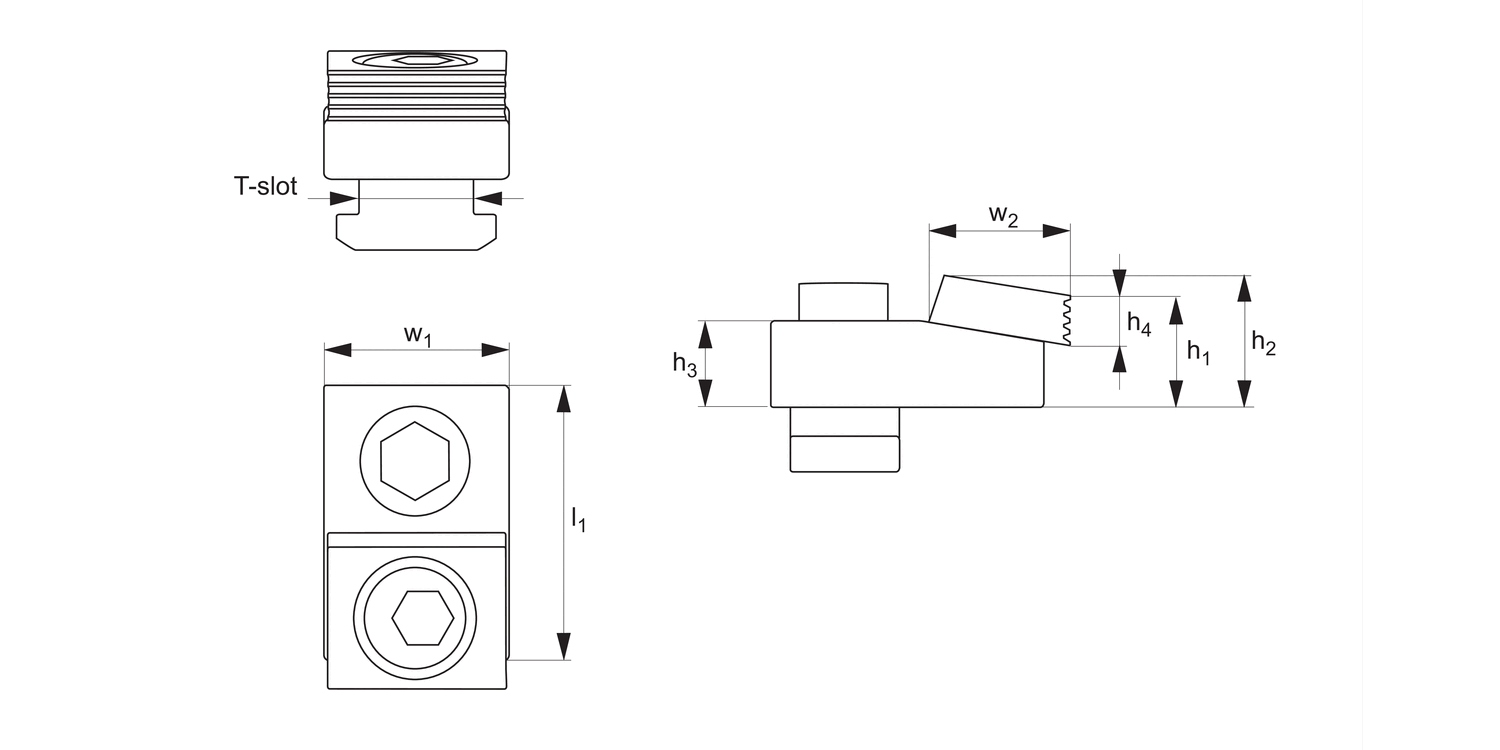

| Price & Availability | Article | T-slot size | l1 | h1 | h2 | h3 | h4 | w1 | w2 | Torque to max. Nm | Stroke s1 | Holding force kN | ||||||||||||||||||
| 12191.W0000 | * | 50 | 25.4 | 22.2 | 15.7 | 9.6 | 28.5 | 25.4 | 88 | 1.6 | 17.8 | |||||||||||||||||||
£ 55.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
T-slot size * l1 50 h1 25.4 h2 22.2 h3 15.7 h4 9.6 w1 28.5 w2 25.4 Torque to
max.
Nm 88 Stroke s1 1.6 Holding force
kN 17.8 | ||||||||||||||||||||||||||||||
| 12191.W0014 | 14 | 50 | 25.4 | 22.2 | 15.7 | 9.6 | 28.5 | 25.4 | 88 | 1.6 | 17.8 | |||||||||||||||||||
£ 65.11 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
T-slot size 14 l1 50 h1 25.4 h2 22.2 h3 15.7 h4 9.6 w1 28.5 w2 25.4 Torque to
max.
Nm 88 Stroke s1 1.6 Holding force
kN 17.8 | ||||||||||||||||||||||||||||||
| 12191.W0016 | 16 | 50 | 25.4 | 22.2 | 15.7 | 9.6 | 28.5 | 25.4 | 88 | 1.6 | 17.8 | |||||||||||||||||||
£ 65.11 per unit (click for quantity discounts) Ready to despatch 16 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
T-slot size 16 l1 50 h1 25.4 h2 22.2 h3 15.7 h4 9.6 w1 28.5 w2 25.4 Torque to
max.
Nm 88 Stroke s1 1.6 Holding force
kN 17.8 | ||||||||||||||||||||||||||||||
| 12191.W0018 | 18 | 50 | 25.4 | 22.2 | 15.7 | 9.6 | 28.5 | 25.4 | 88 | 1.6 | 17.8 | |||||||||||||||||||
£ 68.53 per unit (click for quantity discounts) Ready to despatch 13 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
T-slot size 18 l1 50 h1 25.4 h2 22.2 h3 15.7 h4 9.6 w1 28.5 w2 25.4 Torque to
max.
Nm 88 Stroke s1 1.6 Holding force
kN 17.8 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Steel hardened face.
Technical Notes
Designed to be used in the T-slots of machine tables.
The clamp has both a smooth face (for machined workpieces) and a serrated face (for rougher work).
Provides a positive downhold action whilst maintaining a low profile.
Tips
Torque screw for T-slot nut to 150 Nm.
*Not supplied with T-nut or mounting screw.
