T-Slot Clamp, Set
low profile
10980.2 Low Profile Cam Edge Clamps
lever actuation, material: Tempered steel
Alternative products you may wish to consider
Clamping stroke s1
d1
d2
d3
d4
l1
l2
l3
| Price & Availability | Article | Clamping stroke s1 | d1 | d2 | d3 | d4 | l1 | l2 | l3 | ||||||||||||||||||
| 10980.W0138 | 1 | 5.2 | 13 | 63 | M 4x0,7-4L | 33.5 | 30.5 | 15 | |||||||||||||||||||
£ 167.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Clamping stroke s1 1 d1 5.2 d2 13 d3 63 d4 M 4x0,7-4L l1 33.5 l2 30.5 l3 15 | |||||||||||||||||||||||||||
| 10980.W0160 | 2 | 8.2 | 19 | 100 | M 5x0,8-5L | 50.0 | 46.0 | 22 | |||||||||||||||||||
£ 195.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Clamping stroke s1 2 d1 8.2 d2 19 d3 100 d4 M 5x0,8-5L l1 50.0 l2 46.0 l3 22 | |||||||||||||||||||||||||||
Weight
g
h1
h2
h3
h4
h5
h6
h7
w1
w2
w3
w4
w5
Torque to
max.
Nm
Clamping force
max.
kN
| Price & Availability | Article | Weight g | h1 | h2 | h3 | h4 | h5 | h6 | h7 | w1 | w2 | w3 | w4 | w5 | Torque to max. Nm | Clamping force max. kN | ||||||||||||||||||
| 10980.W0138 | 130 | 20 | 10 | 6 | 3 | 5 | 30 | 12 | 45 | 38 | 8 | 36 | 8 | 17 | 4 | |||||||||||||||||||
£ 167.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 130 h1 20 h2 10 h3 6 h4 3 h5 5 h6 30 h7 12 w1 45 w2 38 w3 8 w4 36 w5 8 Torque to
max.
Nm 17 Clamping force
max.
kN 4 | ||||||||||||||||||||||||||||||||||
| 10980.W0160 | 440 | 30 | 15 | 9 | 5 | 7 | 46 | 18 | 70 | 60 | 12 | 55 | 12 | 28 | 6 | |||||||||||||||||||
£ 195.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 440 h1 30 h2 15 h3 9 h4 5 h5 7 h6 46 h7 18 w1 70 w2 60 w3 12 w4 55 w5 12 Torque to
max.
Nm 28 Clamping force
max.
kN 6 | ||||||||||||||||||||||||||||||||||
Technical & Application
Material
Body: steel (C45), black oxide finish.
Jaw/cam: steel (42CrMo), tempered, black oxide finish.
Handle: steel (C45), tempered, black oxide finish.
Technical Notes
Designed to prevent part lift.

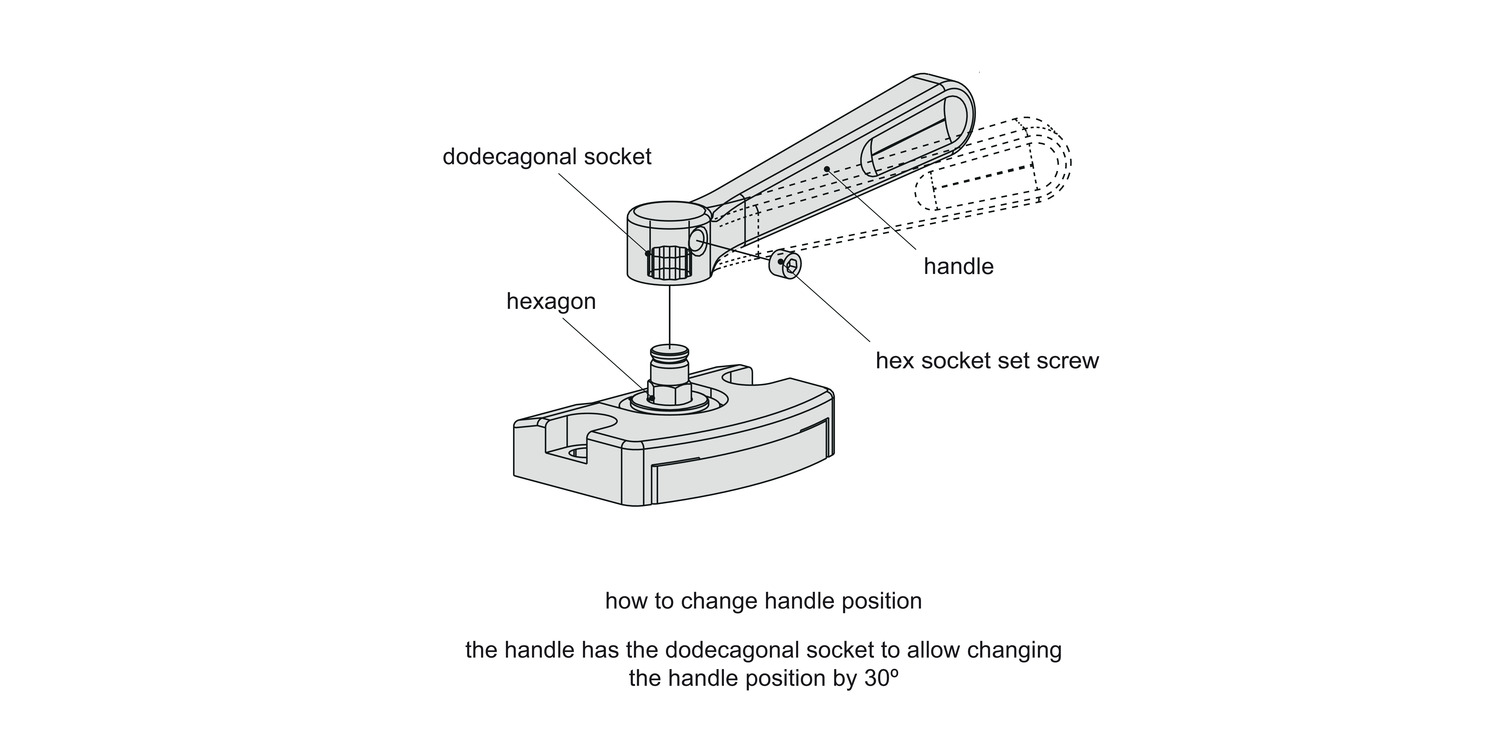

Turning the wrench allows the cam to move the jaw forward for clamping. When the wrench is turned back for unclamping, the loaded spring allows the jaw to return to the original position.
Tips
Ensure that mounting surfaces are finished to 6.3a or better, without any scratches or dents.
Product Datasheets
Application images
