T-Slot Clamp, Set
low profile
12193 Eccentric Compact Toe Clamps
material: Hardened steel
Alternative products you may wish to consider
Clamp screw
M 8
Mounting screw
M 8
l1
43.2
h1
12.7
h2
21.5
h3
6.4
h4
15.75
w1
25.4
w2
19.0
w3
19.0
w4
2.3
Torque to
max.
Nm
28
Stroke
1.6
Holding force
kN
8.9
£ 44.69 per unit (click for quantity discounts)
Clamp screw
M10
Mounting screw
M10
l1
54.0
h1
11.4
h2
24.4
h3
9.7
h4
15.75
w1
33.5
w2
25.4
w3
25.4
w4
2.8
Torque to
max.
Nm
88
Stroke
2.0
Holding force
kN
17.8
£ 64.44 per unit (click for quantity discounts)
Clamp screw
M12
Mounting screw
M12
l1
75.0
h1
25.2
h2
43.2
h3
12.7
h4
31.75
w1
50.8
w2
38.1
w3
38.1
w4
3.3
Torque to
max.
Nm
135
Stroke
2.5
Holding force
kN
26.7
£ 133.44 per unit (click for quantity discounts)
Clamp screw
Mounting screw
l1
h1
h2
h3
h4
w1
w2
w3
w4
Torque to
max.
Nm
Stroke
Holding force
kN
| Price & Availability | Article | Clamp screw | Mounting screw | l1 | h1 | h2 | h3 | h4 | w1 | w2 | w3 | w4 | Torque to max. Nm | Stroke | Holding force kN | ||||||||||||||||||
| 12193.W0110 | M 8 | M 8 | 43.2 | 12.7 | 21.5 | 6.4 | 15.75 | 25.4 | 19.0 | 19.0 | 2.3 | 28 | 1.6 | 8.9 | |||||||||||||||||||
£ 44.69 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.

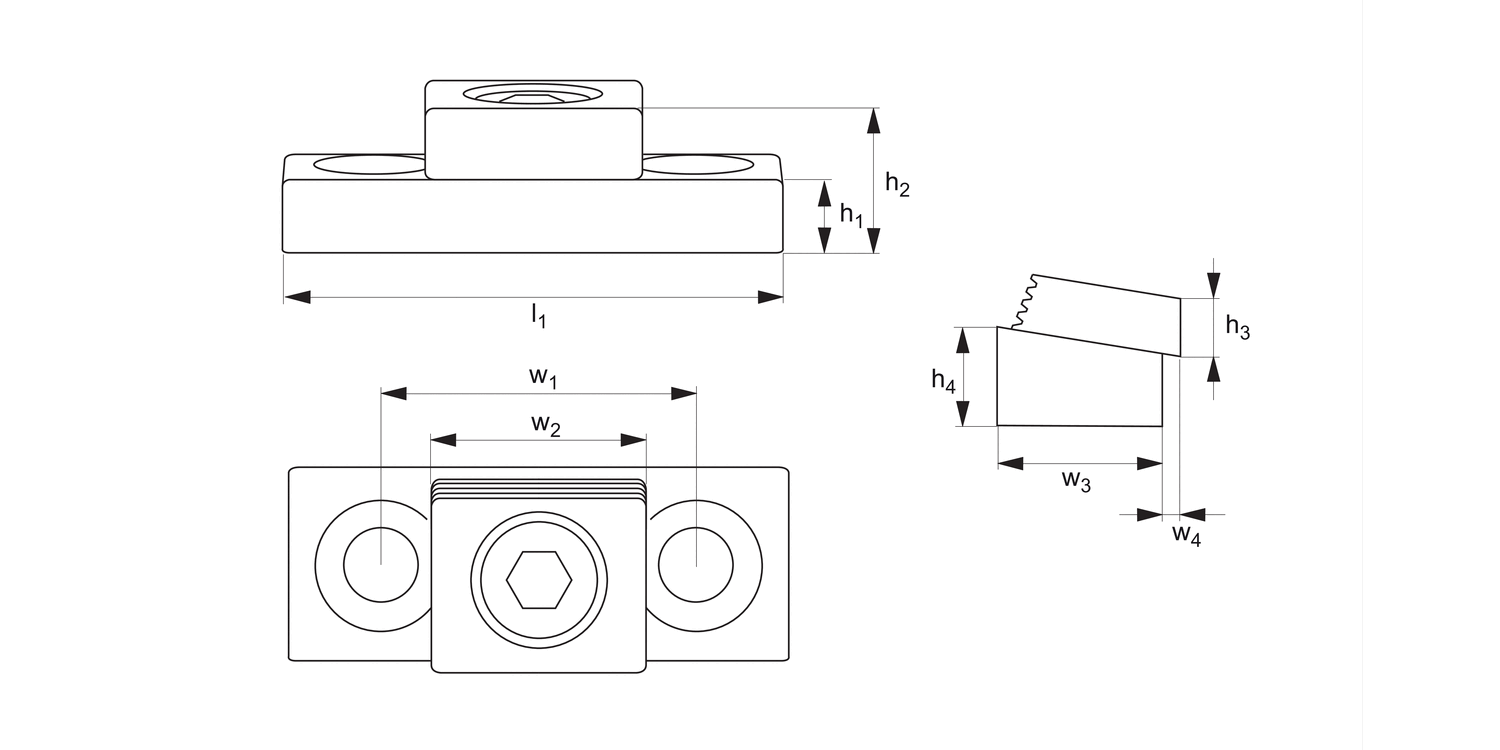

Clamp screw M 8 Mounting screw M 8 l1 43.2 h1 12.7 h2 21.5 h3 6.4 h4 15.75 w1 25.4 w2 19.0 w3 19.0 w4 2.3 Torque to
max.
Nm 28 Stroke 1.6 Holding force
kN 8.9 | |||||||||||||||||||||||||||||||||
| 12193.W0112 | M10 | M10 | 54.0 | 11.4 | 24.4 | 9.7 | 15.75 | 33.5 | 25.4 | 25.4 | 2.8 | 88 | 2.0 | 17.8 | |||||||||||||||||||
£ 64.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Clamp screw M10 Mounting screw M10 l1 54.0 h1 11.4 h2 24.4 h3 9.7 h4 15.75 w1 33.5 w2 25.4 w3 25.4 w4 2.8 Torque to
max.
Nm 88 Stroke 2.0 Holding force
kN 17.8 | |||||||||||||||||||||||||||||||||
| 12193.W0116 | M12 | M12 | 75.0 | 25.2 | 43.2 | 12.7 | 31.75 | 50.8 | 38.1 | 38.1 | 3.3 | 135 | 2.5 | 26.7 | |||||||||||||||||||
£ 133.44 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Clamp screw M12 Mounting screw M12 l1 75.0 h1 25.2 h2 43.2 h3 12.7 h4 31.75 w1 50.8 w2 38.1 w3 38.1 w4 3.3 Torque to
max.
Nm 135 Stroke 2.5 Holding force
kN 26.7 | |||||||||||||||||||||||||||||||||

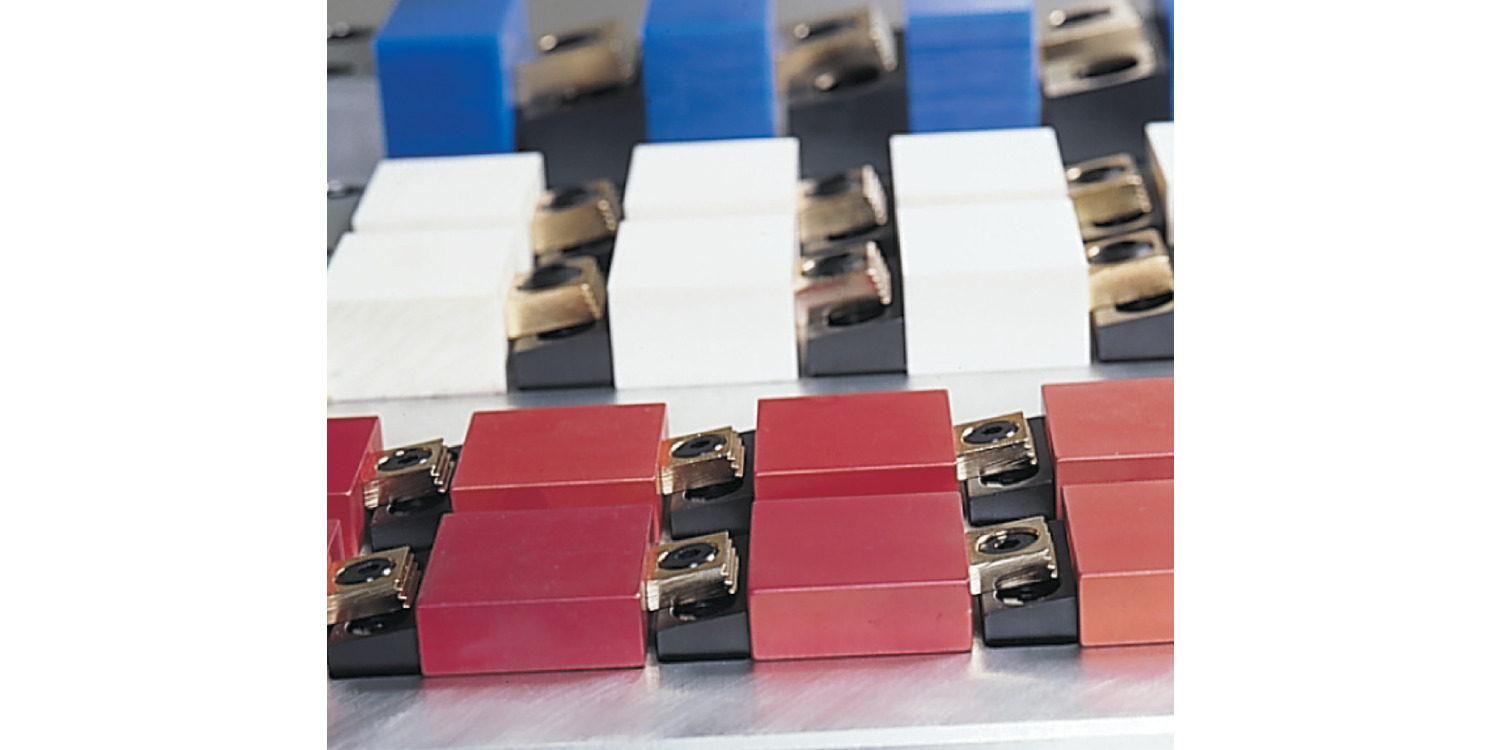

Technical & Application
Material
Clamping face: steel, hardened.
Body: mild steel, blackened.
Technical Notes
The clamp has both a smooth face (for machined workpieces) and a serrated face (for rougher work).
Provides a positive downhold action whilst maintaining a low profile.
Tips
The height of the clamp can be varied by milling the slot deeper into the fixture.
Important Notes
w3 - the distance between the front of the clamp base and the workpiece. Drill and tap the centreline of "w1" for mounting holes.
For replacement cam screws see part 12112.
