T-Slot Clamp, Set
low profile
10982.1 Side Clamps
material: Tempered steel
Alternative products you may wish to consider
Clamping stroke s1
d1
d2
d3
l1
l2
l3
l4
l5
l6
h1
h2
h3
| Price & Availability | Article | Clamping stroke s1 | d1 | d2 | d3 | l1 | l2 | l3 | l4 | l5 | l6 | h1 | h2 | h3 | ||||||||||||||||||
| 10982.W0045 | 3 | 6.6 | M 4x0,7 Depth 6 | M 4x0,7-6L | 52 | 48 | 20 | 14 | 3 | 10 | 32 | 27 | 18 | |||||||||||||||||||
£ 244.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Clamping stroke s1 3 d1 6.6 d2 M 4x0,7 Depth 6 d3 M 4x0,7-6L l1 52 l2 48 l3 20 l4 14 l5 3 l6 10 h1 32 h2 27 h3 18 | ||||||||||||||||||||||||||||||||
| 10982.W0060 | 4 | 8.6 | M 5x0,8 Depth 8 | M 5x0,8-8L | 69 | 63 | 26 | 19 | 4 | 13 | 40 | 33 | 22 | |||||||||||||||||||
£ 322.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Clamping stroke s1 4 d1 8.6 d2 M 5x0,8 Depth 8 d3 M 5x0,8-8L l1 69 l2 63 l3 26 l4 19 l5 4 l6 13 h1 40 h2 33 h3 22 | ||||||||||||||||||||||||||||||||
Weight
g
h4
h5
h6
w1
w2
w3
w4
w5
s2
Torque to
max.
Nm
A/F1
A/F2
Clamping force
max.
kN
| Price & Availability | Article | Weight g | h4 | h5 | h6 | w1 | w2 | w3 | w4 | w5 | s2 | Torque to max. Nm | A/F1 | A/F2 | Clamping force max. kN | ||||||||||||||||||
| 10982.W0045 | 560 | 18 | 18 | 8 | 75 | 45 | 15 | 60 | 30 | 3 | 25 | 8 | 19 | 9 | |||||||||||||||||||
£ 244.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 560 h4 18 h5 18 h6 8 w1 75 w2 45 w3 15 w4 60 w5 30 s2 3 Torque to
max.
Nm 25 A/F1 8 A/F2 19 Clamping force
max.
kN 9 | |||||||||||||||||||||||||||||||||
| 10982.W0060 | 1240 | 22 | 22 | 10 | 100 | 60 | 20 | 80 | 40 | 4 | 50 | 10 | 24 | 14 | |||||||||||||||||||
£ 322.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 1240 h4 22 h5 22 h6 10 w1 100 w2 60 w3 20 w4 80 w5 40 s2 4 Torque to
max.
Nm 50 A/F1 10 A/F2 24 Clamping force
max.
kN 14 | |||||||||||||||||||||||||||||||||
Technical & Application
Material
Body: steel (C45), black oxide finish.
Jaw: steel (42CrMo), tempered. Black oxide finish. Precision ground.
Shaft: steel (42CrMo), black oxide finish.
Technical Notes
A screw type clamping mechanism allows a long clamping stroke and firm clamping. The precision-ground jaw is perfect for clamping the workpiece on its finished surface.
The jaw provides downward force to prevent part lift.

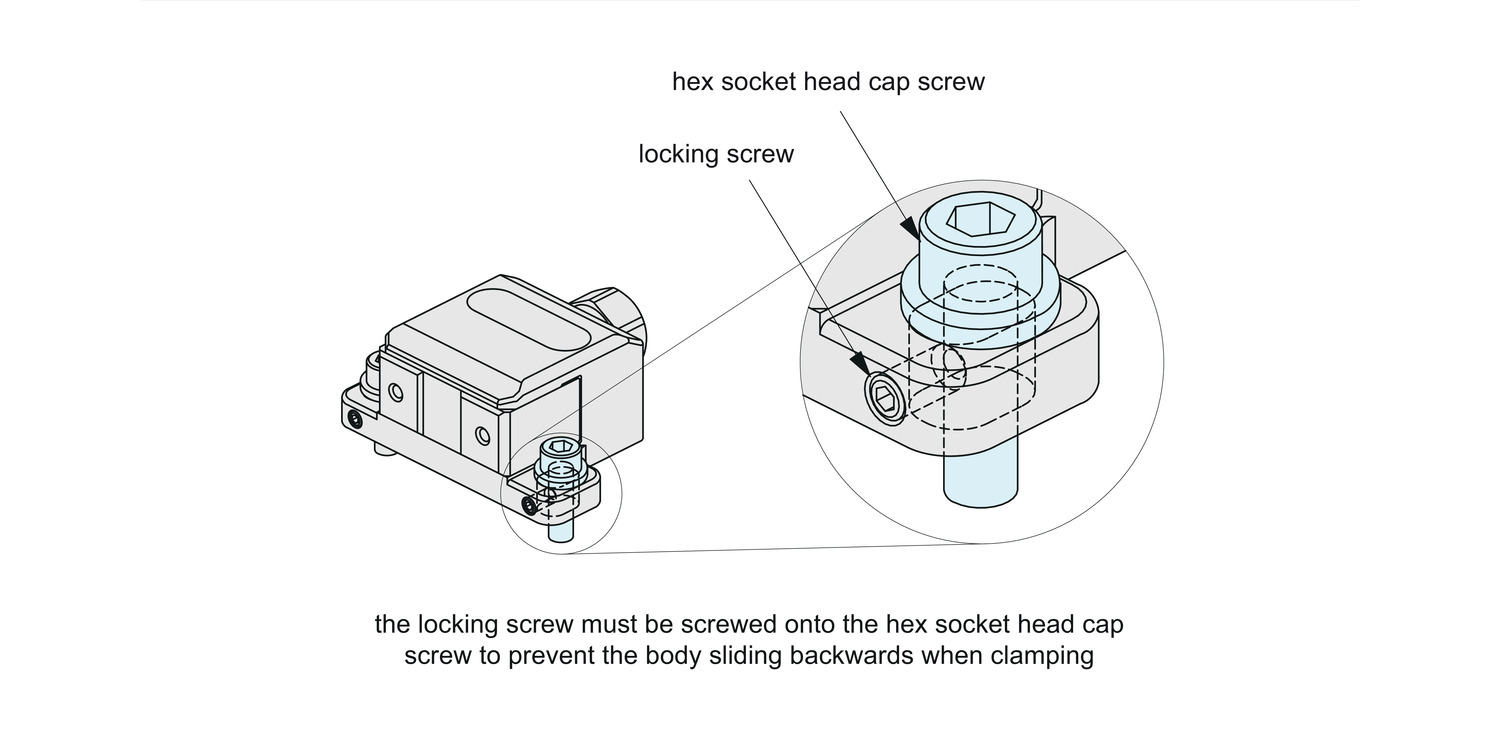

Tips

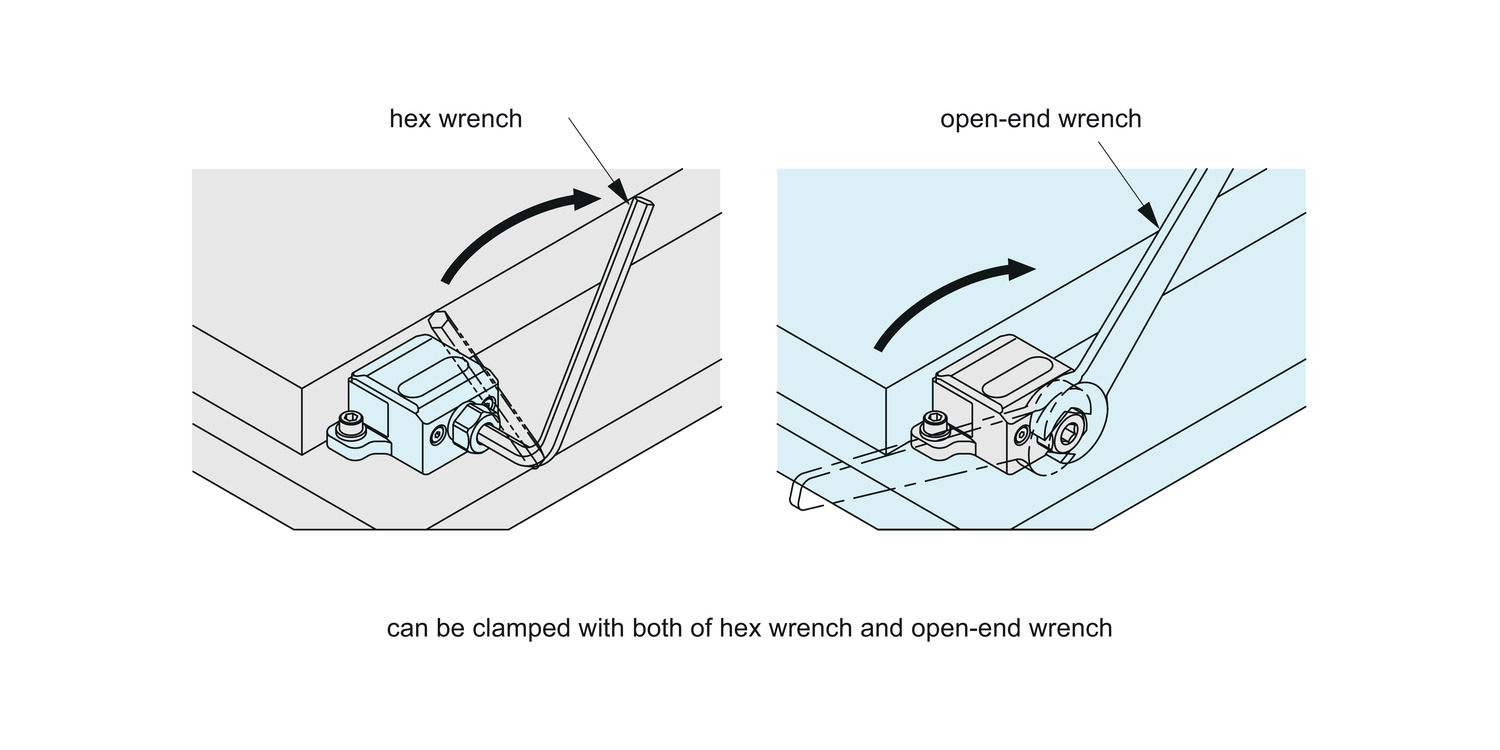

Can be clamped with both hex wrench and spanner.
