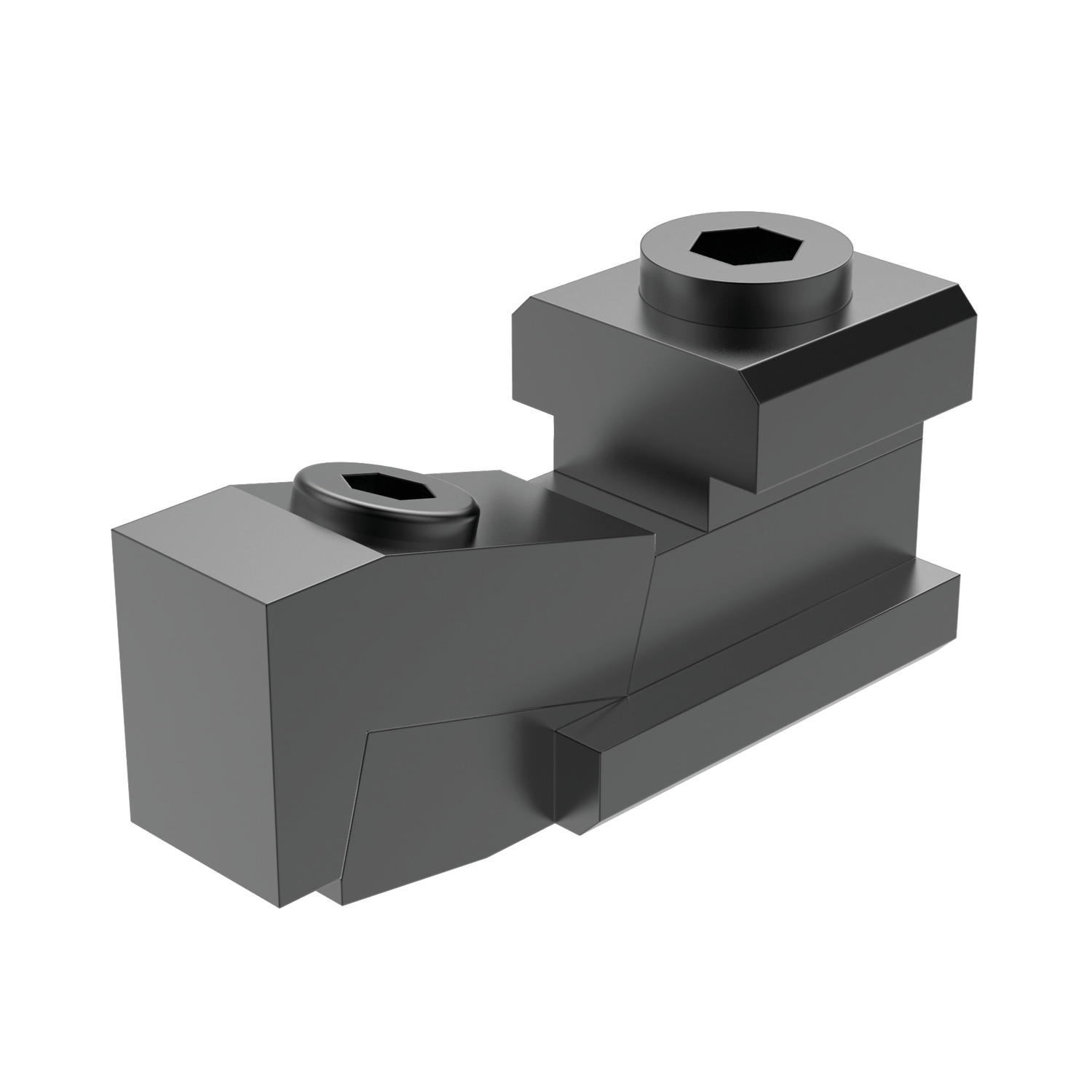

T-Slot Clamp, Set
low profile
12100 T-Slot Clamps
material: Heat treated steel
Alternative products you may wish to consider
Slot size
12
F1
kN
5.0
F2
kN
0.6

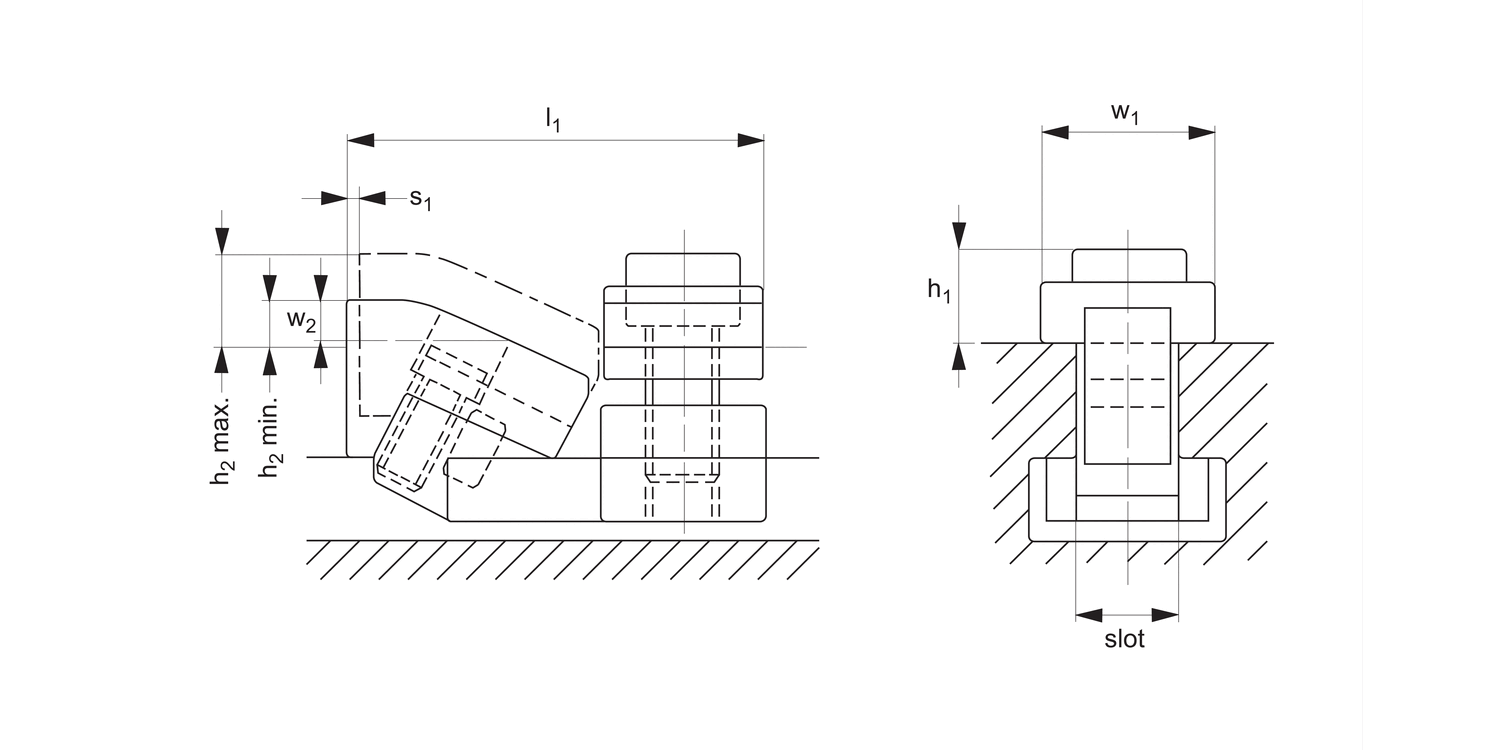

l1
max.
52
h1
11
h2
min.
2.5
h2
max.
13.5
w1
18
w2
5
Stroke s1
1.8
Weight
g
300
£ 174.71 per unit (click for quantity discounts)
Slot size
14
F1
kN
5.5
F2
kN
0.7
l1
max.
55
h1
11
h2
min.
1.5
h2
max.
13.5
w1
22
w2
5
Stroke s1
1.8
Weight
g
380
£ 192.99 per unit (click for quantity discounts)
Slot size
16
F1
kN
8.0
F2
kN
0.9
l1
max.
68
h1
15
h2
min.
2.5
h2
max.
17.0
w1
25
w2
6
Stroke s1
2.5
Weight
g
700
£ 215.65 per unit (click for quantity discounts)
Slot size
18
F1
kN
9.0
F2
kN
1.0
l1
max.
71
h1
15
h2
min.
1.5
h2
max.
16.0
w1
28
w2
6
Stroke s1
2.5
Weight
g
830
£ 228.91 per unit (click for quantity discounts)
Slot size
22
F1
kN
16.0
F2
kN
1.9
l1
max.
89
h1
20
h2
min.
4.5
h2
max.
21.5
w1
35
w2
9
Stroke s1
3.0
Weight
g
1740
£ 342.21 per unit (click for quantity discounts)
Slot size
F1
kN
F2
kN
l1
max.
h1
h2
min.
h2
max.
w1
w2
Stroke s1
Weight
g
| Price & Availability | Article | Slot size | F1 kN | F2 kN | l1 max. | h1 | h2 min. | h2 max. | w1 | w2 | Stroke s1 | Weight g | ||||||||||||||||||
| 12100.W0012 | 12 | 5.0 | 0.6 | 52 | 11 | 2.5 | 13.5 | 18 | 5 | 1.8 | 300 | |||||||||||||||||||
£ 174.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slot size 12 F1
kN 5.0 F2
kN 0.6 l1
max. 52 h1 11 h2
min. 2.5 h2
max. 13.5 w1 18 w2 5 Stroke s1 1.8 Weight
g 300 | ||||||||||||||||||||||||||||||
| 12100.W0014 | 14 | 5.5 | 0.7 | 55 | 11 | 1.5 | 13.5 | 22 | 5 | 1.8 | 380 | |||||||||||||||||||
£ 192.99 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slot size 14 F1
kN 5.5 F2
kN 0.7 l1
max. 55 h1 11 h2
min. 1.5 h2
max. 13.5 w1 22 w2 5 Stroke s1 1.8 Weight
g 380 | ||||||||||||||||||||||||||||||
| 12100.W0016 | 16 | 8.0 | 0.9 | 68 | 15 | 2.5 | 17.0 | 25 | 6 | 2.5 | 700 | |||||||||||||||||||
£ 215.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slot size 16 F1
kN 8.0 F2
kN 0.9 l1
max. 68 h1 15 h2
min. 2.5 h2
max. 17.0 w1 25 w2 6 Stroke s1 2.5 Weight
g 700 | ||||||||||||||||||||||||||||||
| 12100.W0018 | 18 | 9.0 | 1.0 | 71 | 15 | 1.5 | 16.0 | 28 | 6 | 2.5 | 830 | |||||||||||||||||||
£ 228.91 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slot size 18 F1
kN 9.0 F2
kN 1.0 l1
max. 71 h1 15 h2
min. 1.5 h2
max. 16.0 w1 28 w2 6 Stroke s1 2.5 Weight
g 830 | ||||||||||||||||||||||||||||||
| 12100.W0022 | 22 | 16.0 | 1.9 | 89 | 20 | 4.5 | 21.5 | 35 | 9 | 3.0 | 1740 | |||||||||||||||||||
£ 342.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slot size 22 F1
kN 16.0 F2
kN 1.9 l1
max. 89 h1 20 h2
min. 4.5 h2
max. 21.5 w1 35 w2 9 Stroke s1 3.0 Weight
g 1740 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Steel, heat-treated, blackened.
Technical Notes
Ideal for clamping low profile plates.
The clamps produce a downwards and forwards clamping force.
Tips
The clamp height can be further reduced by up to dimension "w2", via grinding.
Sold in pairs.
