T-Slot Clamp, Set
low profile
12100 T-Slot Clamps
material: Heat treated steel
Order No.
12100.W0022
Slot size
22
F1
kN
16.0
F2
kN
1.9
l1
max.
89
h1
20
h2
min.
4.5
h2
max.
21.5
w1
35
w2
9
Stroke s1
3.0
Weight
g
1740
£ 342.21 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 342.21 | 0% |
| 3-4 | £ 307.99 | 10% |
| 5-9 | £ 290.88 | 15% |
| 10-19 | £ 273.77 | 20% |
| 20+ | £ 256.66 | 25% |
Technical & Application
Material
Steel, heat-treated, blackened.
Technical Notes
Ideal for clamping low profile plates.

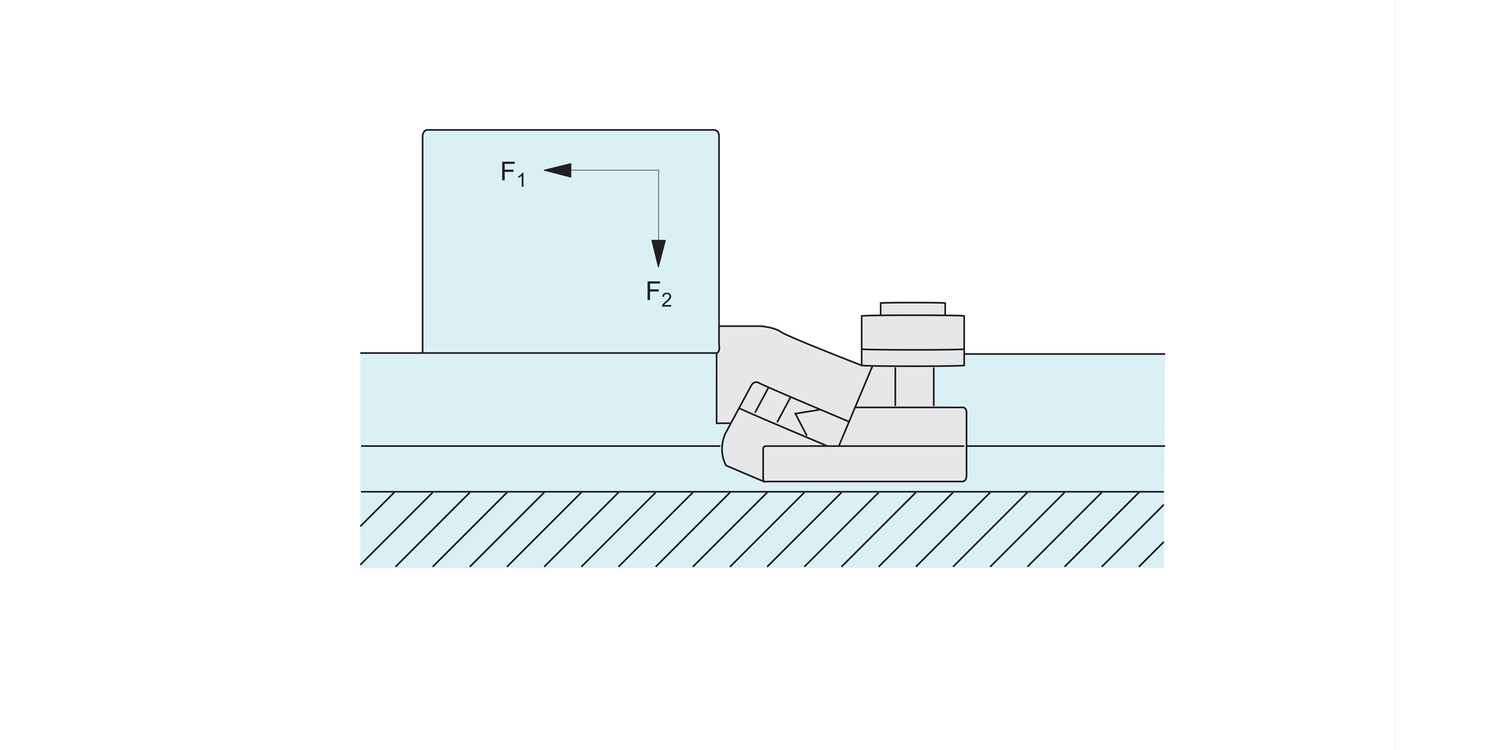

The clamps produce a downwards and forwards clamping force.
Tips
The clamp height can be further reduced by up to dimension "w2", via grinding.
Sold in pairs.
Product Datasheets
CAD files
Application images
