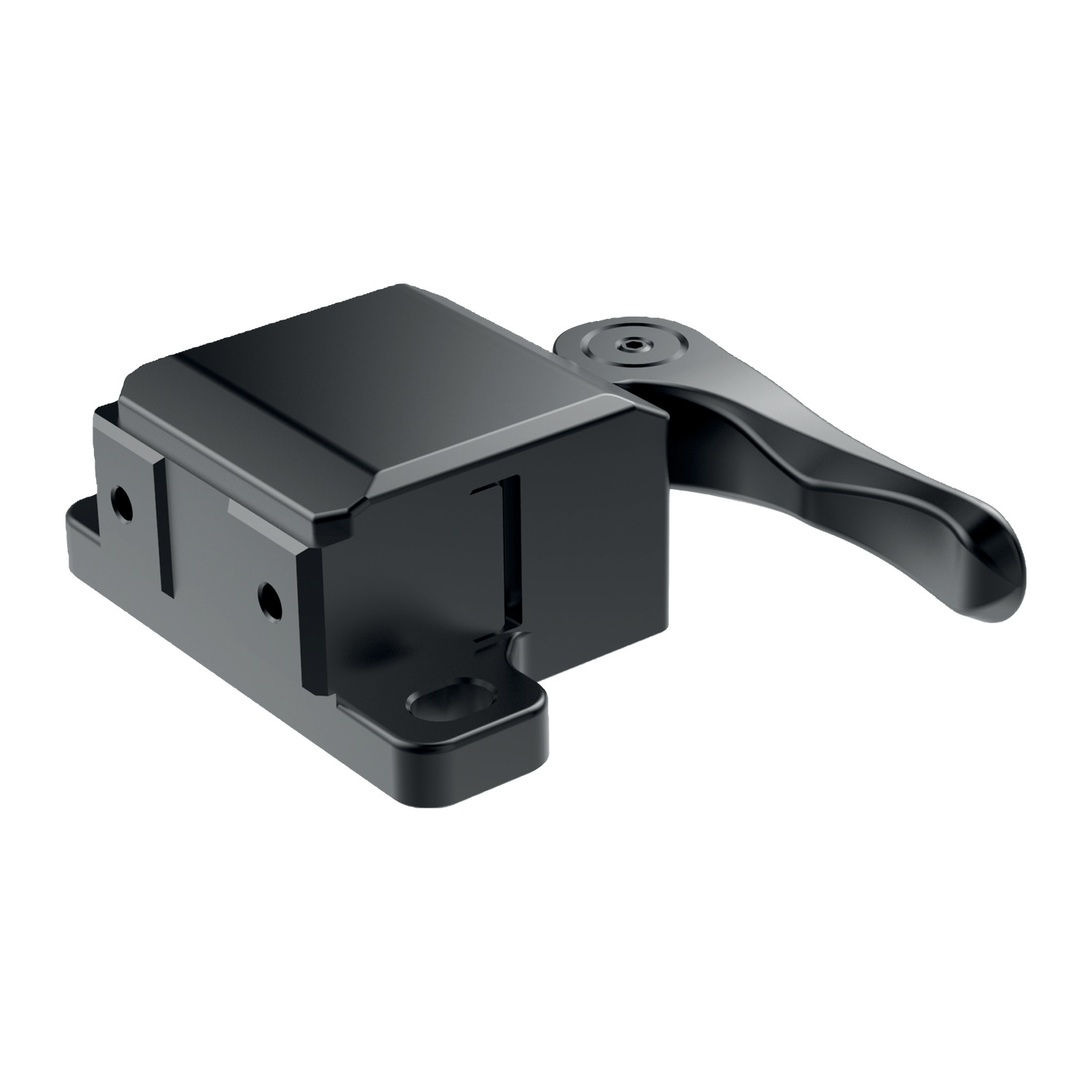

10982.2 Cam Edge Clamps

Name: 10982.W0160
Brand: WC
SKU: 10982.W0160
Price: 350.02 EUR
Availability: OutOfStock

material: Tempered steel

Article properties

Order No.

10982.W0160

Type

Light Duty

Clamping stroke s₁

0.4

d₁

d₂

d₃

l₁

l₂

l₃

l₄

l₅

l₆

h₁

h₂

Weight g

1320

h₃

h₄

h₅

h₆

h₇

w₁

w₂

w₃

w₄

w₅

r₁

Advance stroke s₂

0.8

Clamping force max. kN

1.2

Operating load max. N

See full product selection

£ 350.02 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 350.02	0%
10-19	£ 315.02	10%
20-49	£ 297.52	15%
50-99	£ 280.02	20%
100+	£ 245.01	30%

Download product datasheet

Technical & Application

Material

Body: steel (C45), black oxide finish.
Jaw/handle shaft: steel (C45), tempered. Black oxide finish, precision-ground.
Handle: steel (42CrMo), tempered. Electroless nickel plated (light-duty type), black oxide finish (standard type).

Technical Notes

The cam handle allows fast clamping in a single operation. Spring-loaded light duty version distributes constant clamping force. Standard version allows the adjustment of clamping force depending on operating loads. Precision-ground jaw is perfect for clamping the workpiece on its finished surface. The jaw provides downward force to prevent part lift.
