T-Slot Clamp, Set
low profile
12150 Eccentric T-Slot Clamps
material: Heat treated steel
Order No.
12150.W0010
For T-slot
10
Cam screw
M 6x1,00
l1
23.2
h1
14.2
h2
4.8
h3
4.3
w1
14.2
w2
10
Torque to
max.
Nm
8.5
Stroke s1
1.01
A/F1
5
A/F2
15.9
Holding force
kN
3.5
£ 50.81 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 50.81 | 0% |
| 5-9 | £ 48.27 | 5% |
| 10-19 | £ 45.73 | 10% |
| 20-49 | £ 43.19 | 15% |
| 50+ | £ 38.11 | 25% |
Technical & Application
Material
Clamp: brass.
Body: steel heat treated.
Technical Notes

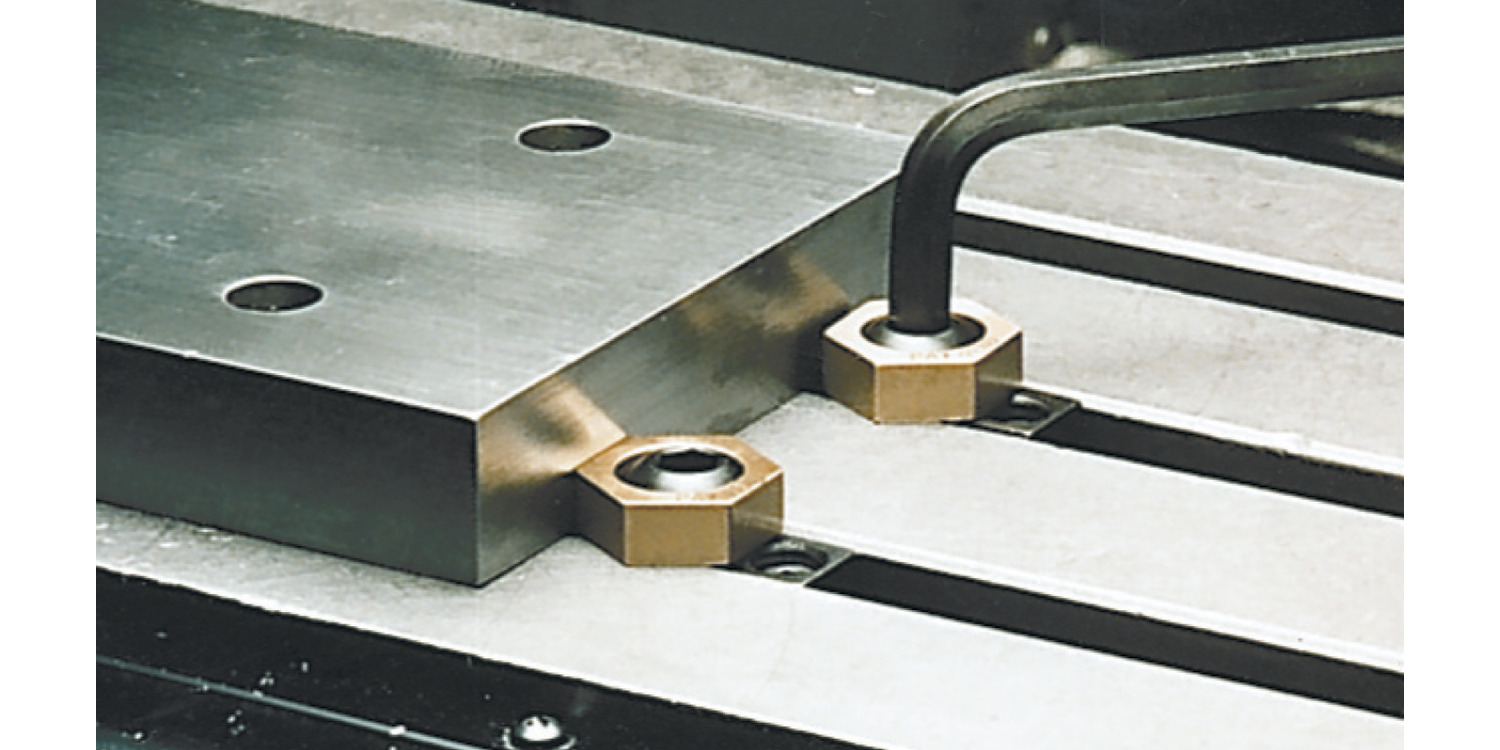

For use in T-slots of machine tables.
Tips
For replacement clamping screws see 12112.
Hex. key not included.
Sold in packs of 2.
