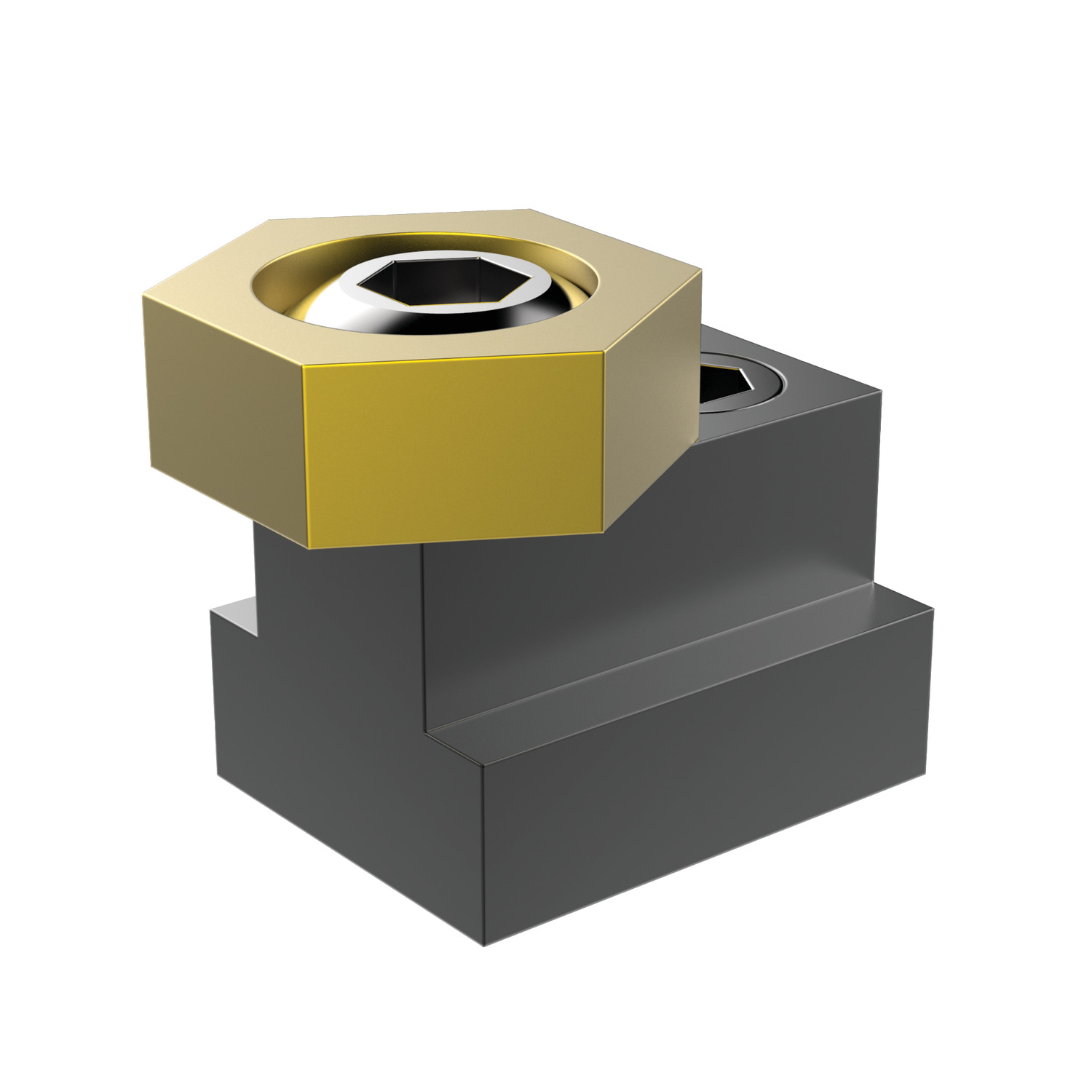

T-Slot Clamp, Set
low profile
12150 Eccentric T-Slot Clamps
material: Heat treated steel
Order No.
12150.W0012
For T-slot
12
Cam screw
M 8x1,25

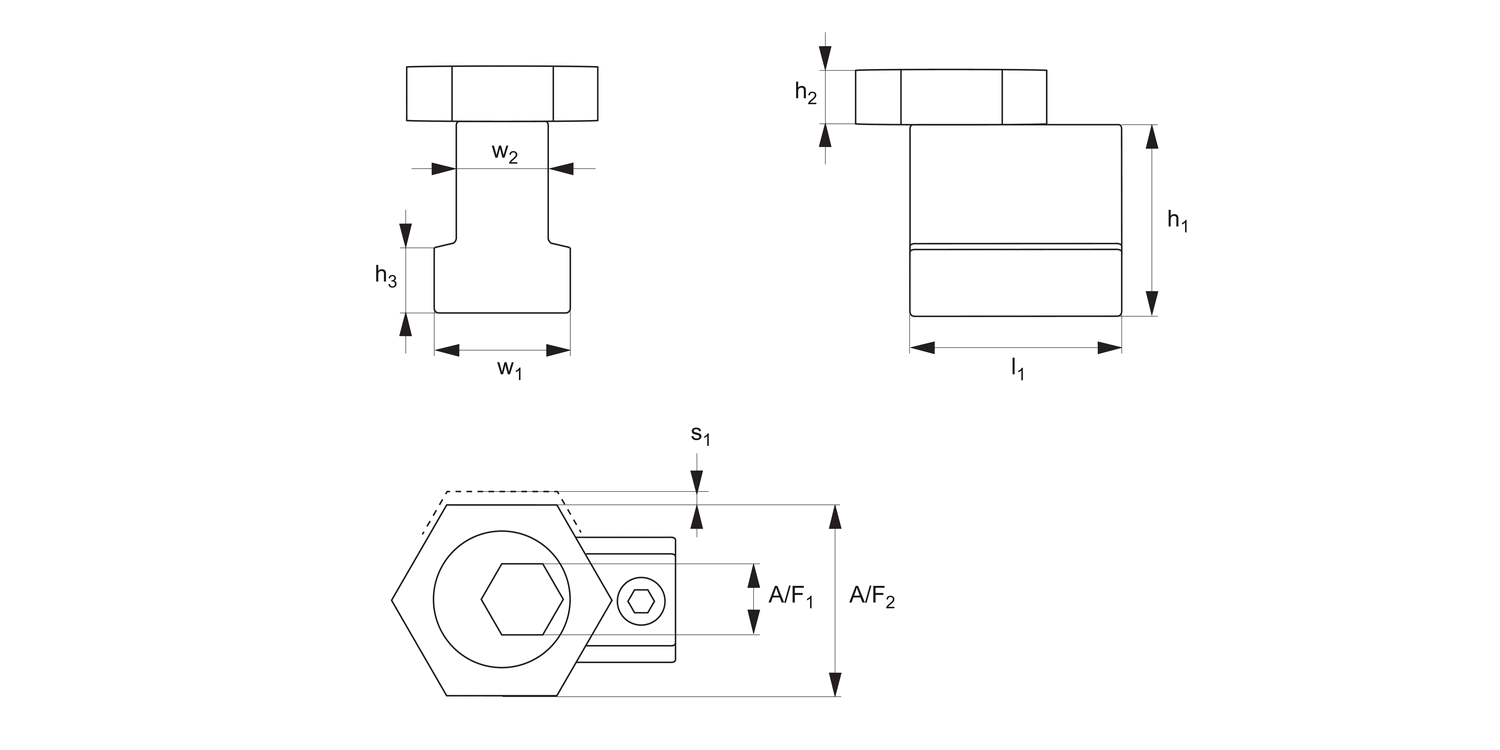

l1
27.9
h1
15.9
h2
4.8
h3
6.4
w1
15.9
w2
12
Torque to
max.
Nm
11.3
Stroke s1
1.01
A/F1
5
A/F2
20.6
Holding force
kN
3.3
£ 39.82 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 39.82 | 0% |
| 5-9 | £ 37.83 | 5% |
| 10-19 | £ 35.84 | 10% |
| 20-49 | £ 33.85 | 15% |
| 50+ | £ 29.87 | 25% |
Technical & Application
Material
Clamp: brass.
Body: steel heat treated.
Technical Notes
For use in T-slots of machine tables.
Tips
For replacement clamping screws see 12112.
Hex. key not included.
Sold in packs of 2.
Product Datasheets
CAD files
Application images
