Concealed Pivot Hinges
20mm door rtn - weld-stud
S2260 Recessed Fitting - Snap-On Easy Mount
screw mount - steel, material: Steel
£ 4.95 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 4.95 | 0% |
| 10-19 | £ 4.46 | 10% |
| 20-49 | £ 4.21 | 15% |
| 50-99 | £ 3.96 | 20% |
| 100+ | £ 3.71 | 25% |
Technical & Application
Material
Steel, nickel plated.
Technical Notes
Snap-on feature allows easy installation and removal of door panel, especially suitable for maintenance. Max. opening angle 95°.
Tips
Hinge enables opening of doors without interference with side panels and hence ideal where two doors are mounted close together.
Important Notes

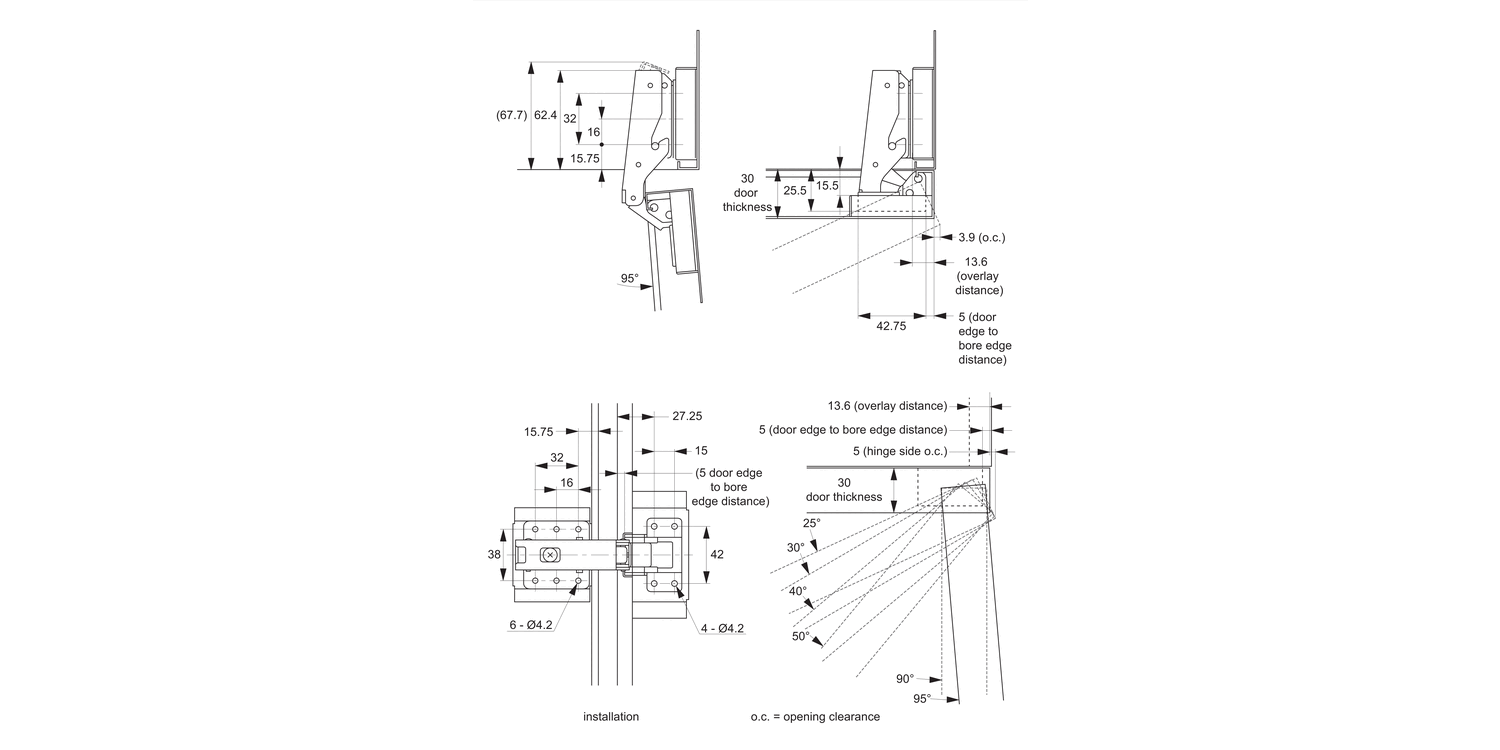

When correctly installed hinges require only a 3.9mm opening clearance between units.
