Concealed Pivot Hinges
20mm door rtn - weld-stud

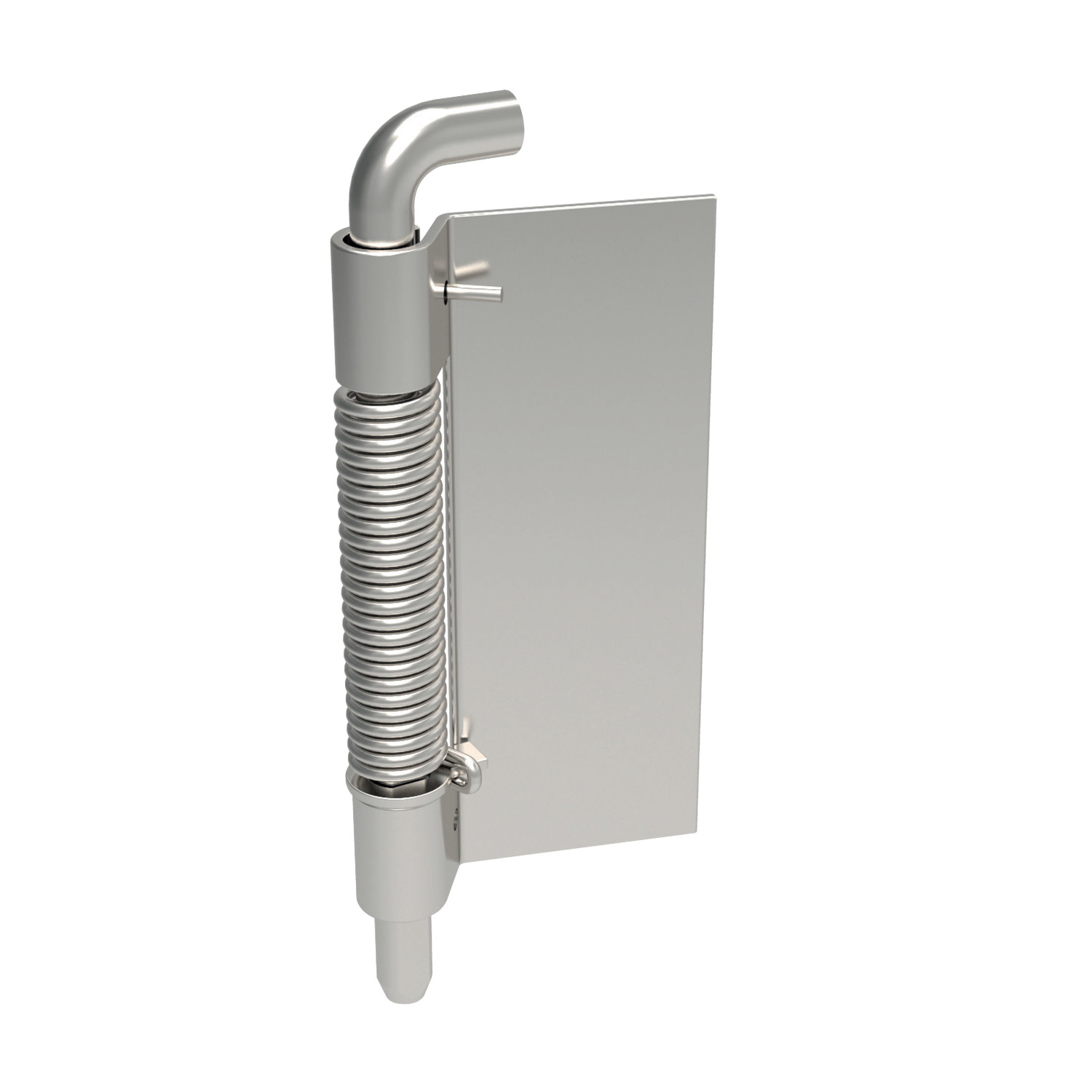

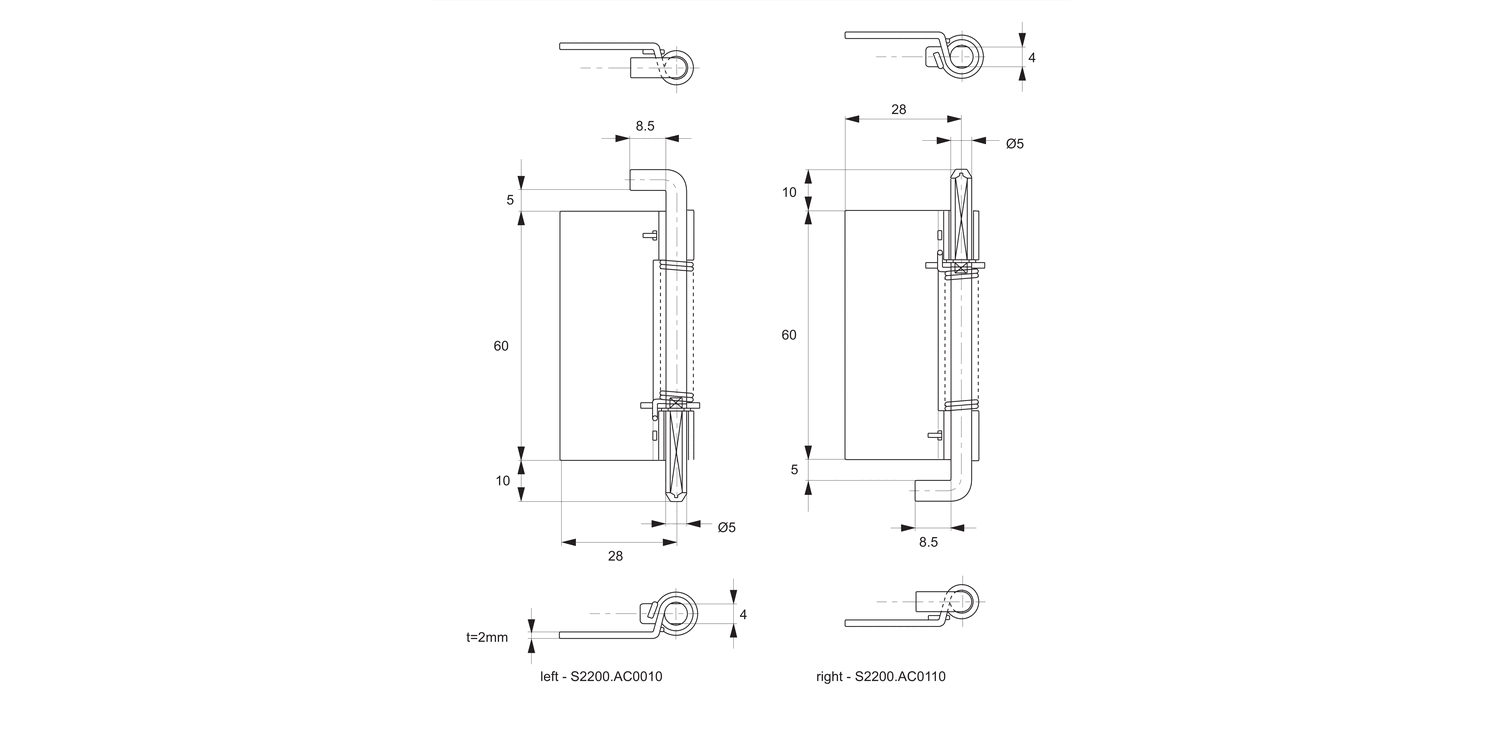

S2200 End Mount Concealed Pivot Hinge
spring loaded - weld-on - stainless steel, material: Stainless steel
Alternative products you may wish to consider
Type
Left
Weight
g
38
£ 9.70 per unit (click for quantity discounts)
Type
Right
Weight
g
38
£ 9.70 per unit (click for quantity discounts)
Type
Weight
g
| Price & Availability | Article | Type | Weight g | ||||||||||||||||||
| S2200.AC0010 | Left | 38 | |||||||||||||||||||
£ 9.70 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Left Weight
g 38 | |||||||||||||||||||||
| S2200.AC0110 | Right | 38 | |||||||||||||||||||
£ 9.70 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Right Weight
g 38 | |||||||||||||||||||||
Technical & Application
Material
Stainless steel, AISI 304.
Technical Notes
Spring loaded for self-closing.
Lift pin for easy installation and removal. Torsion moment (hinge closed): 0.76kgf/cm per piece.
Max. opening angle 100°.
Product Datasheets
Application images
