Coolant Nozzles
black eye
20024 Coolant Nozzles - Mill Jet
max. 6,7 bar, material: Acetal
Alternative products you may wish to consider

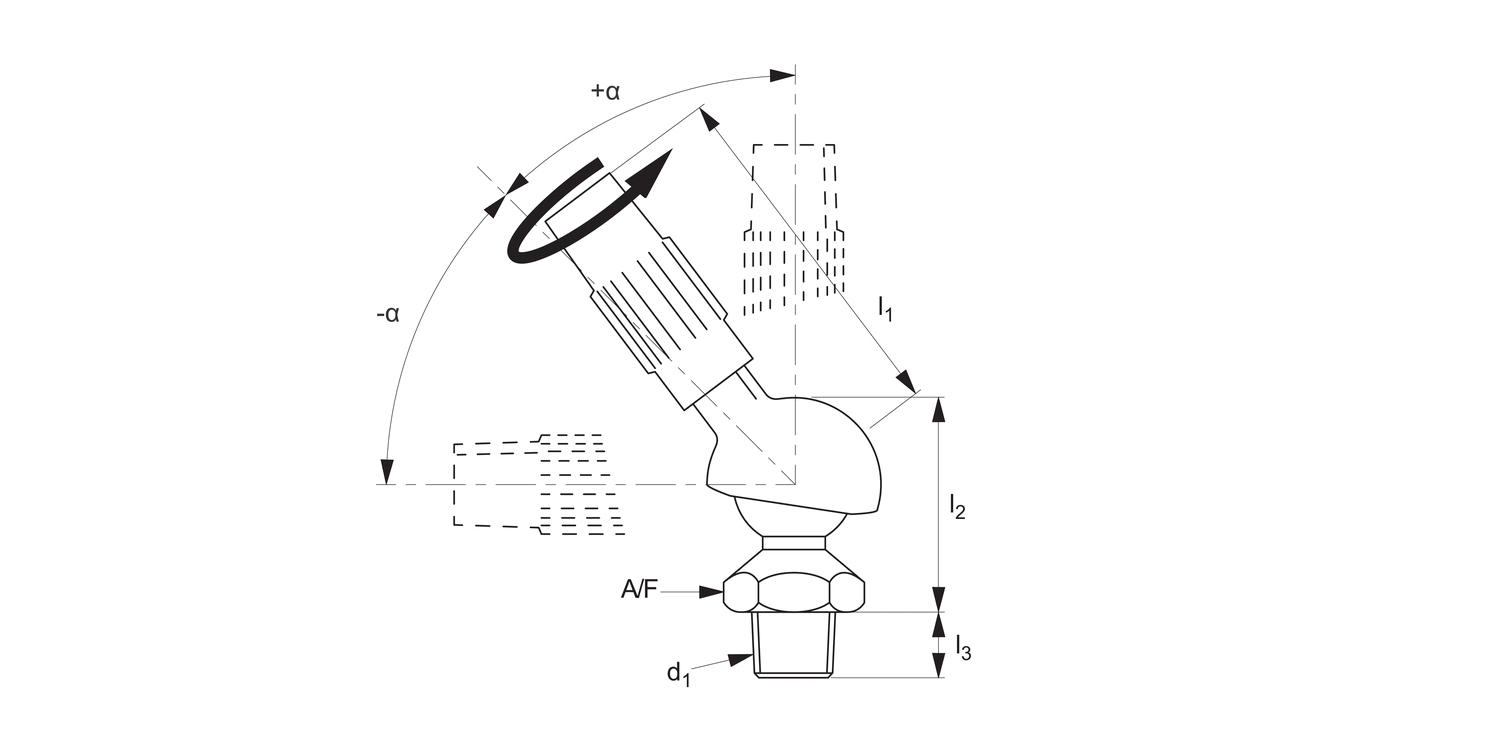

Angle
90°
Rotation
360°
d1
1/4" NPT/BSPT
l1
43
l2
27
l3
11
α
±45°
A/F
16
£ 55.53 per unit (click for quantity discounts)
Angle
90°
Rotation
360°
d1
1/8" NPT/BSPT
l1
43
l2
27
l3
11
α
±45°
A/F
16
£ 58.03 per unit (click for quantity discounts)
Angle
Rotation
d1
l1
l2
l3
α
A/F
| Price & Availability | Article | Angle | Rotation | d1 | l1 | l2 | l3 | α | A/F | ||||||||||||||||||
| 20024.W2120 | 90° | 360° | 1/4" NPT/BSPT | 43 | 27 | 11 | ±45° | 16 | |||||||||||||||||||
£ 55.53 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Angle 90° Rotation 360° d1 1/4" NPT/BSPT l1 43 l2 27 l3 11 α ±45° A/F 16 | |||||||||||||||||||||||||||
| 20024.W2250 | 90° | 360° | 1/8" NPT/BSPT | 43 | 27 | 11 | ±45° | 16 | |||||||||||||||||||
£ 58.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Angle 90° Rotation 360° d1 1/8" NPT/BSPT l1 43 l2 27 l3 11 α ±45° A/F 16 | |||||||||||||||||||||||||||
Technical & Application
Material
Acetal.
Technical Notes
Max. temperature 70°C.
Max. pressure 10 bar.
symbola/symbol is an angle of adjustment either side of centre line.
Recommended coolant filtration - 100 microns.
Tips
Adjustable spray nozzle, from full shut-off to fine spray, to direct stream.
Remains in position.
