Coolant Nozzles
black eye

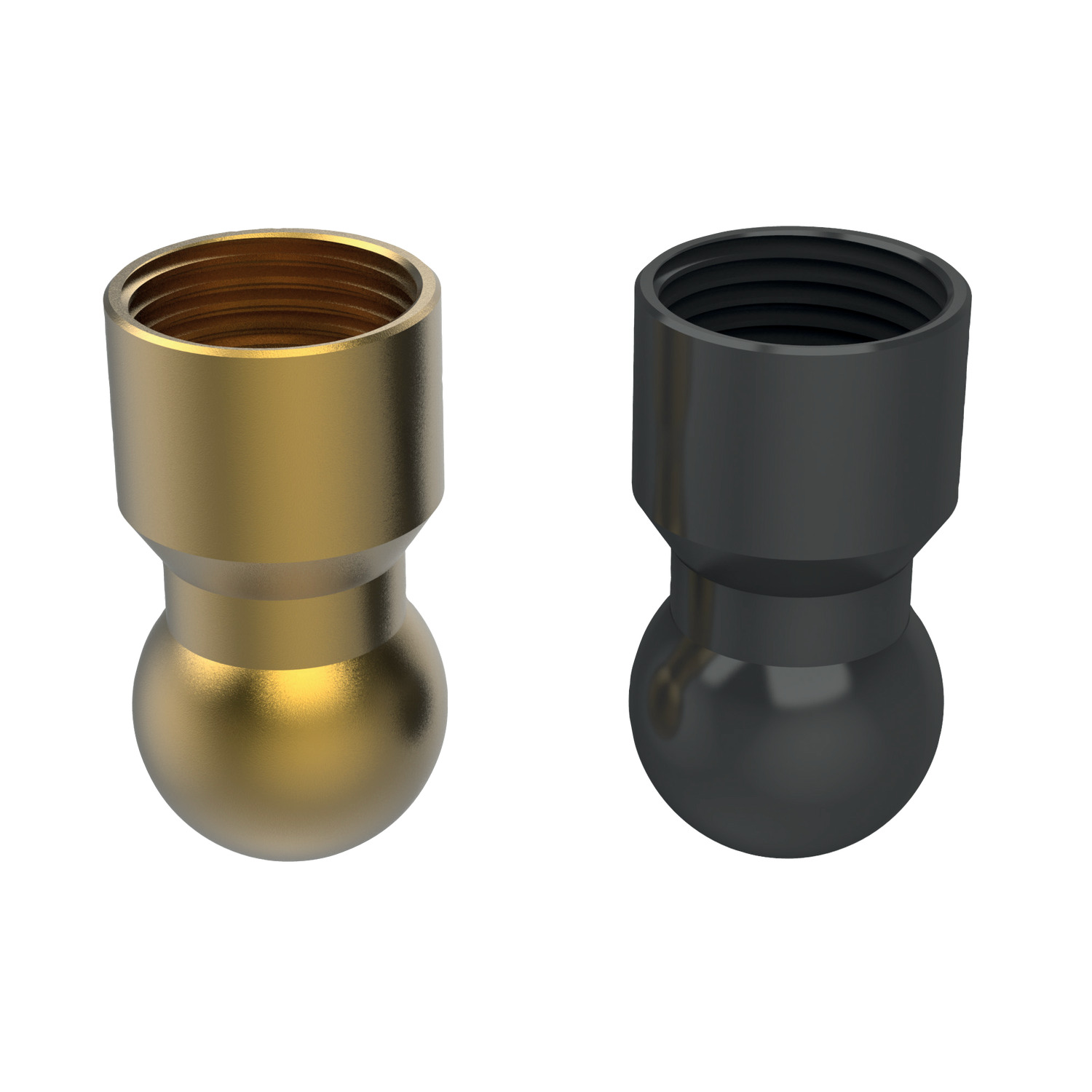

20036 Coolant Nozzles - Adapter Balls
extended - max. 10 bar, material: Acetal or Brass
Alternative products you may wish to consider
Type
Acetal

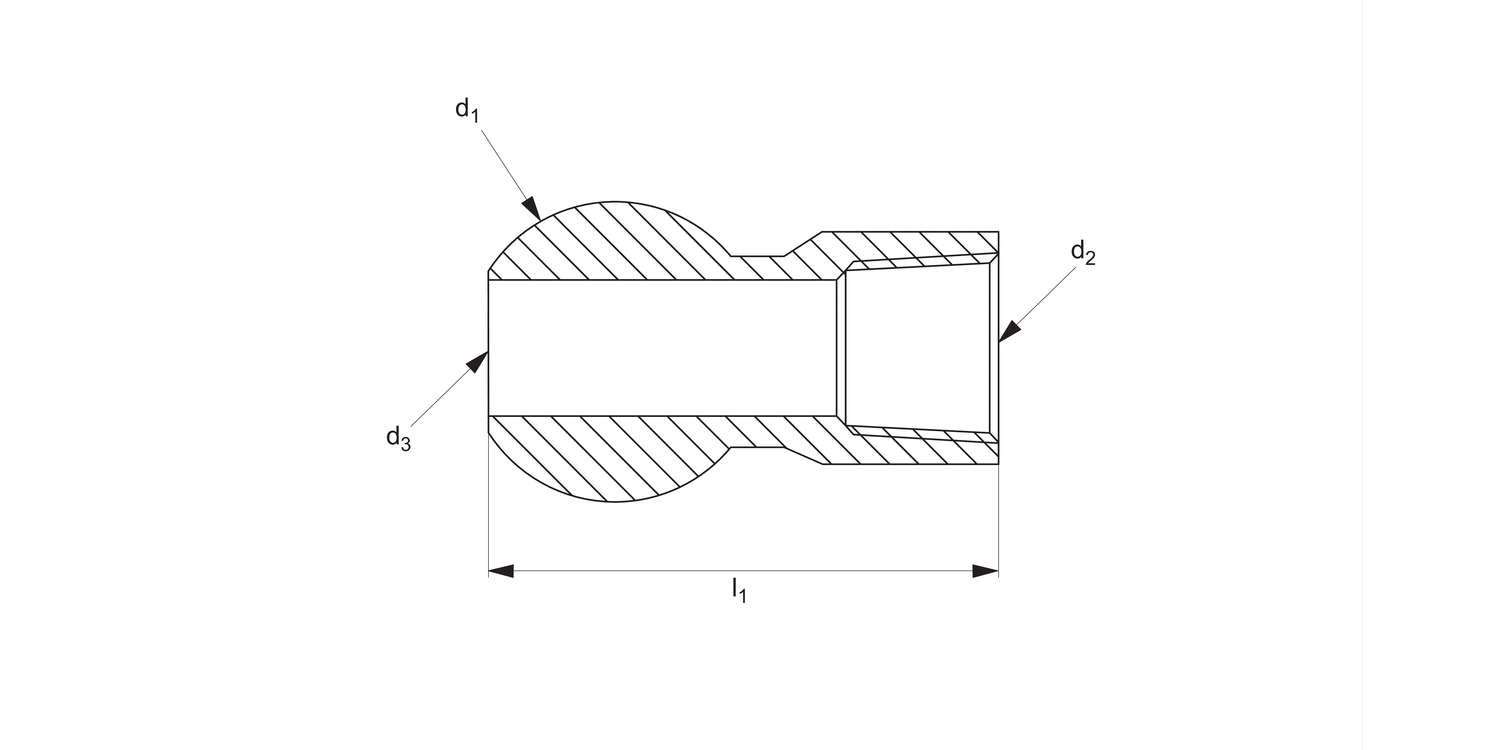

d1
12
d3
6.4
l1
23.1
Thread d2
1/8" NPT/BSPT
£ 13.44 per unit (click for quantity discounts)
Type
Acetal
d1
1/2"
d3
6.4
l1
23.9
Thread d2
1/8" NPT/BSPT
£ 13.44 per unit (click for quantity discounts)
Type
Brass
d1
12
d3
7/32" Hex.
l1
22.9
Thread d2
1/8" NPT/BSPT
£ 18.20 per unit (click for quantity discounts)
Type
Brass
d1
1/2"
d3
7/32" Hex.
l1
23.9
Thread d2
1/8" NPT/BSPT
£ 19.88 per unit (click for quantity discounts)
Type
d1
d3
l1
Thread d2
| Price & Availability | Article | Type | d1 | d3 | l1 | Thread d2 | ||||||||||||||||||
| 20036.W6120-A | Acetal | 12 | 6.4 | 23.1 | 1/8" NPT/BSPT | |||||||||||||||||||
£ 13.44 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Acetal d1 12 d3 6.4 l1 23.1 Thread d2 1/8" NPT/BSPT | ||||||||||||||||||||||||
| 20036.W8500-A | Acetal | 1/2" | 6.4 | 23.9 | 1/8" NPT/BSPT | |||||||||||||||||||
£ 13.44 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Acetal d1 1/2" d3 6.4 l1 23.9 Thread d2 1/8" NPT/BSPT | ||||||||||||||||||||||||
| 20036.W6120-B | Brass | 12 | 7/32" Hex. | 22.9 | 1/8" NPT/BSPT | |||||||||||||||||||
£ 18.20 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Brass d1 12 d3 7/32" Hex. l1 22.9 Thread d2 1/8" NPT/BSPT | ||||||||||||||||||||||||
| 20036.W8500-B | Brass | 1/2" | 7/32" Hex. | 23.9 | 1/8" NPT/BSPT | |||||||||||||||||||
£ 19.88 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Brass d1 1/2" d3 7/32" Hex. l1 23.9 Thread d2 1/8" NPT/BSPT | ||||||||||||||||||||||||
Technical & Application
Material
Acetal or brass.
Technical Notes
Acetal type:
Max. temp: 70ºC.
Max. pressure: 10 bar.
Brass type:
Max. temperature: 150ºC.
Max. pressure: 33 bar.
Extended ball adapter only.
Tips
Can be fitted to 1/8" NPT/BSPT fittings.
Product Datasheets
CAD files

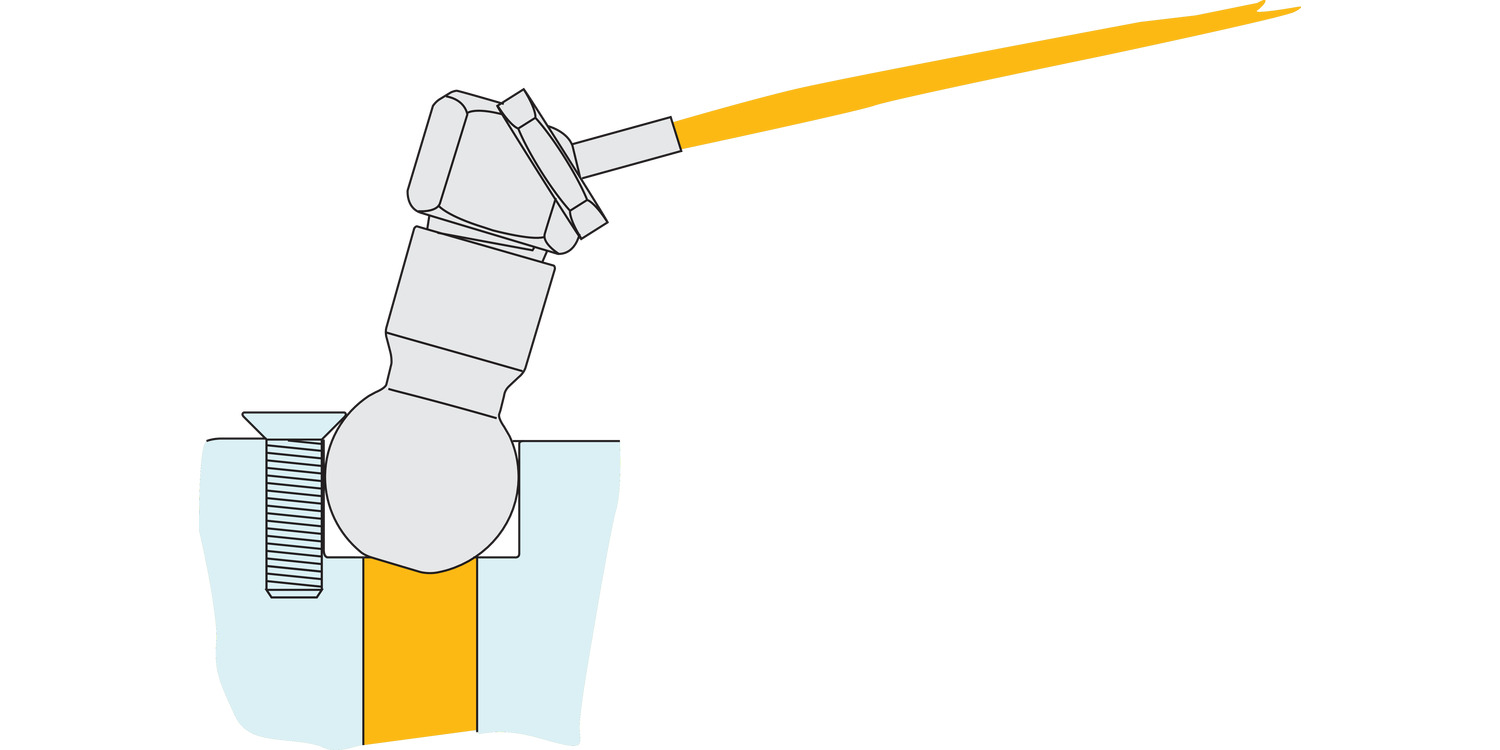

Application images
