20032 Coolant Nozzles - Cap Jet
with tube - max. 10 bar, material: Acetal
Alternative products you may wish to consider

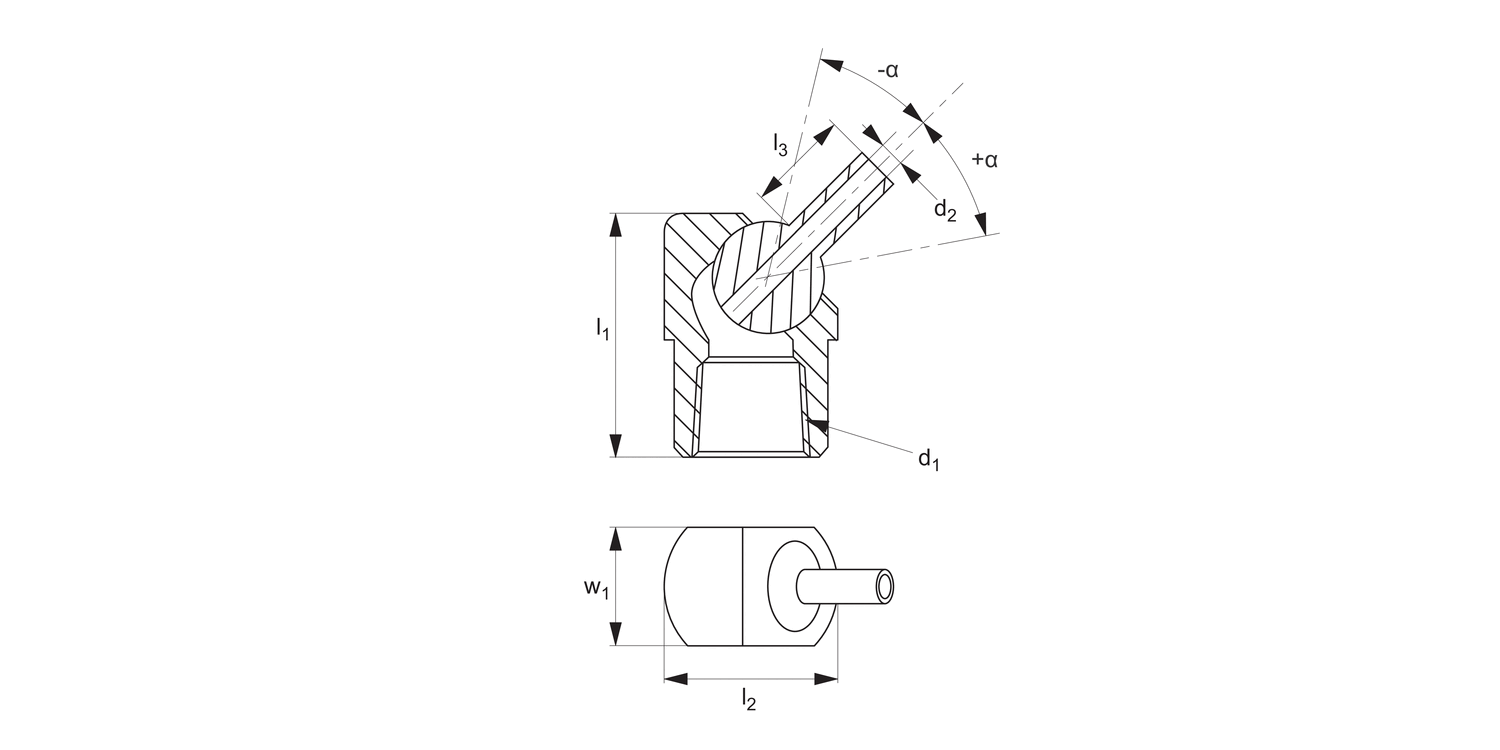

d1
1/8" NPT/BSPT
d2
2.8
l1
20.8
l2
16.0
l3
6.4
w1
12.7
α
±35°
£ 26.71 per unit (click for quantity discounts)
d1
1/8" NPT/BSPT
d2
2.8
l1
20.8
l2
16.0
l3
12.7
w1
12.7
α
±35°
£ 27.71 per unit (click for quantity discounts)
d1
1/8" NPT/BSPT
d2
2.8
l1
20.8
l2
16.0
l3
31.7
w1
12.7
α
±35°
£ 29.78 per unit (click for quantity discounts)
d1
1/8" NPT/BSPT
d2
4.0
l1
20.8
l2
16.0
l3
12.7
w1
12.7
α
±35°
£ 28.41 per unit (click for quantity discounts)
d1
1/8" NPT/BSPT
d2
4.0
l1
20.8
l2
16.0
l3
31.7
w1
12.7
α
±35°
£ 31.52 per unit (click for quantity discounts)
d1
1/4" NPT/BSPT
d2
2.8
l1
23.9
l2
19.1
l3
6.4
w1
16.0
α
±35°
£ 27.71 per unit (click for quantity discounts)
d1
1/4" NPT/BSPT
d2
2.8
l1
23.9
l2
19.1
l3
12.7
w1
16.0
α
±35°
£ 28.75 per unit (click for quantity discounts)
d1
1/4" NPT/BSPT
d2
2.8
l1
23.9
l2
19.1
l3
31.7
w1
16.0
α
±35°
£ 30.82 per unit (click for quantity discounts)
d1
1/4" NPT/BSPT
d2
4.0
l1
23.9
l2
19.1
l3
12.7
w1
16.0
α
±35°
£ 29.45 per unit (click for quantity discounts)
d1
1/4" NPT/BSPT
d2
4.0
l1
23.9
l2
19.1
l3
31.7
w1
16.0
α
±35°
£ 32.55 per unit (click for quantity discounts)
d1
3/8" NPT/BSPT
d2
4.0
l1
28.7
l2
22.4
l3
31.7
w1
19.1
α
±35°
£ 30.15 per unit (click for quantity discounts)
d1
3/8" NPT/BSPT
d2
4.0
l1
28.7
l2
22.4
l3
12.7
w1
19.1
α
±35°
£ 33.23 per unit (click for quantity discounts)
d1
3/8" NPT/BSPT
d2
5.6
l1
28.7
l2
22.4
l3
12.7
w1
19.1
α
±35°
£ 30.15 per unit (click for quantity discounts)
d1
3/8" NPT/BSPT
d2
5.6
l1
28.7
l2
22.4
l3
31.7
w1
19.1
α
±35°
£ 33.23 per unit (click for quantity discounts)
d1
d2
l1
l2
l3
w1
α
| Price & Availability | Article | d1 | d2 | l1 | l2 | l3 | w1 | α | ||||||||||||||||||
| 20032.W2120 | 1/8" NPT/BSPT | 2.8 | 20.8 | 16.0 | 6.4 | 12.7 | ±35° | |||||||||||||||||||
£ 26.71 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 1/8" NPT/BSPT d2 2.8 l1 20.8 l2 16.0 l3 6.4 w1 12.7 α ±35° | ||||||||||||||||||||||||||
| 20032.W2121 | 1/8" NPT/BSPT | 2.8 | 20.8 | 16.0 | 12.7 | 12.7 | ±35° | |||||||||||||||||||
£ 27.71 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 1/8" NPT/BSPT d2 2.8 l1 20.8 l2 16.0 l3 12.7 w1 12.7 α ±35° | ||||||||||||||||||||||||||
| 20032.W2122 | 1/8" NPT/BSPT | 2.8 | 20.8 | 16.0 | 31.7 | 12.7 | ±35° | |||||||||||||||||||
£ 29.78 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 1/8" NPT/BSPT d2 2.8 l1 20.8 l2 16.0 l3 31.7 w1 12.7 α ±35° | ||||||||||||||||||||||||||
| 20032.W2123 | 1/8" NPT/BSPT | 4.0 | 20.8 | 16.0 | 12.7 | 12.7 | ±35° | |||||||||||||||||||
£ 28.41 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 1/8" NPT/BSPT d2 4.0 l1 20.8 l2 16.0 l3 12.7 w1 12.7 α ±35° | ||||||||||||||||||||||||||
| 20032.W2124 | 1/8" NPT/BSPT | 4.0 | 20.8 | 16.0 | 31.7 | 12.7 | ±35° | |||||||||||||||||||
£ 31.52 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 1/8" NPT/BSPT d2 4.0 l1 20.8 l2 16.0 l3 31.7 w1 12.7 α ±35° | ||||||||||||||||||||||||||
| 20032.W2250 | 1/4" NPT/BSPT | 2.8 | 23.9 | 19.1 | 6.4 | 16.0 | ±35° | |||||||||||||||||||
£ 27.71 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 1/4" NPT/BSPT d2 2.8 l1 23.9 l2 19.1 l3 6.4 w1 16.0 α ±35° | ||||||||||||||||||||||||||
| 20032.W2251 | 1/4" NPT/BSPT | 2.8 | 23.9 | 19.1 | 12.7 | 16.0 | ±35° | |||||||||||||||||||
£ 28.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 1/4" NPT/BSPT d2 2.8 l1 23.9 l2 19.1 l3 12.7 w1 16.0 α ±35° | ||||||||||||||||||||||||||
| 20032.W2252 | 1/4" NPT/BSPT | 2.8 | 23.9 | 19.1 | 31.7 | 16.0 | ±35° | |||||||||||||||||||
£ 30.82 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 1/4" NPT/BSPT d2 2.8 l1 23.9 l2 19.1 l3 31.7 w1 16.0 α ±35° | ||||||||||||||||||||||||||
| 20032.W2253 | 1/4" NPT/BSPT | 4.0 | 23.9 | 19.1 | 12.7 | 16.0 | ±35° | |||||||||||||||||||
£ 29.45 per unit (click for quantity discounts) Ready to despatch 13 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 1/4" NPT/BSPT d2 4.0 l1 23.9 l2 19.1 l3 12.7 w1 16.0 α ±35° | ||||||||||||||||||||||||||
| 20032.W2254 | 1/4" NPT/BSPT | 4.0 | 23.9 | 19.1 | 31.7 | 16.0 | ±35° | |||||||||||||||||||
£ 32.55 per unit (click for quantity discounts) Ready to despatch 20 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 1/4" NPT/BSPT d2 4.0 l1 23.9 l2 19.1 l3 31.7 w1 16.0 α ±35° | ||||||||||||||||||||||||||
| 20032.W2370 | 3/8" NPT/BSPT | 4.0 | 28.7 | 22.4 | 31.7 | 19.1 | ±35° | |||||||||||||||||||
£ 30.15 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 3/8" NPT/BSPT d2 4.0 l1 28.7 l2 22.4 l3 31.7 w1 19.1 α ±35° | ||||||||||||||||||||||||||
| 20032.W2371 | 3/8" NPT/BSPT | 4.0 | 28.7 | 22.4 | 12.7 | 19.1 | ±35° | |||||||||||||||||||
£ 33.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 3/8" NPT/BSPT d2 4.0 l1 28.7 l2 22.4 l3 12.7 w1 19.1 α ±35° | ||||||||||||||||||||||||||
| 20032.W2372 | 3/8" NPT/BSPT | 5.6 | 28.7 | 22.4 | 12.7 | 19.1 | ±35° | |||||||||||||||||||
£ 30.15 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 3/8" NPT/BSPT d2 5.6 l1 28.7 l2 22.4 l3 12.7 w1 19.1 α ±35° | ||||||||||||||||||||||||||
| 20032.W2373 | 3/8" NPT/BSPT | 5.6 | 28.7 | 22.4 | 31.7 | 19.1 | ±35° | |||||||||||||||||||
£ 33.23 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 3/8" NPT/BSPT d2 5.6 l1 28.7 l2 22.4 l3 31.7 w1 19.1 α ±35° | ||||||||||||||||||||||||||
Technical & Application
Material
Body: acetal.
Ball and tube: stainless steel.
Technical Notes
Max. temperature 70ºC.
Max. pressure 10 bar.
symbola/symbol is an angle of adjustment either side of centre line.
Can be used with brass connector 20034.
Tips
Screws onto any NPT or BSPT pipe.
Choose large orifice for maximum flow and smaller orifices when using multiple nozzles.
Choose tapped tube if the nozzles needs to be plugged (set screw included).
