Coolant Nozzles
black eye
20020 Coolant Nozzles - Plug Jet
max. 10 bar, material: Acetal
Alternative products you may wish to consider

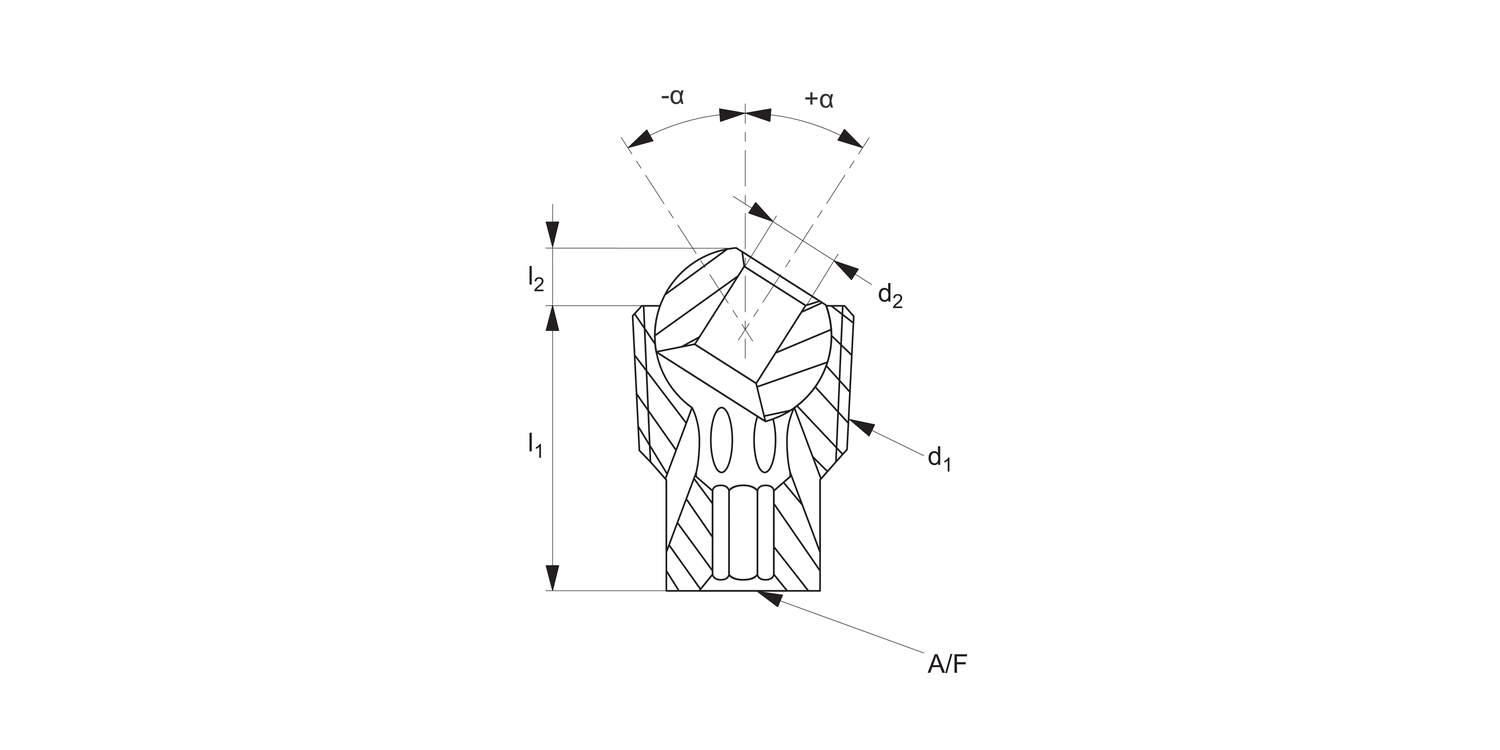

d1
1/8" NPT
d2
4.0
l1
12.7
l2
3.0
α
±35°
A/F
9/64"
£ 21.64 per unit (click for quantity discounts)
d1
1/8" BSPT
d2
4.0
l1
12.7
l2
3.0
α
±35°
A/F
9/64"
£ 24.16 per unit (click for quantity discounts)
d1
1/4" NPT/BSPT
d2
4.0
l1
15.7
l2
3.8
α
±40°
A/F
9/64"
£ 22.76 per unit (click for quantity discounts)
d1
3/8" NPT/BSPT
d2
5.6
l1
19.1
l2
4.6
α
±40°
A/F
3/16"
£ 24.05 per unit (click for quantity discounts)
d1
d2
l1
l2
α
A/F
| Price & Availability | Article | d1 | d2 | l1 | l2 | α | A/F | ||||||||||||||||||
| 20020.W2121 | 1/8" NPT | 4.0 | 12.7 | 3.0 | ±35° | 9/64" | |||||||||||||||||||
£ 21.64 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 1/8" NPT d2 4.0 l1 12.7 l2 3.0 α ±35° A/F 9/64" | |||||||||||||||||||||||||
| 20020.W2122 | 1/8" BSPT | 4.0 | 12.7 | 3.0 | ±35° | 9/64" | |||||||||||||||||||
£ 24.16 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 1/8" BSPT d2 4.0 l1 12.7 l2 3.0 α ±35° A/F 9/64" | |||||||||||||||||||||||||
| 20020.W2250 | 1/4" NPT/BSPT | 4.0 | 15.7 | 3.8 | ±40° | 9/64" | |||||||||||||||||||
£ 22.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 1/4" NPT/BSPT d2 4.0 l1 15.7 l2 3.8 α ±40° A/F 9/64" | |||||||||||||||||||||||||
| 20020.W2370 | 3/8" NPT/BSPT | 5.6 | 19.1 | 4.6 | ±40° | 3/16" | |||||||||||||||||||
£ 24.05 per unit (click for quantity discounts) Ready to despatch 15 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 3/8" NPT/BSPT d2 5.6 l1 19.1 l2 4.6 α ±40° A/F 3/16" | |||||||||||||||||||||||||
Technical & Application
Material
Body: acetal.
Ball: stainless steel.
Technical Notes
Max. temperature 70°C.
Max. pressure 10 bar.
symbola/symbol is an angle of adjustment either side of centre line.
Tips
Screw-in, flush mount coolant nozzles.
Insert hex. key (provided), into the top of the nozzle until it engages with the hex. socket. Screw in until the body is flush.
