Coolant Nozzles
black eye
20044 Coolant Nozzles - Press Fit
max. 10 bar, material: Acetal
Alternative products you may wish to consider
d1
tol. h9
8
d2
M 3,5x0,60
l1
6
l2
1.5
α
±35°
£ 17.99 per unit (click for quantity discounts)
d1
tol. h9
10
d2
M 4,0x0,70
l1
7
l2
2.0
α
±35°
£ 17.99 per unit (click for quantity discounts)
d1
tol. h9
12
d2
M 5,0x0,80
l1
8
l2
2.5
α
±35°
£ 18.79 per unit (click for quantity discounts)
d1
tol. h9
14
d2
M 6,0x1,00
l1
10
l2
3.0
α
±35°
£ 20.96 per unit (click for quantity discounts)
d1
tol. h9
15
d2
M 6,0x1,00
l1
6
l2
3.0
α
±35°
£ 20.96 per unit (click for quantity discounts)
d1
tol. h9
16
d2
M 8,0x1,25
l1
10
l2
3.0
α
±35°
£ 23.46 per unit (click for quantity discounts)
d1
tol. h9
d2
l1
l2
α
| Price & Availability | Article | d1 tol. h9 | d2 | l1 | l2 | α | ||||||||||||||||||
| 20044.W6080 | 8 | M 3,5x0,60 | 6 | 1.5 | ±35° | |||||||||||||||||||
£ 17.99 per unit (click for quantity discounts) Ready to despatch 34 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 8 d2 M 3,5x0,60 l1 6 l2 1.5 α ±35° | ||||||||||||||||||||||||
| 20044.W6100 | 10 | M 4,0x0,70 | 7 | 2.0 | ±35° | |||||||||||||||||||
£ 17.99 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 10 d2 M 4,0x0,70 l1 7 l2 2.0 α ±35° | ||||||||||||||||||||||||
| 20044.W6120 | 12 | M 5,0x0,80 | 8 | 2.5 | ±35° | |||||||||||||||||||
£ 18.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 12 d2 M 5,0x0,80 l1 8 l2 2.5 α ±35° | ||||||||||||||||||||||||
| 20044.W6140 | 14 | M 6,0x1,00 | 10 | 3.0 | ±35° | |||||||||||||||||||
£ 20.96 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 14 d2 M 6,0x1,00 l1 10 l2 3.0 α ±35° | ||||||||||||||||||||||||
| 20044.W6150 | 15 | M 6,0x1,00 | 6 | 3.0 | ±35° | |||||||||||||||||||
£ 20.96 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 15 d2 M 6,0x1,00 l1 6 l2 3.0 α ±35° | ||||||||||||||||||||||||
| 20044.W6160 | 16 | M 8,0x1,25 | 10 | 3.0 | ±35° | |||||||||||||||||||
£ 23.46 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1
tol. h9 16 d2 M 8,0x1,25 l1 10 l2 3.0 α ±35° | ||||||||||||||||||||||||
Technical & Application
Material
Body: acetal.
Ball: stainless steel.
Technical Notes
Max. temperature: 70ºC.
Max. pressure: 10 bar.

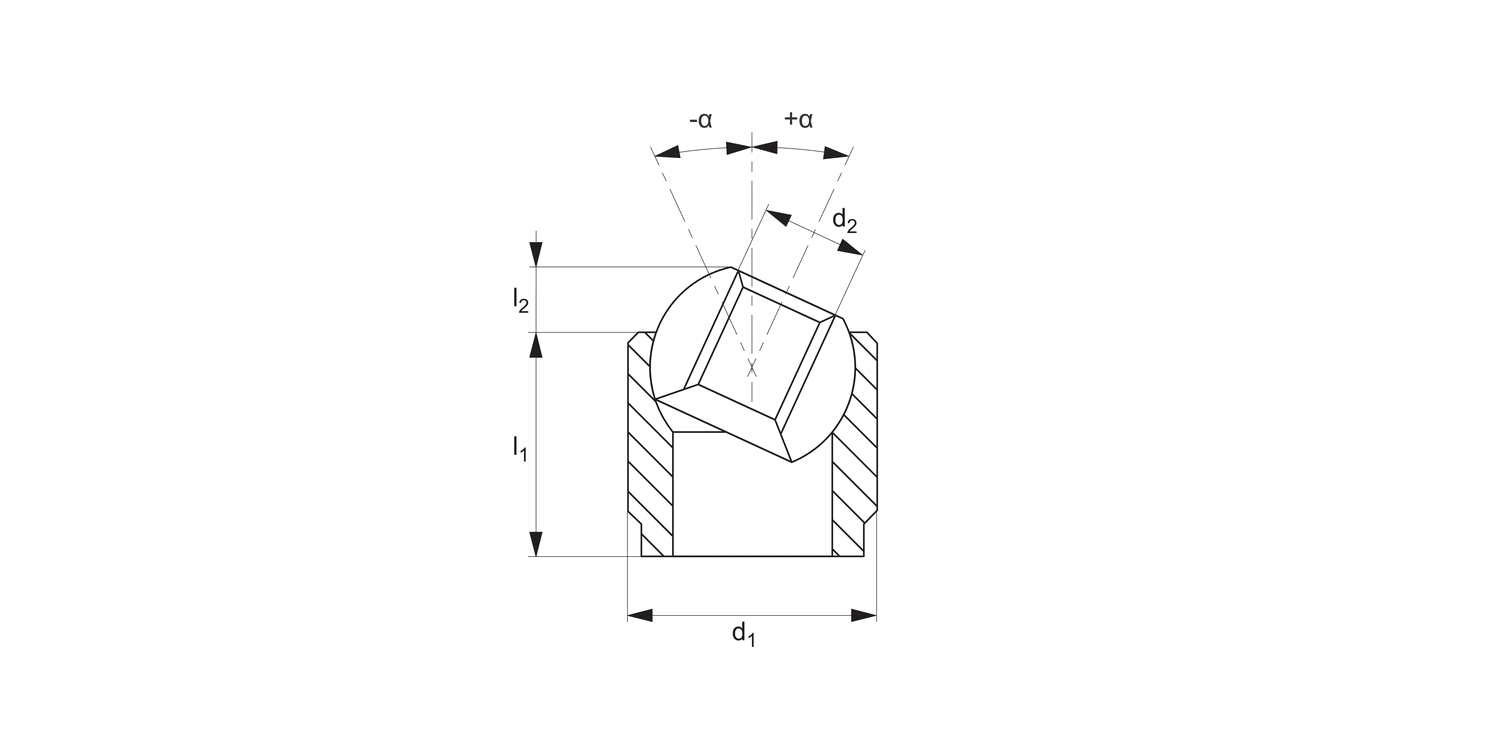

symbola/symbol is an angle of adjustment either side of centre line.
Tips
Simply drill and ream hole (to H9) then press in the coolant nozzle until the body is flush.
The threaded hole in the top of the nozzle can be used for an extension tube (20020), a spray tip (20080 or 20082) or plugged with a set screw.
Product Datasheets
CAD files

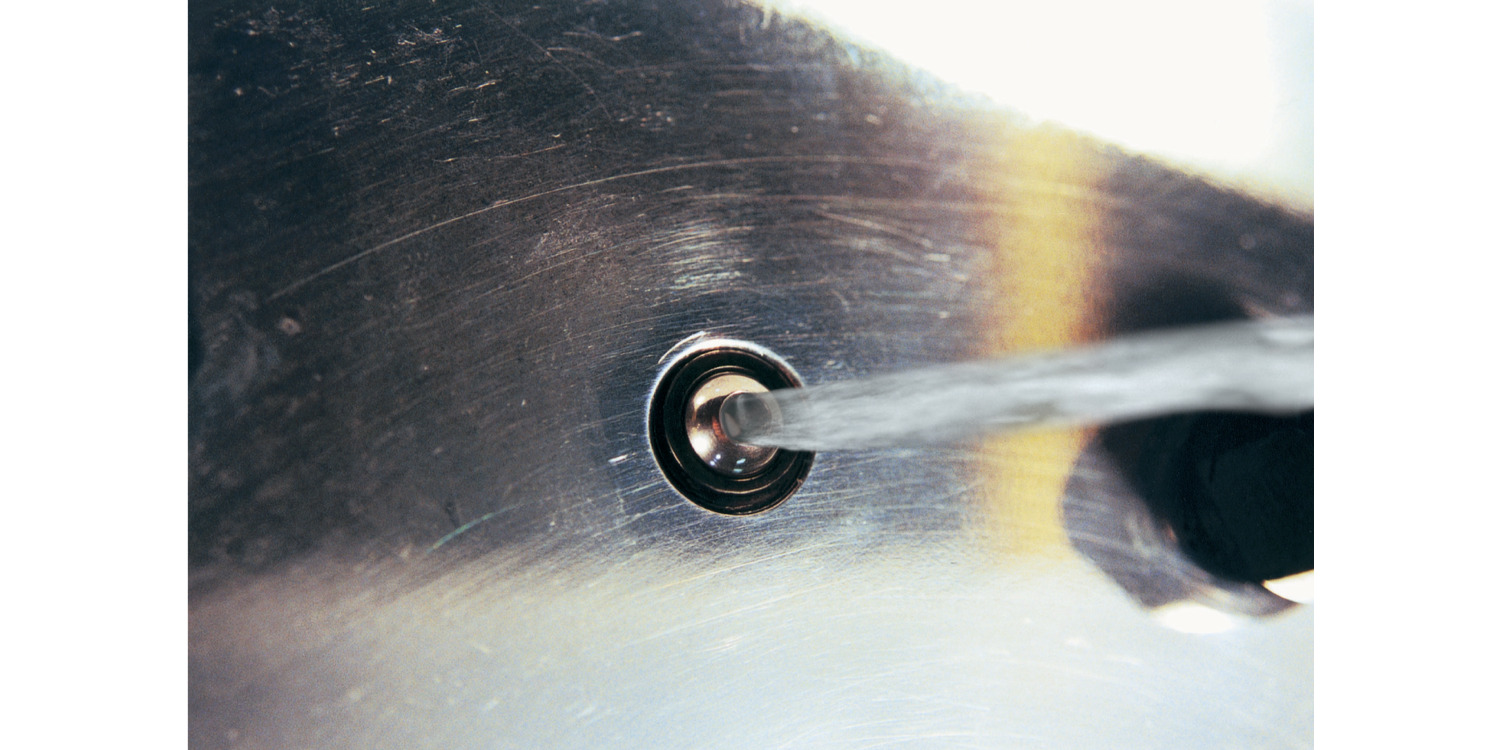

Application images
