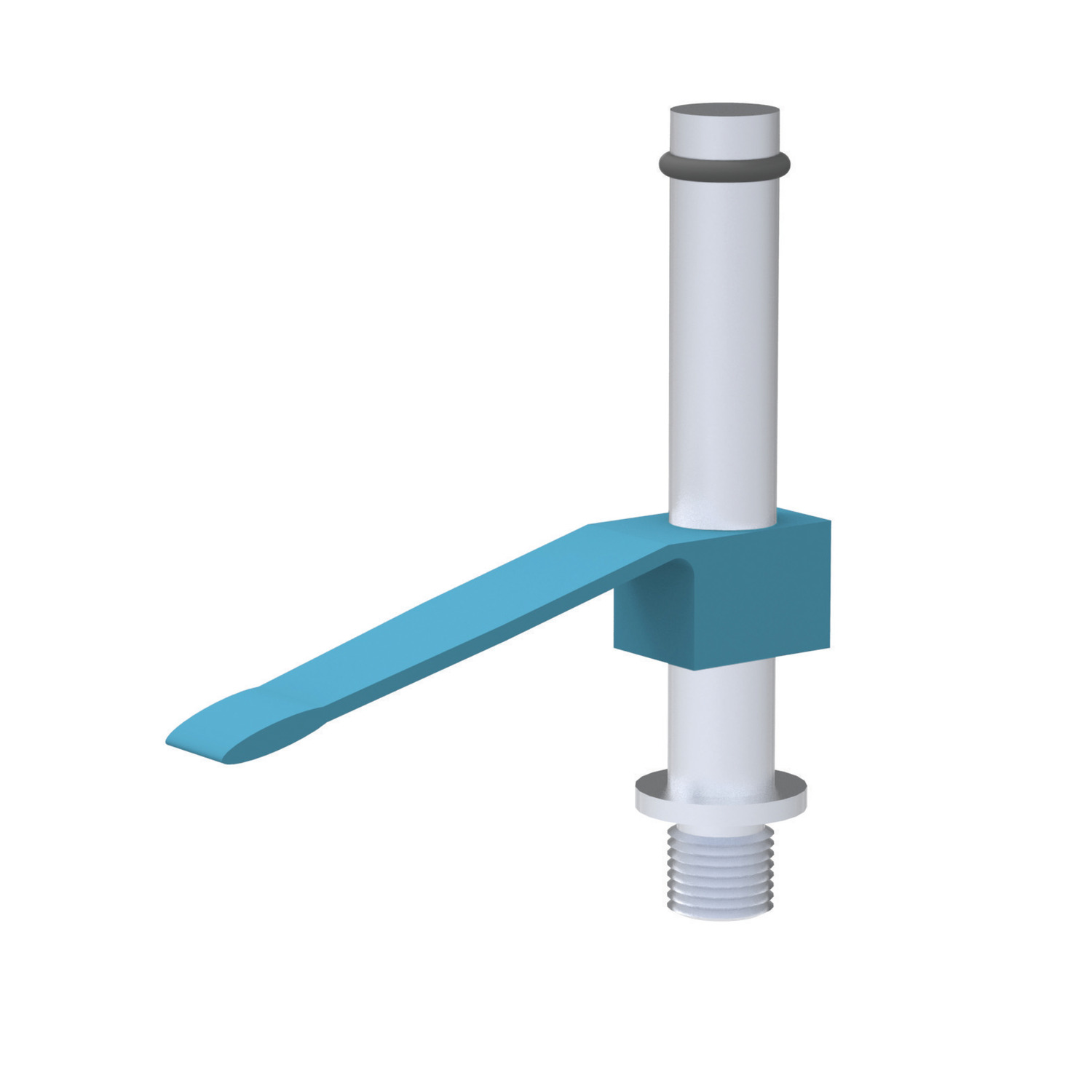

19320 CMM Soft Touch Clamps

M 8 threads, material: Aluminium

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

CMM Soft Touch Clamps
M 8 threads

CMM Fixturing Toggle Clamp
with mounting plate

CMM Fixturing Stops
Steel

CMM Fixturing Stops
M 8 threads

CMM Fixturing Stand offs
M 8 threads

CMM Fixturing Stand off
with pin

CMM Fixturing Positioning Cones
M 8 threads

CMM Fixturing Magnetic Stand off
M 8 threads

CMM Fixturing Magnetic Rest Buttons
M 8 threads

CMM Fixturing Magnetic Stand off
with pin, for M 8 threads

CMM Fixturing Magnetic Vee Stand-off
for M 8 threads

CMM Fixturing Magnetic Vee Blocks

CMM Fixturing Adjustable Stand-off

CMM Fixturing Screws Jacks
M 8 threads

CMM Fixturing Adjustable Positioners
M 8 threads

CMM Swivel Joint
M 8 threads

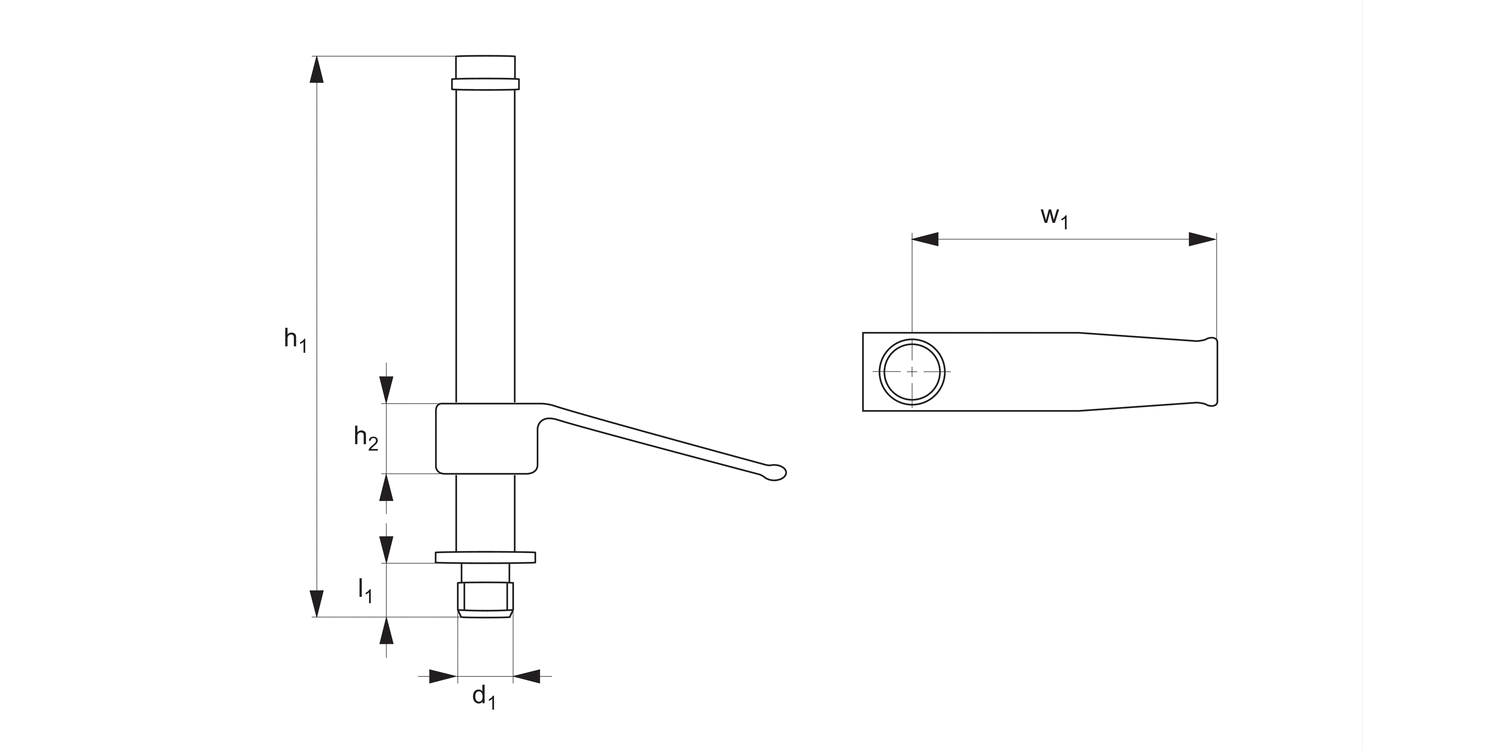

Soft Touch Clamps - Al. Standard - 39,0 - 8 - 6,37

19320.W0008

Type

Standard

d₁

M 8

h₁

75

h₂

8

l₁

6.37

w₁

39.0

Weight g

68

£ 86.21 per unit (click for quantity discounts)

Soft Touch Clamps - Al. Standard - 58,7 - 12 - 6,37

19320.W0012

Type

Standard

d₁

M 8

h₁

75

h₂

12

l₁

6.37

w₁

58.7

Weight g

92

£ 93.51 per unit (click for quantity discounts)

Soft Touch Clamps - Al. Rubber Coated Tip - 39,0 - 8 - 6,37

19320.W0108

Type

Rubber coated tip

d₁

M 8

h₁

75

h₂

8

l₁

6.37

w₁

39.0

Weight g

68

£ 93.51 per unit (click for quantity discounts)

Soft Touch Clamps - Al. Rubber Coated Tip - 58,7 - 12 - 6,37

19320.W0112

Type

Rubber coated tip

d₁

M 8

h₁

75

h₂

12

l₁

6.37

w₁

58.7

Weight g

92

£ 103.04 per unit (click for quantity discounts)

Soft Touch Clamps - Al. Standard - 39,0 - 8 - 6,37

19320.W0008

Type

Standard

d₁

M 8

h₁

75

h₂

8

l₁

6.37

w₁

39.0

Weight g

68

£ 86.21 per unit (click for quantity discounts)

Soft Touch Clamps - Al. Standard - 58,7 - 12 - 6,37

19320.W0012

Type

Standard

d₁

M 8

h₁

75

h₂

12

l₁

6.37

w₁

58.7

Weight g

92

£ 93.51 per unit (click for quantity discounts)

Soft Touch Clamps - Al. Rubber Coated Tip - 39,0 - 8 - 6,37

19320.W0108

Type

Rubber coated tip

d₁

M 8

h₁

75

h₂

8

l₁

6.37

w₁

39.0

Weight g

68

£ 93.51 per unit (click for quantity discounts)

Soft Touch Clamps - Al. Rubber Coated Tip - 58,7 - 12 - 6,37

19320.W0112

Type

Rubber coated tip

d₁

M 8

h₁

75

h₂

12

l₁

6.37

w₁

58.7

Weight g

92

£ 103.04 per unit (click for quantity discounts)



Select all

Type

d₁

h₁

h₂

l₁

w₁

Weight g

Price & Availability	Article	Type	d1	h1	h2	l1	w1	Weight g
	19320.W0008	Standard	M 8	75	8	6.37	39.0	68
£ 86.21 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 86.21 0% 5-9 £ 81.90 5% 10-19 £ 77.59 10% 20-49 £ 73.28 15% 50+ £ 64.66 25% Type Standard d1 M 8 h1 75 h2 8 l1 6.37 w1 39.0 Weight g 68 more info »
	19320.W0012	Standard	M 8	75	12	6.37	58.7	92
£ 93.51 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 93.51 0% 5-9 £ 88.83 5% 10-19 £ 84.16 10% 20-49 £ 79.48 15% 50+ £ 70.13 25% Type Standard d1 M 8 h1 75 h2 12 l1 6.37 w1 58.7 Weight g 92 more info »
	19320.W0108	Rubber coated tip	M 8	75	8	6.37	39.0	68
£ 93.51 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 93.51 0% 5-9 £ 88.83 5% 10-19 £ 84.16 10% 20-49 £ 79.48 15% 50+ £ 70.13 25% Type Rubber coated tip d1 M 8 h1 75 h2 8 l1 6.37 w1 39.0 Weight g 68 more info »
	19320.W0112	Rubber coated tip	M 8	75	12	6.37	58.7	92
£ 103.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 103.04 0% 5-9 £ 97.89 5% 10-19 £ 92.74 10% 20-49 £ 87.58 15% 50+ £ 77.28 25% Type Rubber coated tip d1 M 8 h1 75 h2 12 l1 6.37 w1 58.7 Weight g 92 more info »
